Polishing Engineering Plastics Robot Linear Track / Grinding Robot Rail System

Place of Origin China
Brand Name TJ
Certification ISO9001:2008,ISO14001:2004
Model Number TJS XX SXXX VXX AXX LX EX X
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details non wooden box
Delivery Time 6~8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 10 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Repeatability ±0.1mm Velocity ≤3m/s
Load ≤6t Accelertaion ≤5m/s²
Stroke ≤70m Lubricating System Manual/automatic
Dustproof Modes Sheet Metal Cover/organ Cover Drag Chain Material Engineering Plastics/steel/stainless Steel
High Light

robot rail system

,

7th robot axis

,

Polishing Engineering Plastics Robot

Leave a Message
Product Description

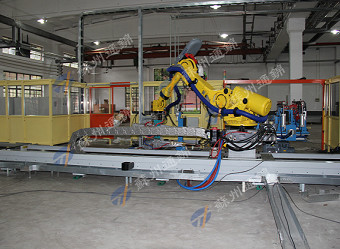

High safety 7th axis used for polishing/grinding robot,non-pollution robot rail equipped with organ shield





Basic configurations











Polishing Engineering Plastics  Robot Linear Track / Grinding  Robot Rail System 0













































Features and benefits











★Customized travel.

According to the customer requirement the 7th axis can be extended to 70 m.







★Flexible installation, high precision.

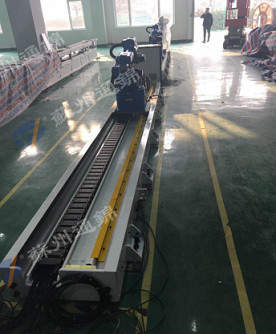

The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.







★High safety.

We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.







★Environmental Protection.

On 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.





























Model definition











TJS   05   S040   V08   A08    L1   E1   2



  ↓        ↓      ↓         ↓       ↓       ↓     ↓     ↓



 ①       ②    ③       ④     ⑤     ⑥    ⑦   ⑧















①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others







































FAQ











Q:What's the price of the product?



A:The price is based on the specification and accessories(servo motor,gearbox,guideway and so on.If you need,we can also send you a copy of customer requirement list.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.









Q:Which countries and regions do your products export to?



A:Germany,Italy,Brazil,Mexico,Japan,Iran,France,India etc.Mainly used for vehicle assembly,flame plating,loading and unloading,stacking etc.









Q:Can you also provide us the robot if we want a complete set of processing solution?



A:Yes,sure.we have much experience in system integration.You just tell us your application and the effect you want.By the way,we have a good cooperative relationship with some robot manufacturers such as FANUC,ABB,YASKAWA,Panda,ESTUN,EFORT etc.So we also take advantages in the price of the robots.

No matter you only need robot rail or the whole system,we can both meet your requirements.
