Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis

China Suzhou Tongjin Precision Industry Co., Ltd certifications
China Suzhou Tongjin Precision Industry Co., Ltd certifications
I'm Online Chat Now

Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis

Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis
Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis

Large Image :  Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,ISO14001:2004
Model Number: TJS XX SXXX VXX AXX LX EX X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 10 pcs per month
Detailed Product Description
Repeatability: ±0.1mm Velocity: ≤3m/s
Load: ≤6t Accelertaion: ≤5m/s²
Stroke: ≤70m Lubricating System: Manual/automatic
Dustproof Modes: Sheet Metal Cover/organ Cover Drag Chain Material: Engineering Plastics/steel/stainless Steel
High Light:

7 axis robot

,

light mover rail

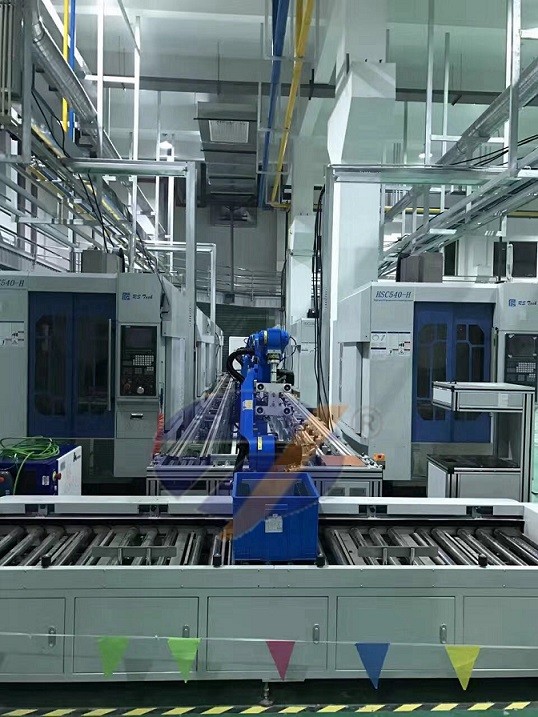

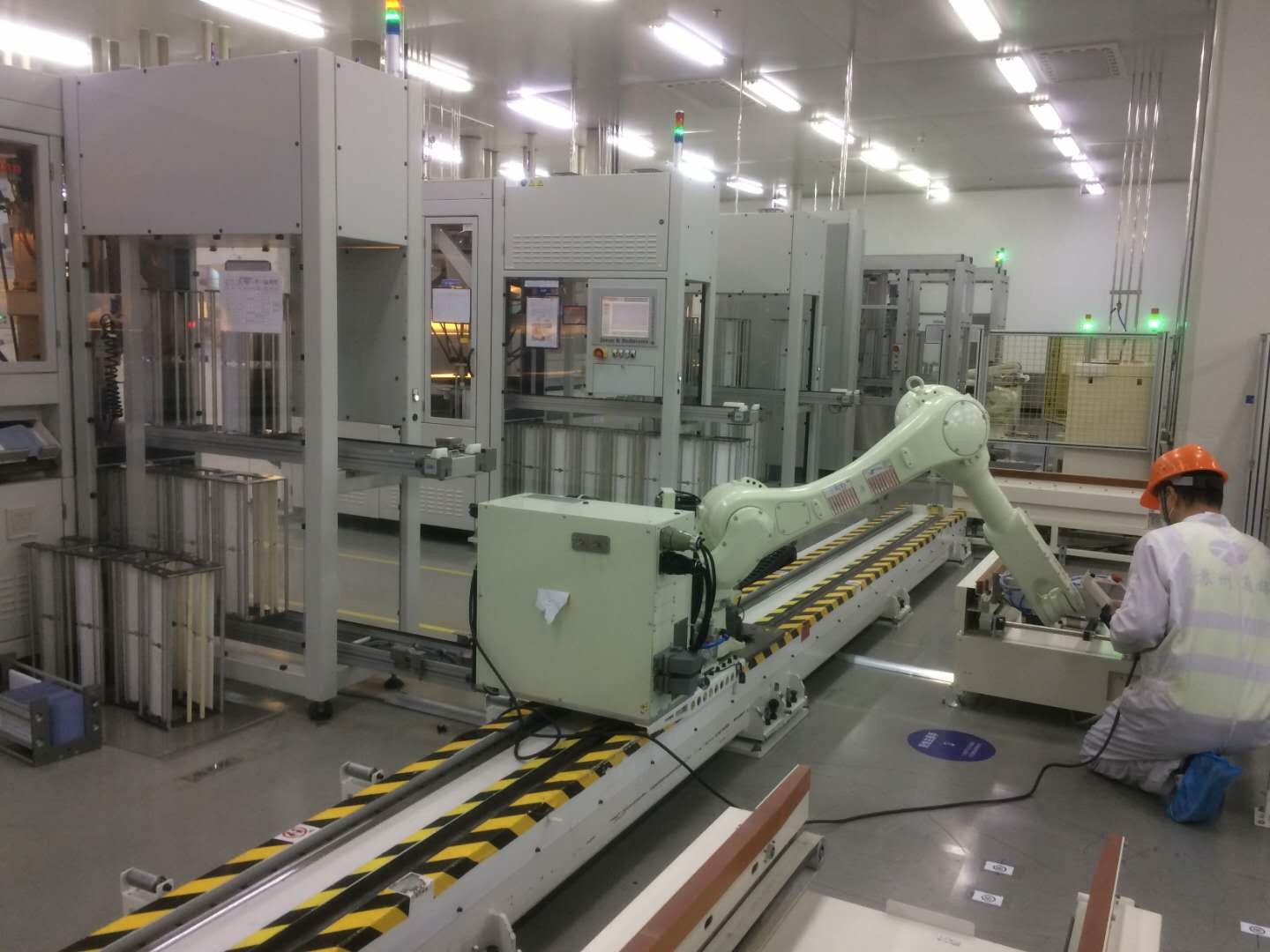

long stroke 7th axis up to 70m,long working life robot rail system used for loading and unloading

Features and benefits







1. Customized travel. According to the customer requirement the 7th axis can be extended to 30 m.





2. installation, high precision. The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.





3. High safety. We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.





4.Environmental Protection.On 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.









Basic configuration









Flexible Long Stroke Robot Linear Track , Loading And Unloading Robot 7 Axis 0















Model definition















TJS   ②05   ③S040   ④V08   ⑤A08   ⑥L1   ⑦E1   ⑧2











①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others





























Why choose us?









1. Product advantages



(1)Customized travel

(2)Flexible installation, high precision

(3)High safety

(4)Environmental Protection









2. Mature after-sales system



Our professional technicians will install and adjust products in site and make sure the rail run normally.Our company promises one year warranty and lifetime maintenance,we will arrange our technicians to maintenance as soon as possible once the device is out of order to make sure the customers can use our product without any worries.









3. Experienced in the industry



Our company is experienced in 7th robot and system integration .We have focused on this product for more than 3 years and met multiple different customers’ requirements.









4. Extensive cooperation with robot manufacturers



We have a good cooperative relationship with some robot manufacturers such as FANUC,ABB,YASKAWA,Panda,ESTUN,EFORT etc.So if you also need us provide the robot,maybe we take advantages in the price of the robot.
