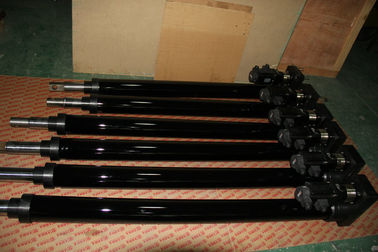

High Torque Heavy Duty Electric Cylinder For Armored Vehicle Swing Platform

Place of Origin China
Brand Name TJ
Certification CE
Model Number TJER190,TJER220,TJER250
Minimum Order Quantity 1 pcs
Price negotiate
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3~4 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 800 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Compact Linear Actuator Color Green
Material Steel Features Waterproof
Voltage 240v Oem Yes
High Light

heavy duty linear actuator

,

silent linear actuator

,

High Torque Heavy Duty Electric Cylinder

Leave a Message
Product Description

Adjustable Linear Actuator are ruggedly designed and produced in standard models with thrust capacities from 500 lbs. To 40,000 lbs. They are supplied in a Single Reduction, Double Reduction, or an In-Line Configurations. Electric Cylinders are intended for use in industrial environments and feature ground and hard chrome plated actuator tubes with industrial enamel paint on exterior surfaces. Heavy duty electric cylinders can be supplied for outdoor applications.



TJE040:50-200mm

TJE065:50-250mm

TJE075:50-600mm

TJE095:50-800mm

TJE110:50-1000mm

TJE135:50-1200mm

TJER160:50~1500mm

TJER190:50~2000mm

TJER220:50~2500mm

TJER250:50~3000mm

Screw Lead:

TJE040:4mm

TJE065:4, 5, 10, 16,20mm

TJE075:4, 5,10, 20, 40mm

TJE095:4, 5, 6, 8, 10, 25mm

TJE110:5, 6, 8, 10, 20, 32mm

TJE135:10, 20, 50mm

TJER160:10,20mm

TJER190:10,20mm

TJER220:10,20mm

TJER250:10,20mm

Maintenance free,Compact structure,low inertness, less noise ,fast response,long working life



Questions Answers
How much is your minimum order quantity? 1 piece.We have confidence that you are satisfied with our production.
What's the price of the product? The price is based on the size,specification and accessories. You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.

Which conturies and regions do your products export to?



Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.

Could you offer us free samples?





Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.





I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?

I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?
A: First of all, thank you very much for your trust and using our cylinder, I think the main reason is the screw inside, after about 8000 working hours, you’d better replace it with a new screw to ensure the accuracy.
The reference formula:
L10=(Ca/Fm)3×L
★ L10: The life of the electric cylinder,unit: Km

★ Fm: Average load of electric cylinder,unit: Kn

★ Ca: Screw nut basic dynamic load, unit: Kn

(can be detected by screw samples)

★ L: Screw lead,unit: mm
