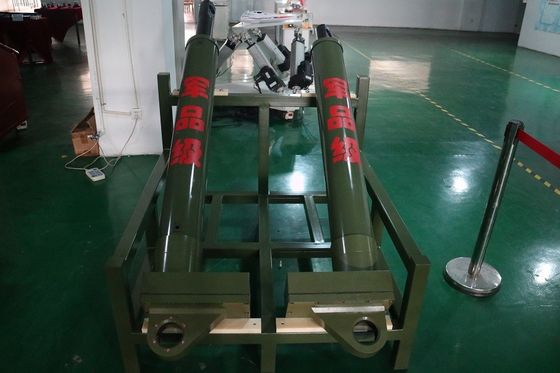

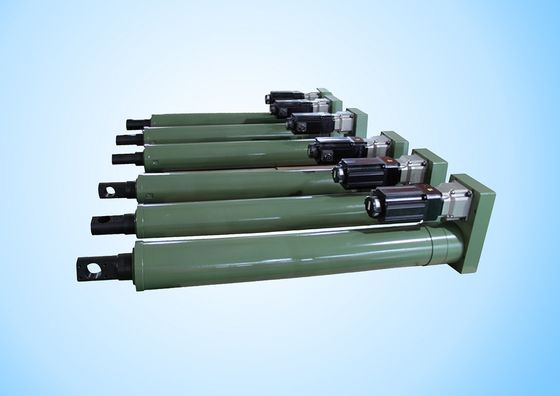

Fast Response Military Level 220V Servo Electric Cylinder , Heavy Load 220V Ball Screw Drive With Control System

  • Fast Response Military Level 220V Servo Electric Cylinder , Heavy Load 220V Ball Screw Drive With Control System
  • Fast Response Military Level 220V Servo Electric Cylinder , Heavy Load 220V Ball Screw Drive With Control System
Place of Origin China
Brand Name TJ
Certification ISO9001:2008,CE
Model Number TJE 110,135, TJER 160,190,220,250
Minimum Order Quantity 1 pcs
Price 1,000~40,000 USD
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3-8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 800 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stroke 50~2000 Mm Load 30,000N~350,000 N
Speed ≤200 Mm/s Repeatability ± 0.01mm
Basic Weight 30 Kg Motor Connection Type Linear/parallel/customized
Motor Output 0.8KW - 5.5KW Screw Lead 4mm,5mm,8mm,10mm,20mm,40mm
High Light

Servo Electric Cylinder Heavy Load

,

Military Level Servo Electric Cylinder

,

200mm/s Servo Electric Cylinder
Leave a Message
Product Description

220V military level / heavy load servo electric cylinder









1. About Our Products





The heavy duty electric rod actuator accommodates larger motors and delivers high force with excellent accuracy. These high force electric linear actuators feature ball or roller screw selections, an enhanced high thrust bearing and heavy duty internal bumpers. The standard grease zerk extends screw life by making relubrication easy and convenient without dissassembly. RSA/RSM-HT actuators are suitable for valve actuation, punch press, injection molding applications and many more.



Electric Cylinders are ruggedly designed and produced in standard models with thrust capacities from 500 lbs. To 40,000 lbs. They are supplied in a Single Reduction, Double Reduction, or an In-Line Configurations. Electric Cylinders are intended for use in industrial environments and feature ground and hard chrome plated actuator tubes with industrial enamel paint on exterior surfaces. Heavy duty electric cylinders can be supplied for outdoor applications.







2. Features



  • Fully assembled and ready to mount
  • Operates without externally mounted limit or home switches
  • No pipes, valves, air or oil supply required
  • Flexible control (unlike fluid power cylinders)
  • Food-grade option
    • Durable two-part white epoxy coating and corrosion resistant stainless fasteners
    • Stroke lengths up to 450mm, speeds as fast as 550mm/sec, and positioning repeatability of ±0.02mm
    • Stainless-steel piston rod actuators with Viton® seals
  • Full setup and programming support in RSLogix™ 5000 (version 20 or earlier) and UltraWARE software
  • Easy sizing and operating life estimates using Motion Analyzer software
  • 3D solid model files are available to simplify mechanical and electrical design
  • Available with or without 24V DC holding brakes







3. Compared With Hydraulic Cylinder &Pneumatic Cylinders





  Items Electric cylinder Hydraulic cylinder Pneumatic Cylinders




Cost comparison		 Operations Convenient Complex Complex
Environment
influence		 Environmental Oil leak High noise
Safety Safe Oil leak Gas leak
Energy loss Low loss High loss High loss
Lifetime Very Long Can be long with proper maintenance Can be long with proper maintenance
Cost performance Excellent Ordinary Ordinary
Maintenance Almost maintenance free Frequent & high cost Regular & high cost





Function comparison		 Velocity Very high Medium High
Acceleration Very high Medium High
Rigidity Very high Low Low
Load ability High High Medium
Shock resistance ability
Good
Good
Ordinary
Efficiency ＞90% ＜50% ＜50%
Location control Easy Hard Hard
Location precision Very high Medium Medium













4. Maintenance





1) Electric cylinder is refueled with lubricating grease GB7324-1994 general lithium base 3 lubricating grease when leaves factory.


2) After electric cylinder has run for 300 hours, refill the lubricating grease. Refueling frequency, per 2000hours one time as usual, it is determined on basis of the operating environment and day-to-day operational time.


3) Refueling method: open the filler hole on the shell of electric cylinder, turn the screw to find the filler hole on the screw nut and refuel lubricating grease.

4) Requirement for lubricating grease:GB7324-1994 general lithium base 3 lubricating grease.
