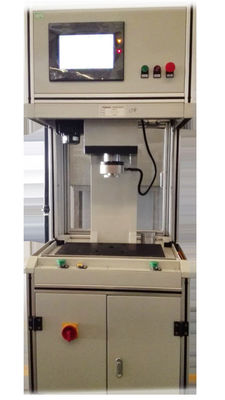

Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN

  • Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN
  • Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN
  • Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN
  • Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN
Place of Origin China
Brand Name TJ
Certification CE
Model Number TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details non wooden box
Delivery Time 6~8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 20 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Servo Electric Press 220, Power Tool Motor Assembly Machine Model C-type/four-column Type/desktop Type
Control Forms Touch Screen Type/computer Type Pressure Range 0.1~300KN
Max. Effective Stroke 500mm Pressing Mounting Speed 0~35mm/s
Fast Forward/return Speed 0~100mm/s Max. Dwell Time 3000s
Repeatablity ±0.01 Warranty 1 Year
Machine Type Electric Servo Application Power Tool Motor Assembly
High Light

Four Column Servo Driven Press

,

300 KN Servo Electric Press

,

Desktop Servo Electric Press
Leave a Message
Product Description

Servo Electric Press 220, Power Tool Motor Assembly, Pressure Range 0.1~300KN

servo electric press 220, Power tool motor assembly

Product Model Definition

Example:TJ-SP-10 C T



TJ--Tongjin abbreviation

SP--Pressing machine abbreviation



10--actual pressure

01:100 KG

05:500 KG

10:1 T

100:10 T

200:20 T

C--servo pressing machine type

C:C-type

F:four-column type

D:desktop type



T--servo pressing machine control form

T:touch screen type

C:computer type

Frame Giagram

Desktop Type Servo Electric Press Power Tool Motor Assembly 0.1-300KN 0



Function Application





★ Control pressing mounting assembly size precisely


1)



Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.


2)



It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.





★ Control pressing mounting stop position precisely


1)



The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.


2)



Set precise stop position and detect stop pressure.





★ Control pressing mounting time and pressure


1)



Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.


2)



It is widely used in the bonding operation and the ultrasonic welding.





★ Control pressing mounting stop force precisely


1)



The encapsulation of aluminium casing needs precise force and displacement control.


2)



Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.



Standard Tongjin Servo Press
Tongjin Servo Press Electro-Mechanical Assembly Press is a fully electric, programmable motion controlled ball screw press with integrated motion control and monitoring. Tongjin Servo Press offers 33 different servo presses with capacities ranging from less than an ounce to over 200,000 pounds to fit any application.

Tongjin Servo Press offers you the most competitive, accurate, and efficient solution to any assembly requirement. The servo press brings you the ability to literally clone your original assembly, and then forces the system to duplicate – very precisely – all ongoing production. If, for some reason, the system cannot reproduce it, a fault condition will tell you that you have made a component outside the desired parameters.

★Only for reference.The stroke is optional,specific parameters are subject to the agreement.

FAQ



Q A
How much is your minimum order quantity? 1 piece.
What's the price of the product?

The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.


Which countries and regions do your products export to?

France,Germany,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for motor,automobile components,bearing pressing mounting etc.By the way,many customers replace pneumatic and hydraulic pressing machines with our servo pressing machines.


Can we use our own software and only buy the hardware from you? Yes,of course.We will communicate with our skilled technicians to ensure the software and pressing machine do the cooperative work successfully.
