Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly

China Suzhou Tongjin Precision Industry Co., Ltd certifications
China Suzhou Tongjin Precision Industry Co., Ltd certifications
I'm Online Chat Now

Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly

Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly
Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly

Large Image :  Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: CE
Model Number: TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 20 pcs per month
Detailed Product Description
Machine Model: C-type/four-column Type/desktop Type Control Forms: Touch Screen Type/computer Type
Pressure Range: 0.1~250KN Max. Effective Stroke: 500mm
Pressing Mounting Speed: 0~35mm/s Fast Forward/return Speed: 0~100mm/s
Max. Dwell Time: 3000s Repeatablity: ±0.01
High Light:

servo punch press

,

servo hydraulic press

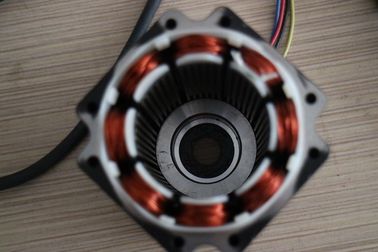

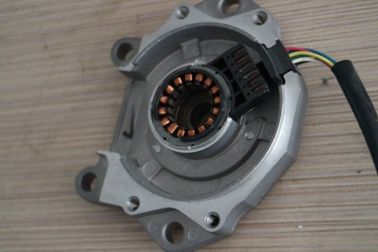

online quality test servo press machine for micro-motor and internal parts assembly,repeatablity:±0.01























Product Model Definition











Example:TJ-SP-10 C T





TJ--Tongjin abbreviation

SP--Pressing machine abbreviation



10--actual pressure

01:100 KG

05:500 KG

10:1 T

100:10 T

200:20 T



C--servo pressing machine type

C:C-type

F:four-column type

D:desktop type



T--servo pressing machine control form

T:touch screen type

C:computer type



























Frame Giagram









Touch Screen Type Servo Punch Press For Micro - Motor And Internal Parts Assembly 0






































Function Application













★ Control pressing mounting assembly size precisely



1)



Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.



2)



It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.





★ Control pressing mounting stop position precisely



1)



The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.



2)



Set precise stop position and detect stop pressure.





★ Control pressing mounting time and pressure



1)



Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.



2)



It is widely used in the bonding operation and the ultrasonic welding.





★ Control pressing mounting stop force precisely



1)



The encapsulation of aluminium casing needs precise force and displacement control.



2)



Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.











































Parameters Table













Items/Type Unit

TJ-SP

-01

TJ-SP

-05

TJ-SP

-10

TJ-SP

-20

TJ-SP

-30

TJ-SP

-50





Maximum value KN 1 5 10 20 30 50

Allowance

range

KN 0.1-1 0.5-5 1-10 2-20 3-30 5-50

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 200 200 200 200 250 350

Minimum adjustable

unit



mm



0.01 mm







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s



0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 0.4 0.75 1.5 2.2 3.5 5.5
Voltage Tri-phase V 380/220










Items/Type Unit

TJ-SP

-70

TJ-SP

-100

TJ-SP

-150

TJ-SP

-200

TJ-SP

-250

TJ-SP

-300









Pressure

range







Maximum value KN 70 100 150 200 250 300

Allowance

range

KN 7-70 10-100 15-150 20-200 25-250 30-300

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 350 500 500 500 500 500

Minimum adjustable

unit



mm



0.01 mm







Speed

Press

mounting

mm/s 0-35 0-35 0-30 0-25 0-20 0-15

Fast forward/

return



mm/s



0-100



0-100



0-100



0-50



0-50



0-30

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 7.5 7.5 7.5 7.5 11 11
Voltage Tri-phase V 380/220








★Only for reference.The stroke is optional,specific parameters are subject to the agreement.





































FAQ







Q A
How much is your minimum order quantity? 1 piece.
What's the price of the product?

The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.



Which countries and regions do your products export to?

France,Germany,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for motor,automobile components,bearing pressing mounting etc.By the way,many customers replace pneumatic and hydraulic pressing machines with our servo pressing machines.



Can we use our own software and only buy the hardware from you? Yes,of course.We will communicate with our skilled technicians to ensure the software and pressing machine do the cooperative work successfully.
