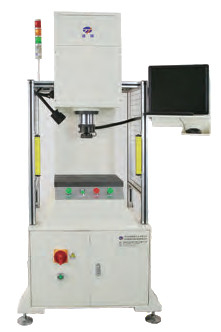

Electric Power Source Servo Electric Press With 30T Capacity For Manual Operation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperation Mode | Manual, Semi-Automatic, Fully Automatic | Repeatability | 0.02mm |
---|---|---|---|
Pressure Holding | Yes | Machine Model | C-type/four-column Type/desktop Type |
Accuracy | ±0.01 Mm | Table Size | 400x400mm |
Repeatablity | ±0.01 | Shut Height | 250mm |
High Light | Electric Power Source Servo Press,Manual Operation Servo Electric Press |
Product Description:
Servo Electric Press is a highly advanced and versatile press machine designed for precision assembly in various industries. With its multiple press-fit modes, precise control of press-fit time and pressure, and a wide force range of 0.5-1000KN, this press is capable of meeting the demanding requirements of modern assembly processes.
One of the key attributes of Servo Electric Press is its high repeatability, with a precision of 0.02mm. This ensures that the press consistently delivers accurate and repeatable results, making it suitable for even the most delicate and intricate assembly processes.
Servo Electric Press has a maximum capacity of 30T, making it suitable for a wide range of applications. From small electronic components to larger mechanical parts, this press can handle a variety of sizes and shapes with ease.
The press is equipped with a pressure holding feature, which allows for the maintenance of a constant pressure during the press-fit process. This ensures that the components are firmly and securely joined together, resulting in a high-quality and reliable assembly.
Servo Electric Press offers a wide range of pressing mounting speeds, from 0 to 35mm/s. This allows for precise control over the speed of the press, ensuring that the components are joined at the optimal rate for maximum efficiency and accuracy.
The press comes equipped with stepless pressure adjustment, which allows for precise control over the amount of force applied during the press-fit process. This feature is crucial for achieving a perfect fit and avoiding any damage to the components.
Servo Electric Press is specifically designed for precision assembly, making it ideal for industries such as electronics, automotive, and medical. Its high repeatability, pressure holding, and precise pressure adjustment features ensure that every assembly is completed with the utmost precision and accuracy.
This press also offers an automatic operation mode, which allows for the press-fit process to be completed without any manual intervention. This not only increases efficiency and productivity but also eliminates the risk of human error.
Servo Electric Press is a state-of-the-art press machine that offers multiple press-fit modes, precise control over press-fit time and pressure, and a wide force range. With its high repeatability and advanced features, it is the perfect choice for precision assembly in various industries, ensuring high-quality and reliable results every time.
Features:
- Product Name: Servo Electric Press
- Material Compatibility: Steel, Aluminum, Copper, Brass
- Power Source: Electric
- Repeatability: 0.02mm
- Repeatability: ±0.01
- Pressure Adjustment: Stepless
- Precise control of the stop position of press-fit
- Measurement accuracy of force sensor ± 0.1 ‰ FS
- Precise control of the press-fit time and pressure
- High-speed and high-precision servo drive
Technical Parameters:
Technical Parameter | Value |
---|---|
Repeatability | 0.02mm |
Capacity | 30T |
Shut Height | 250mm |
Operation Mode | Manual, Semi-Automatic, Fully Automatic |
Pressing Mounting Speed | 0~35mm/s |
Operating Temperature | 5-80°C |
Machine Model | C-type/four-column Type/desktop Type |
Pressure Holding | Yes |
Power Source | Electric |
Accuracy | ±0.01mm |
Multiple Press-fit Modes | Manual, Semi-Automatic, Fully Automatic |
Environmental Protection | High efficiency, Low energy consumption |
Energy Saving | Up to 50% reduction in energy consumption |
Safety | Advanced safety features to protect operators |
Low Operating Costs | Reduce maintenance and repair costs |
Force Range | 0.5-1000KN |
Precision Assembly | High precision and accuracy in press-fit operations |
Applications:
Place of Origin: made in china suzhou
Power Source: Electric
Capacity: 30T
Table Size: 400x400mm
Pressing Mounting Speed: 0~35mm/s
Pressure Adjustment: Stepless
Force Range:
0.5-1000KNPrecision Assembly:
Ensures accuracy and consistency in press-fitting processesMultiple Press-Fit Modes:
Allows for different types of press-fit operations, including single, double, and multiple press-fittingHigh Capacity:
With a capacity of 30T, this electric press is capable of handling a wide range of pressing needsStepless Pressure Adjustment:
Provides precise control over the pressure applied during press-fitting processesCompact and Sturdy Design:
Designed and made in China, this servo electric press is built to last and suitable for various industrial applicationsThe Servo Electric Press - TJ-SP-01FC is an essential tool for precision assembly in various industries. Its multiple press-fit modes make it suitable for a wide range of press-fitting operations, including but not limited to:
- Automotive industry: for press-fitting bearings, gears, and other components
- Electronics industry: for press-fitting connectors, PCBs, and other electronic parts
- Appliance industry: for press-fitting metal parts in household appliances
- Machinery industry: for press-fitting machine parts and components
- Medical industry: for press-fitting medical devices and components
The compact and sturdy design of this electric press makes it suitable for use in small workshops as well as large-scale production facilities. Its stepless pressure adjustment feature ensures precision and consistency in press-fitting, making it a valuable asset for any manufacturing process.
Customization:
Brand Name: SERVO PRESS MACHINE
Model Number: TJ-SP-01FC
Place of Origin: Made in China, Suzhou
Table Size: 400x400mm
Material Compatibility: Steel, Aluminum, Copper, Brass
Control System: Servo Motor
Power Source: Electric
Operation Mode: Manual, Semi-Automatic, Fully Automatic
- Precise control of press-fit time and pressure
- External position sensors with repeatability of 2μm
- On-line press-fit quality inspection
- Customized table size and material compatibility
Packing and Shipping:
- The Servo Electric Press will be packaged in a sturdy wooden crate to ensure safe transportation.
- All components of the press will be securely wrapped and cushioned with protective materials to prevent damage during shipping.
- The crate will be labeled with clear instructions and handling guidelines for the carrier.
- Extra care will be taken to protect delicate parts such as the control panel and electrical components.
- The Servo Electric Press will be shipped via a reputable shipping company with experience in handling industrial equipment.
- The shipping cost will be included in the purchase price of the press.
- Customers will be provided with a tracking number to monitor the status of their shipment.
- The press will be insured during shipping to provide extra protection against any potential damages.
- Our team will closely monitor the shipping process to ensure timely delivery and address any issues that may arise.
