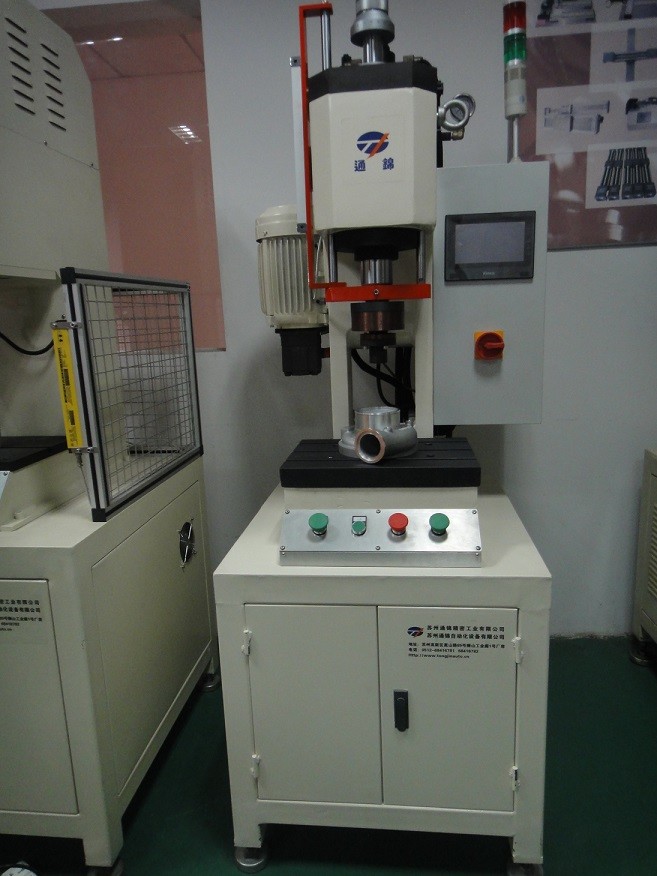

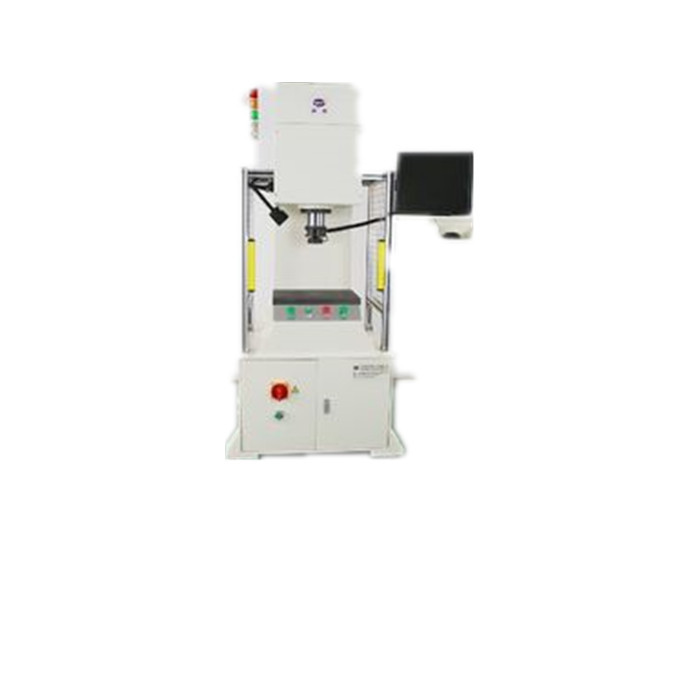

Data Traceable Servo Press Machine For Turbocharger Housing Pressing
Place of Origin | China |
---|---|
Brand Name | TJ |
Certification | CE |
Model Number | TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300 |
Minimum Order Quantity | 1 pcs |
Price | negotiable |
Packaging Details | non wooden box |
Delivery Time | 6~8 weeks |
Payment Terms | T/T,30% payment in advance,70% before delivery |
Supply Ability | 20 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMachine Model | C-type/four-column Type/desktop Type | Control Forms | Touch Screen Type/computer Type |
---|---|---|---|
Pressure Range | 0.1~250KN | Max. Effective Stroke | 500mm |
Pressing Mounting Speed | 0~35mm/s | Fast Forward/return Speed | 0~100mm/s |
Max. Dwell Time | 3000s | Repeatablity | ±0.01 |
Highlight | servo press 100,aida servo press,Data Traceable Servo Press Machine |

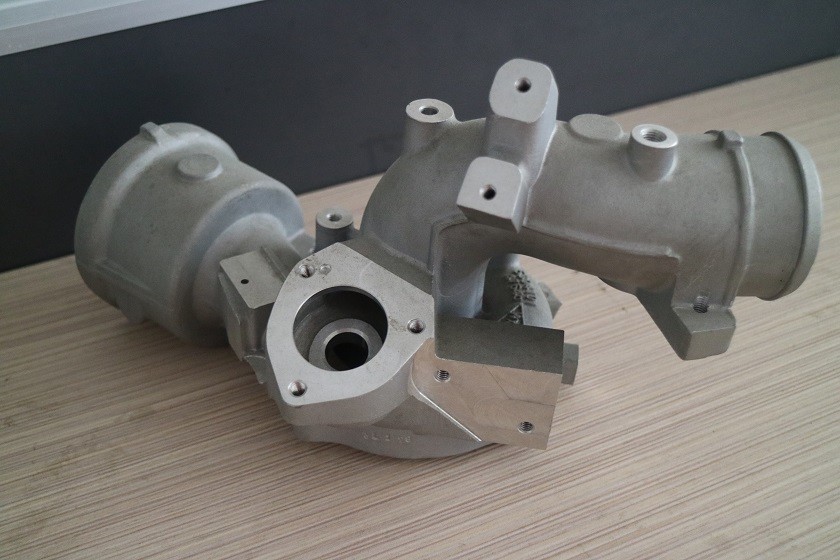

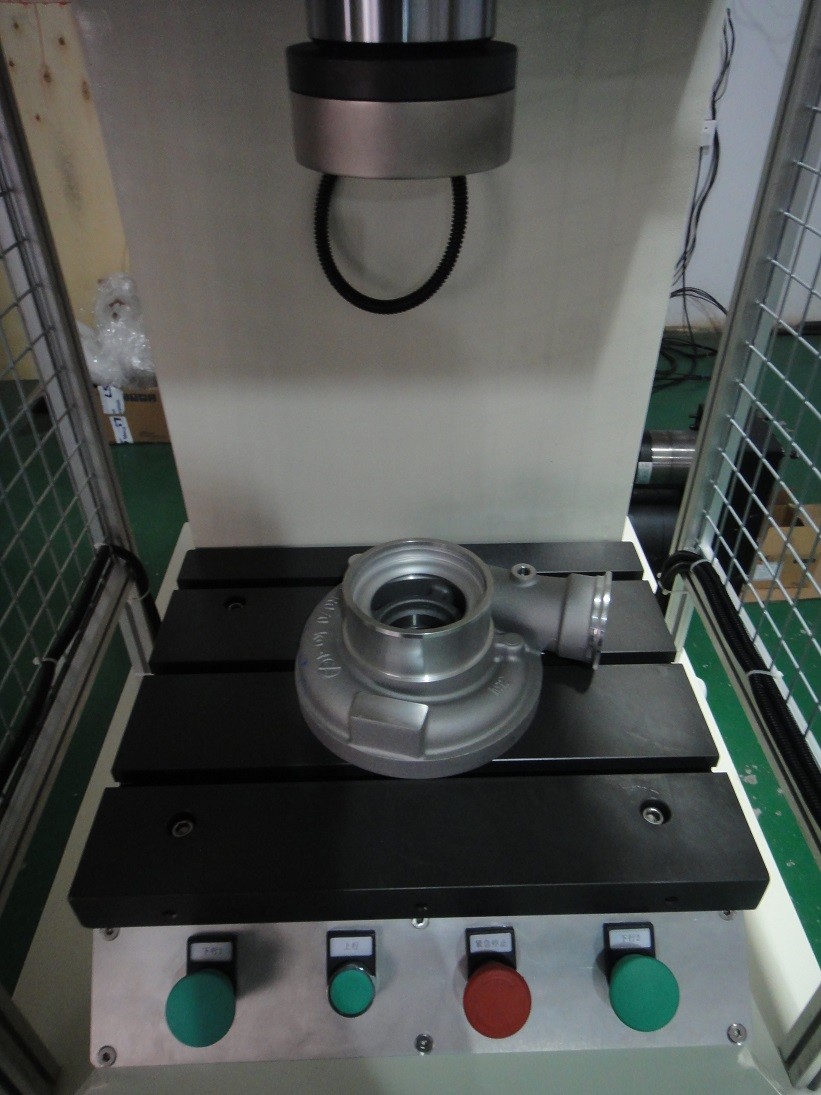

data traceable servo pressing mounting machine for turbocharger housing pressing,with multiple patents
Main Features
1. Diverse pressing mounting modes
--meet high precision production and quality control requirements
★Servo pressing machine can control pressing mounting speed,position and pressure accurately.Set lots of pressing programs including constant pressing speed,precise stop position,precise stop force,precise pressing displacement stop etc. working modes which can meet 2 or more sections pressing mounting working requirements easily.Within the stroke,we can set any stop position precisely and don’t need to use any expensive precision mould to make sure the pressing precision.The repeatability is ±0.01mm and the pressure control precision is ±1% of rated pressure.
2.Online pressing quality control
--meet quality control and data management during the whole process
★After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.
★With the function of checking the position upon bearing force to test whether it works and the direction is right or not.
★With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judge whether it can satisfy the set quality control conditions or not.
★With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.
3.Automatic precision compensation
--meet the the precise assembly requirement under the special operating condition
The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.
Environmental,energy-efficient,safe and low operating cost
★The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.
★Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.
4.Environmental,energy-efficient,safe and low operating cost
★The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.
★Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.
Function Application
1.Control pressing mounting assembly size precisely
★Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.
2.Control pressing mounting stop position precisely
★The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.
★Set precise stop position and detect stop pressure.
3.Control pressing mounting time and pressure
★Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.It is widely used in the bonding operation and the ultrasonic welding.
4.Control pressing mounting stop force precisely
★The encapsulation of aluminium casing needs precise force and displacement control.Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.
Dimensions
Model | Stroke(mm) | D(mm) | S(mm) | L2(mm) | W2(mm) | H2(mm) | L1(mm) | W1(mm) | H1(mm) |
TJ-SP-10 | 200 | 150 | 300 | 350 | 300 | 770 | 670 | 750 | 1695 |
TJ-SP-20 | 200 | 150 | 300 | 350 | 300 | 770 | 670 | 750 | 1715 |
TJ-SP-30 | 200 | 200 | 400 | 450 | 400 | 770 | 770 | 900 | 1910 |
TJ-SP-50 | 200 | 200 | 400 | 450 | 400 | 770 | 770 | 950 | 1958 |
TJ-SP-70 | 200 | 250 | 400 | 550 | 500 | 770 | 870 | 1100 | 2095 |
TJ-SP-100 | 200 | 300 | 400 | 650 | 600 | 770 | 970 | 1200 | 2180 |
★Only for reference.Specific parameters are subject to the agreement.
Parameters Table
Items/Type | Unit |
TJ-SP -01 |
TJ-SP -05 |
TJ-SP -10 |
TJ-SP -20 |
TJ-SP -30 |
TJ-SP -50 |
|
|
Maximum value | KN | 1 | 5 | 10 | 20 | 30 | 50 |
Allowance range |
KN | 0.1-1 | 0.5-5 | 1-10 | 2-20 | 3-30 | 5-50 | |
Minimum adjustable unit |
N |
1 |
||||||
Minimum detection value |
0.2% of the maximum pressure |
|||||||
Lead |
Maximun value |
mm | 200 | 200 | 200 | 200 | 250 | 350 |
Minimum adjustable unit |
mm |
0.01 |
||||||
Speed |
Press mounting |
mm/s | 0-35 | |||||
Fast forward/ return |
mm/s |
0-100 |
||||||
Minimum adjustable unit |
mm/s |
0.01 |
||||||
Dwell time |
Maximum vaule |
S | 3000 | |||||
Minimum adjustable unit |
S |
0.1 |
||||||
Repeatability | mm | ±0.01 | ||||||
Power | kw | 0.4 | 0.75 | 1.5 | 2.2 | 3.5 | 5.5 | |
Voltage | Tri-phase | V | 380/220 |
Items/Type | Unit |
TJ-SP -70 |
TJ-SP -100 |
TJ-SP -150 |
TJ-SP -200 |
TJ-SP -250 |
TJ-SP -300 |
||||
Pressure range
|
Maximum value | KN | 70 | 100 | 150 | 200 | 250 | 300 | |||
Allowance range |
KN | 7-70 | 10-100 | 15-150 | 20-200 | 25-250 | 30-300 | ||||
Minimum adjustable unit |
N |
1 |
|||||||||
Minimum detection value |
0.2% of the maximum pressure |
||||||||||
Lead |
Maximun value |
mm | 350 | 500 | 500 | 500 | 500 | 500 | |||
Minimum adjustable unit |
mm |
0.01 |
|||||||||
Speed |
Press mounting |
mm/s | 0-35 | 0-35 | 0-30 | 0-25 | 0-20 | 0-15 | |||
Fast forward/ return |
mm/s |
0-100 |
0-100 |
0-100 |
0-50 |
0-50 |
0-30 |
||||
Minimum adjustable unit |
mm/s |
0.01 |
|||||||||
Dwell time |
Maximum vaule |
S | 3000 | ||||||||
Minimum adjustable unit |
S |
0.1 |
|||||||||
Repeatability | mm | ±0.01 | |||||||||
Power | kw | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | ||||
Voltage | Tri-phase | V | 380/220 |
★Only for reference.The stroke is optional,specific parameters are subject to the agreement.
