High Safety Robot Rail System For Polishing And Grinding Axis Up To 70m

China High Safety Robot Rail System For Polishing And Grinding Axis Up To 70m supplier
High Safety Robot Rail System For Polishing And Grinding Axis Up To 70m supplier High Safety Robot Rail System For Polishing And Grinding Axis Up To 70m supplier

Large Image :  High Safety Robot Rail System For Polishing And Grinding Axis Up To 70m

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,ISO14001:2004
Model Number: TJS XX SXXX VXX AXX LX EX X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Repeatability: ±0.1 Velocity: ≤3m/s
Load: ≤6t Accelertaion: ≤5m/s²
Stroke: ≤70m Lubricating System: Manual/automatic
Dustproof Modes: Sheet Metal Cover/organ Cover Drag Chain Material: Engineering Plastics/steel/stainless Steel

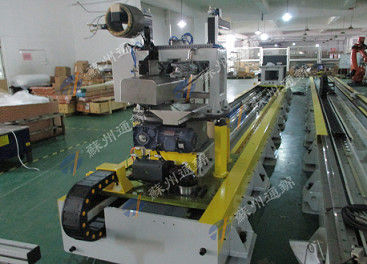

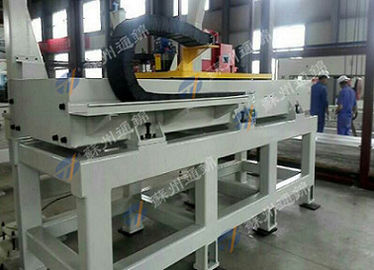

steady operation robot rail system used for polishing/grinding,high safety 7th robot axis up to 70m



About 7th axis







The new robot 7th-axis(robot rail) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.























Model definition











TJS   ②05   ③S040   ④V08   ⑤A08   ⑥L1   ⑦E1   ⑧2











①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others





























Features and benefits





1. Customized travel. According to the customer requirement the 7th axis can be extended to 30 m.



2. Flexible installation, high precision. The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.



3. High safety. We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.



4.Environmental Protection.On 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.
