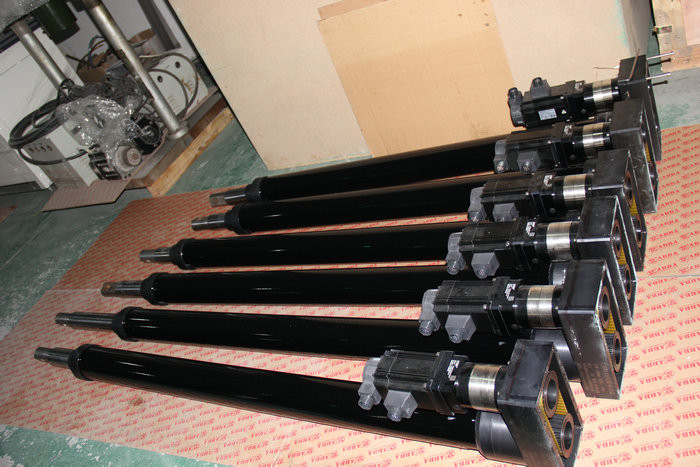

Custom Made Heavy Duty Electric Cylinder With Excellent Accuracy High Force

High Force Linear Actuator accommodates larger motors and delivers high force with excellent accuracy. These high force electric linear actuators feature ball or roller screw selections, an enhanced high thrust bearing and heavy duty internal bumpers. The standard grease zerk extends screw life by making relubrication easy and convenient without dissassembly. RSA/RSM-HT actuators are suitable for valve actuation, punch press, injection molding applications and many more.

Electric Cylinders are ruggedly designed and produced in standard models with thrust capacities from 500 lbs. To 40,000 lbs. They are supplied in a Single Reduction, Double Reduction, or an In-Line Configurations. Electric Cylinders are intended for use in industrial environments and feature ground and hard chrome plated actuator tubes with industrial enamel paint on exterior surfaces.

Features

• Fully assembled and ready to mount
• Operates without externally mounted limit or home switches
• No pipes, valves, air or oil supply required
• Flexible control (unlike fluid power cylinders)
• Food-grade option
  • Durable two-part white epoxy coating and corrosion resistant stainless fasteners
  • Stroke lengths up to 450mm, speeds as fast as 550mm/sec, and positioning repeatability of ±0.02mm
  • Stainless-steel piston rod actuators with Viton® seals
• Full setup and programming support in RSLogix™ 5000 (version 20 or earlier) and UltraWARE software
• Easy sizing and operating life estimates using Motion Analyzer software

Applications

Military equipments: radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system, actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc;

Special equipment: industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning;

Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.
