Touch Screen Type Servo Press Machine Low Noise Stable Performance
| Place of Origin | China |
|---|---|
| Brand Name | TJ |
| Certification | CE |
| Model Number | TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300 |
| Minimum Order Quantity | 1 pcs |
| Price | negotiable |
| Packaging Details | non wooden box |
| Delivery Time | 6~8 weeks |
| Payment Terms | T/T,30% payment in advance,70% before delivery |
| Supply Ability | 20 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Servo Press Machine Production Line Customized | Machine Model | C-type/four-column Type/desktop Type |
|---|---|---|---|
| Control Forms | Touch Screen Type/computer Type | Color | Client's Request, Black And Silver |
| Pressure Range | 0.1~300KN | Max. Effective Stroke | 500mm |
| Pressing Mounting Speed | 0~35mm/s | Fast Forward/return Speed | 0~100mm/s |
| Max. Dwell Time | 3000s | Repeatablity | ±0.01 |
| Application | Touch Screen Type Servo Press Machine | Material | Steel, Gunmetal Finish |
| Highlight | low noise Servo Press Machine,Servo Press Machine 300KN,Stable Performance Servo Press Machine |
||
Product Description
Touch screen type servo press machine,speed press, low noise,stable performance
1. Descriptions
Suzhou jin automation equipment co., LTD belongs to suzhou jin industrial group, is located in suzhou national high-tech development zone, is a professional research and development, design, production and sale of linear motion module, servo electric cylinder, intelligent servo press machine, servo electric cylinder factory, stamping manipulator and the innovative high-tech enterprise one-stop system solutions.
2. Specifcations
The structure of servo press is mainly composed of main drive, actuator and auxiliary mechanism. 1. The main function of the main drive mechanism of the servo press is to transfer the energy required by the forging press from the servo motor to the actuator. The common drive modes are gear drive, belt drive, screw drive and hydraulic drive.
Electric control device:
1.Electrical appliance control cabinet has illuminating lamp for inspection and
maintenance.Main electrical components adopt famous brands from at home and abroad.
2.Control system includes two kinds of operation modes, manual operation and
semi-automatic single circulation.
3.PLC adopts German Siemens Brand. Touch screen adopts German Siemens or WEINVIEW
brand. Ball screw rod adopts Switzerland imported brand. Servo motor and controller are
Japanese Yaskawa Brand. And other electrical components are all imported brands or
domestic famous brands.
3. Parameters Table
| Items/Type | Unit |
TJ-SP -01 |
TJ-SP -05 |
TJ-SP -10 |
TJ-SP -20 |
TJ-SP -30 |
TJ-SP -50 |
|
|
|
Maximum value | KN | 1 | 5 | 10 | 20 | 30 | 50 |
|
Allowance range |
KN | 0.1-1 | 0.5-5 | 1-10 | 2-20 | 3-30 | 5-50 | |
|
Minimum adjustable unit |
N |
1 |
||||||
|
Minimum detection value |
0.2% of the maximum pressure |
|||||||
|
Lead |
Maximun value |
mm | 200 | 200 | 200 | 200 | 250 | 350 |
|
Minimum adjustable unit |
mm |
0.01 |
||||||
|
Speed |
Press mounting |
mm/s | 0-35 | |||||
|
Fast forward/ return |
mm/s |
0-100 |
||||||
|
Minimum adjustable unit |
mm/s |
0.01 |
||||||
|
Dwell time |
Maximum vaule |
S | 3000 | |||||
|
Minimum adjustable unit |
S |
0.1 |
||||||
| Repeatability | mm | ±0.01 mm | ||||||
| Power | kw | 0.4 | 0.75 | 1.5 | 2.2 | 3.5 | 5.5 | |
| Voltage | Tri-phase | V | 380/220 | |||||
| Items/Type | Unit |
TJ-SP -70 |
TJ-SP -100 |
TJ-SP -150 |
TJ-SP -200 |
TJ-SP -250 |
TJ-SP -300 |
||||
|
Pressure range
|
Maximum value | KN | 70 | 100 | 150 | 200 | 250 | 300 | |||
|
Allowance range |
KN | 7-70 | 10-100 | 15-150 | 20-200 | 25-250 | 30-300 | ||||
|
Minimum adjustable unit |
N |
1 |
|||||||||
|
Minimum detection value |
0.2% of the maximum pressure |
||||||||||
|
Lead |
Maximun value |
mm | 350 | 500 | 500 | 500 | 500 | 500 | |||
|
Minimum adjustable unit |
mm |
0.01 |
|||||||||
|
Speed |
Press mounting |
mm/s | 0-35 | 0-35 | 0-30 | 0-25 | 0-20 | 0-15 | |||
|
Fast forward/ return |
mm/s |
0-100 |
0-100 |
0-100 |
0-50 |
0-50 |
0-30 |
||||
|
Minimum adjustable unit |
mm/s |
0.01 |
|||||||||
|
Dwell time |
Maximum vaule |
S | 3000 | ||||||||
|
Minimum adjustable unit |
S |
0.1 |
|||||||||
| Repeatability | mm | ±0.01 mm | |||||||||
| Power | kw | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | ||||
| Voltage | Tri-phase | V | 380/220 | ||||||||
★Only for reference.The stroke is optional,specific parameters are subject to the agreement.

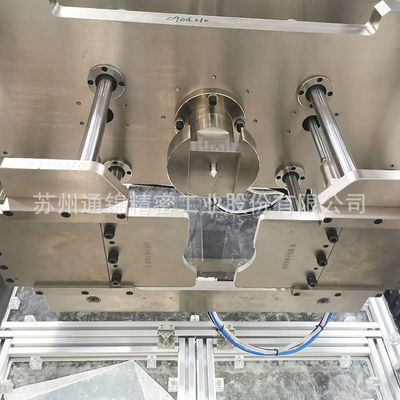

4. More pictures
