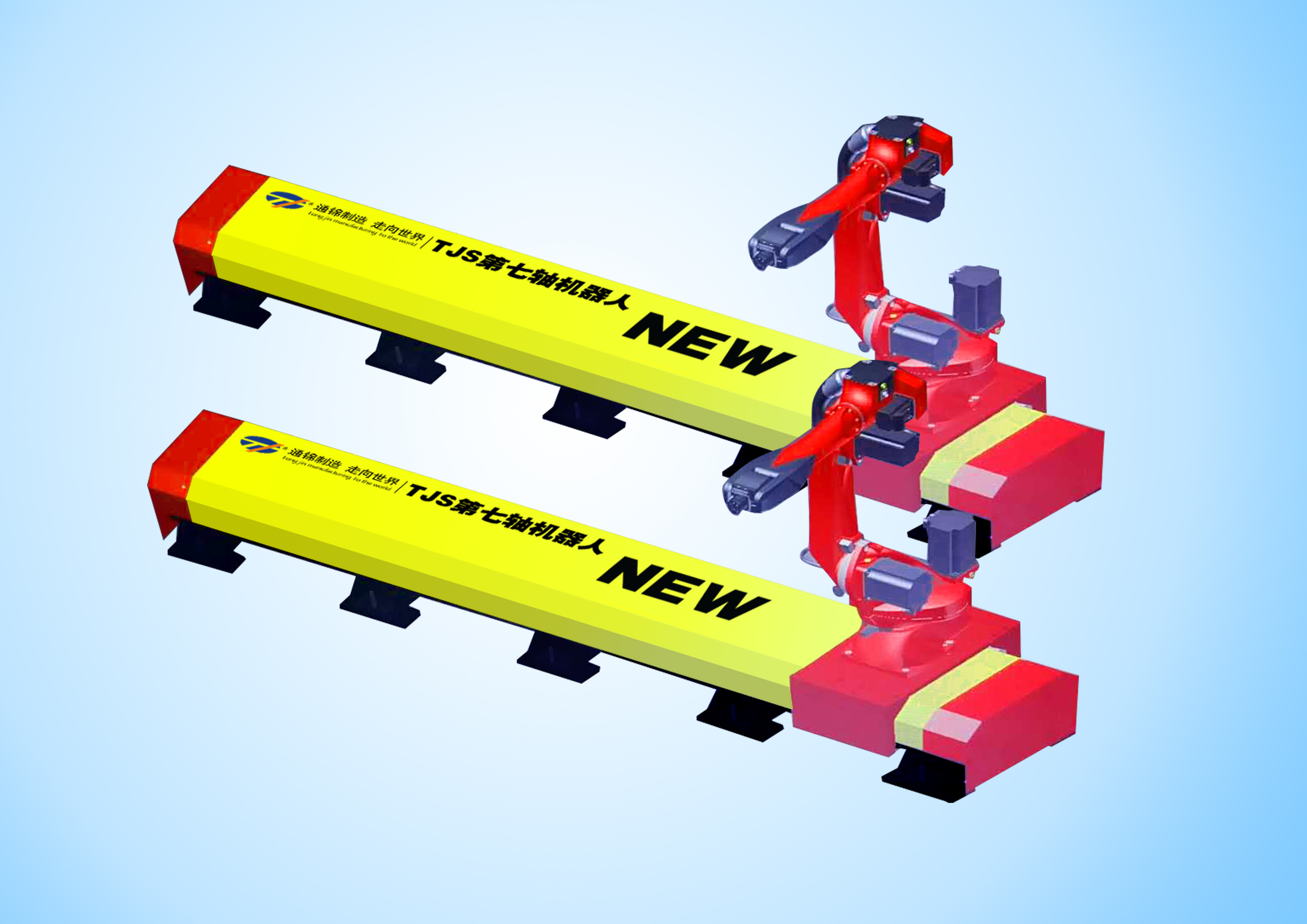

Yellow Stacking Robot 7 Axis With High Strength Structural Welding Sections

Yellow Stacking Robot 7 Axis With High Strength Structural Welding Sections
Yellow Stacking Robot 7 Axis With High Strength Structural Welding Sections Yellow Stacking Robot 7 Axis With High Strength Structural Welding Sections

Large Image :  Yellow Stacking Robot 7 Axis With High Strength Structural Welding Sections

Product Details:
Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,ISO14001:2004
Model Number: TJS XX SXXX VXX AXX LX EX X
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 10 pcs per month
Detailed Product Description
Repeatability: ±0.1mm Velocity: ≤3m/s
Load: ≤6t Accelertaion: ≤5m/s²
Stroke: ≤70m Lubricating System: Manual/automatic
Dustproof Modes: Sheet Metal Cover/organ Cover Drag Chain Material: Engineering Plastics/steel/stainless Steel
High Light:

robot linear track

,

7th robot axis

the 7th robot used in stacking

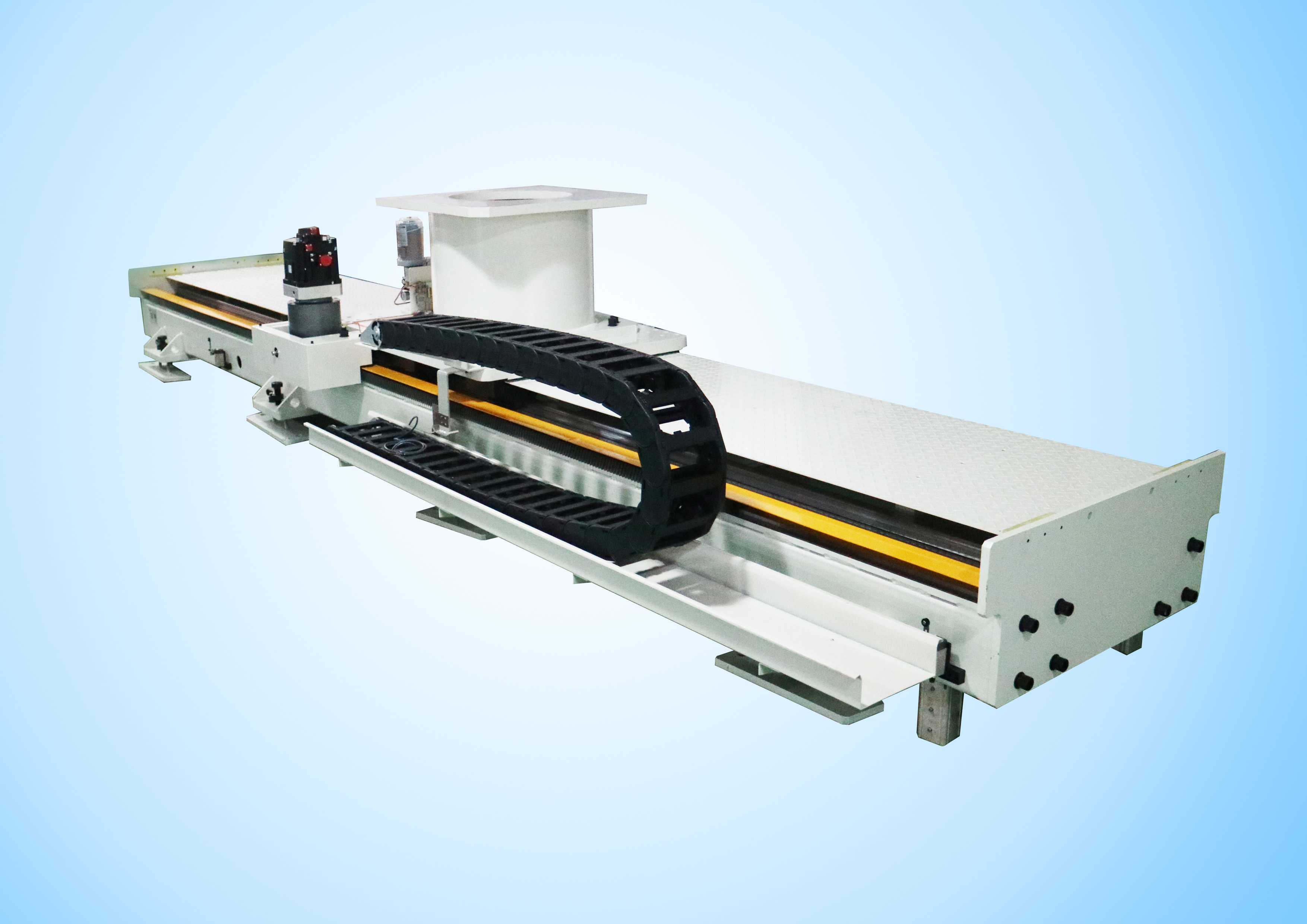

1.Structural Formation



The new robot 7th-axis consists of a or a set of high-strengthstructural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grindinghelical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy



2,Features and benefits

(1)Customized travel. According to the customer requirement the 7th axis can be extended to 70 m.

(2)Flexible installation, high precision. The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.

(3)High safety. In the 7th axis has set the limit switch and added the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.

(4)Environmental Protection. On the 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.





3.Configuration

single length 7m, travel 6m
some differences for different articulate robot





4.OPTIONS/ACCESSORIES


Control system related to motion control

(1) organ shield

(2) sheet metal guard


GAMBINI lubrication unit for gears and racks



Automatic centralized lubrication system for guide rails



Segment-based travel switch



High-precision displacement grating scale
