Customized Stroke Robot 7 Axis Wall Mounted Type Flexible To Install High Safety
|Place of Origin||China|
|Model Number||TJS XX SXXX VXX AXX LX EX X|
|Minimum Order Quantity||1 pcs|
|Packaging Details||non wooden box|
|Delivery Time||6~8 weeks|
|Payment Terms||T/T,30% payment in advance,70% before delivery|
|Supply Ability||10 pcs per month|
|Dustproof Modes||Sheet Metal Cover/organ Cover||Drag Chain Material||Engineering Plastics/steel/stainless Steel|
robot rail system,
7th robot axis
customized stroke robot/manipulator truss,high safety wall mounted type robot rail flexible to install
About robot/manipulator truss

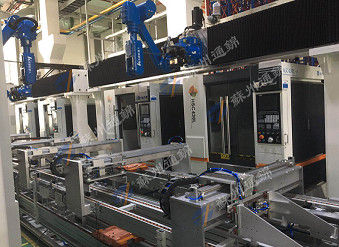

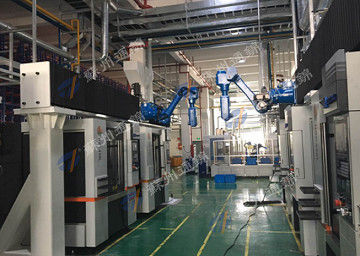

Robot/manipulator truss(wall mounted robot rail) is a special kind of robot rail which is not mounted on the ground.Compared with traditional robot rail,it saves more space and more flexible to install.This kind of robot rail is widely used in diverse industry areas especially in loading/unloading and flame plating.
Robot/manipulator truss consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.
Features and benefits
According to the customer requirement the 7th axis can be extended to 70 m.
★Flexible installation, high precision.
The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.
We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.
On 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.
TJS 05 S040 V08 A08 L1 E1 2
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
|①TJ 7th - Axis Robot||
Select any value within 79mm.
E1:sheet metal cover
Select any value within 3m/s.
