Aluminium 50-600mm 220V Servo Electric Cylinder With Exclusive Software High Speed

Aluminium 50-600mm 220V Servo Electric Cylinder With Exclusive Software High Speed

  • High Light

    electric cylinder actuators

    ,

    Exclusive Software Electric Cylinder Linear Actuator

    ,

    600mm Stroke Servo Electric Cylinder

  • Material
    Aluminium
  • Color
    Standard:navy Blue&silvery,others Can Be Customized
  • Speed
    Up To 500mm/s
  • Repeatability
    ±0.01mm
  • Stroke
    50~600mm
  • Output Force
    Up To 6KN
  • Motor Connection Type
    Linear/parallel
  • Internal Anti-rotation
    With/without
  • Screw Lead
    4,5,10,20,40mm
  • Load Connection Type
    Male,female,U-bolt,ball Head Hinge And Customized
  • Place of Origin
    China
  • Brand Name
    TJ
  • Certification
    ISO9001:2008,CE
  • Model Number
    TJE075
  • Minimum Order Quantity
    1 pcs
  • Price
    negotiable
  • Packaging Details
    external packing:carton or non wooden box;cushion packing:EPE foam
  • Delivery Time
    3-4 weeks
  • Payment Terms
    T/T,30% payment in advance,70% before delivery
  • Supply Ability
    800 pcs per month

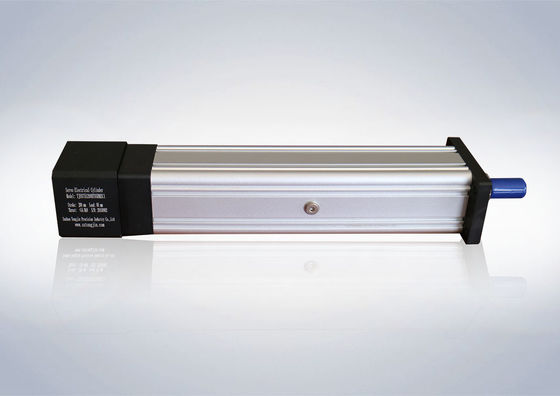

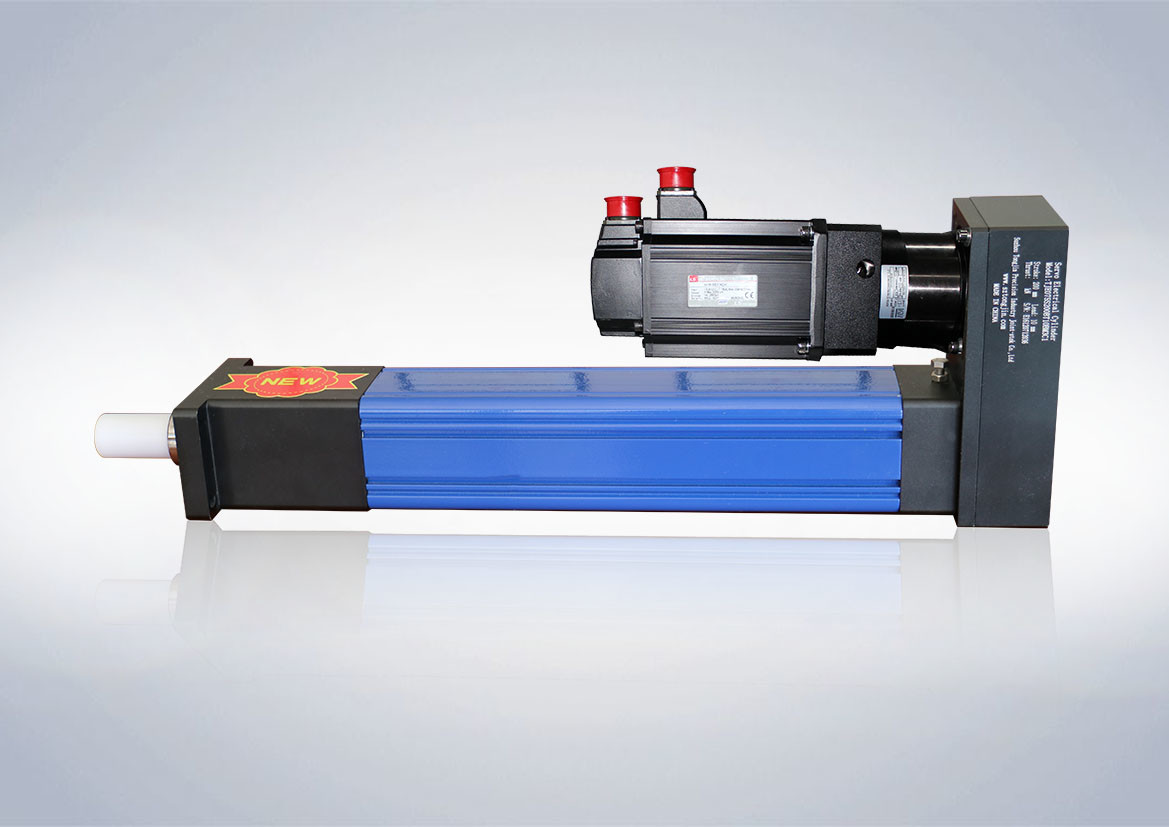

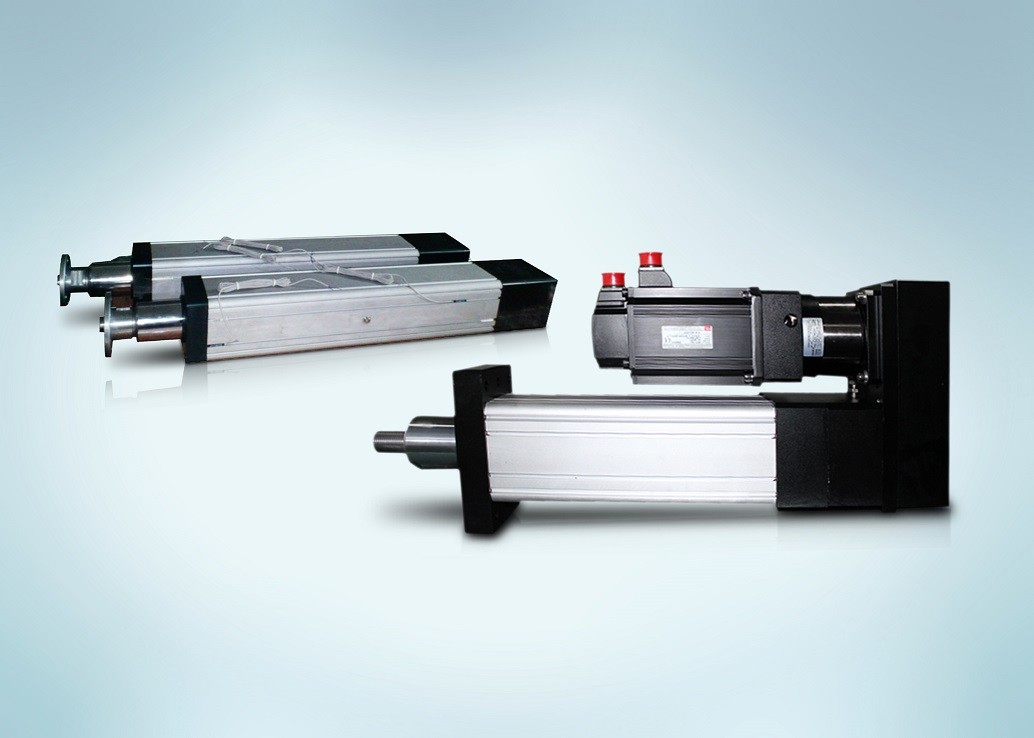

Aluminium 50-600mm 220V Servo Electric Cylinder With Exclusive Software High Speed

50~600mm Linear Actuator With Exclusive Software,High Speed Servo Electric Cylinder ISO 14001:2004



1. Operational Principle





The is a electric linear actuator motion that converts the rotating motion of the motor into the push rod through the rotating motion of the screw and the screw pair. By using the closed-loop control characteristic of servo motor, the precision control of thrust, speed and position can be realized conveniently, and the program can be realized by using modern motion control technology, numerical control technology and bus (network) technology. Because of its control and convenience, it can realize the precision motion control that cylinder and hydraulic cylinder drive can not realize.










2. Product Model Definition







Example: TJE075 S100 B R 05 A M C 2 P11 O/C N/P



TJE075—Series No.



TJE040:44×44mm

TJE065:64×64mm

TJE075:75×75mm

TJE095:93×93mm

TJE110:111×111mm

TJE135:134×134mm

S100—Effective Stroke



TJE040:50-200mm

TJE065:50-250mm

TJE075:50-600mm

TJE095:50-800mm

TJE110:50-1000mm

TJE135:50-1200mm

B—Screw Type



A:Acme Screw

B:Ball Screw

C:Roller Screw



R—Anti-rotation



R:With

T:Without(TJE040 always without this function )



05—Screw Lead



TJE040:4mm

TJE065:4, 5, 10, 16,20mm

TJE075:4, 5, 10, 20, 40mm

TJE095:4, 5, 6, 8, 10, 25mm

TJE110:5, 6, 8, 10, 20, 32mm

TJE135:10, 20, 50mm


A—Motor Mounting Type


A:Liner

B:Parallel


M—Cylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized



C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

2—Number Of Limit Switches



(Default is normally open NPN switch)


O/C—Limit Switches



O:Normally Open

C:Normally Close




N/P—Sensing Type



N:NPN

P:PNP


Grating ruler + Force sensor

Force sensor:① 4-20mA

② 0-10V

Grating ruler:① TTL 24V

② RS422(5V Difference)

If lacking of the part,it means without either grating ruler or force sensor.

P01:Only with grating ruler TTL(24V)
P02:Only with grating ruler RS422(5V Difference)

P10:Only with grating ruler 4-20mA
P20:Only with grating ruler 0-10V
P11:Force sensor 4-20mA,grating rulerTTL(24V)
P12:Force sensor 4-20mA,grating ruler RS422(5V Difference)
P21:Force sensor 0-10V,grating rulerTTL(24V)
P22:Force sensor 0-10V,grating rulerRS422(5V Difference)





Mark:

1) In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2) The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.












3. Electrical servo cylinder drive torque and power selection table







Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 4
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.76 3.53 2.65 5.29 5.29 6 6 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-200 0-130 0-65 0-40 0-20



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 4
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.76 3.53     5.29 6 6 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-200   0-65 0-40 0-20



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 5
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.41 2.82 2.12 4.23 4.23 6 6 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-250 0-165 0-80 0-50 0-25



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 5
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.41 2.82     4.23 6 6 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-250   0-80 0-50 0-25



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.71 1.41 1.51 2.117 2.117 4.23 3.53 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500 0-330 0-165 0-100 0-50



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.71 1.41     2.117 4.23 3.53 6 6 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500   0-165 0-100 0-50



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 16
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.44 0.88 0.66 1.32 1.32 2.65 2.21 4.41 4.41 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500 0-500 0-265 0-160 0-80



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 16
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.44 0.88     1.32 2.65 2.21 4.41 4.41 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500   0-265 0-160 0-80



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.35 0.71 0.53 1.06 1.06 2.12 1.77 3.53 3.53 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500 0-500 0-330 0-200 0-100



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.35 0.71     1.06 2.12 1.77 3.53 3.53 6
Cylinder Max. Force [KN] 6
Cylinder Speed [mm/s] 0-500   0-330 0-200 0-100



















4. Application areas:





★ Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



★ Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



★ Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

(1) warp knitting machine, fast speed and quick response

(2) servo pressing, motor assembly production line and you can also purchase our servo pressing software together.

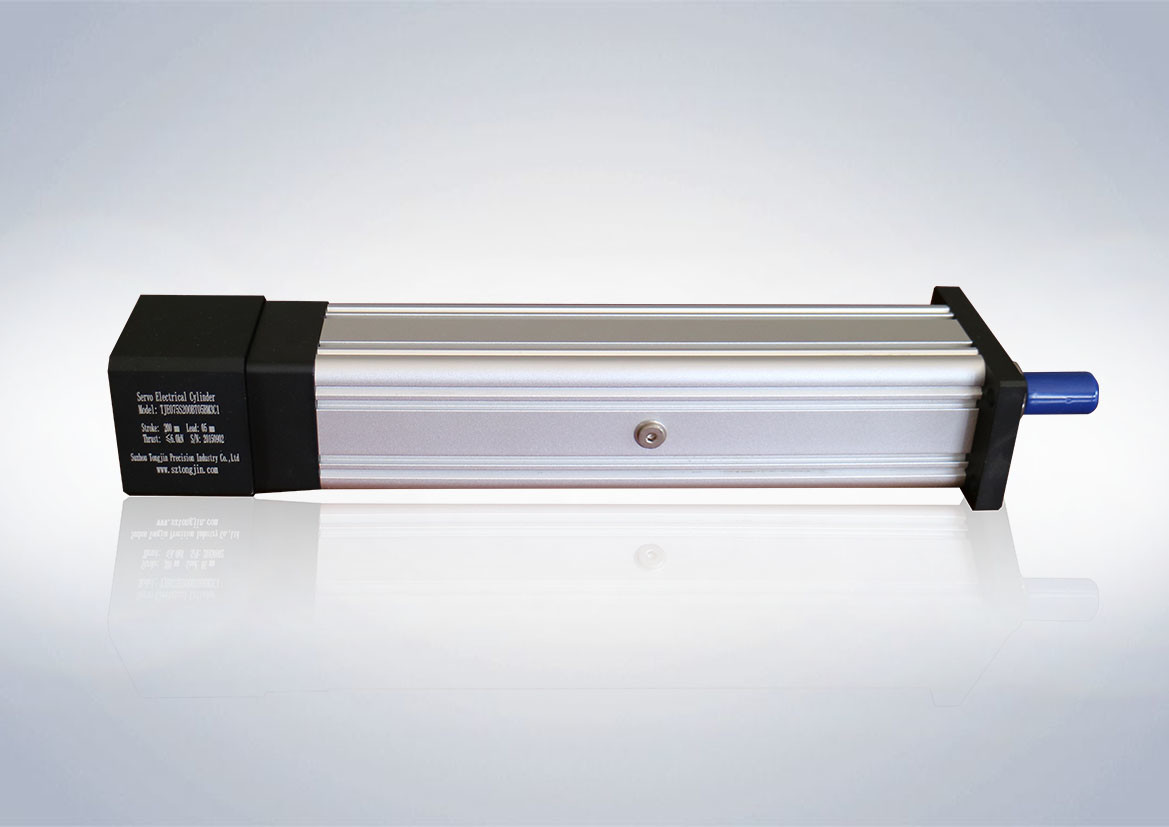

Aluminium 50-600mm 220V Servo Electric Cylinder With Exclusive Software High Speed 0

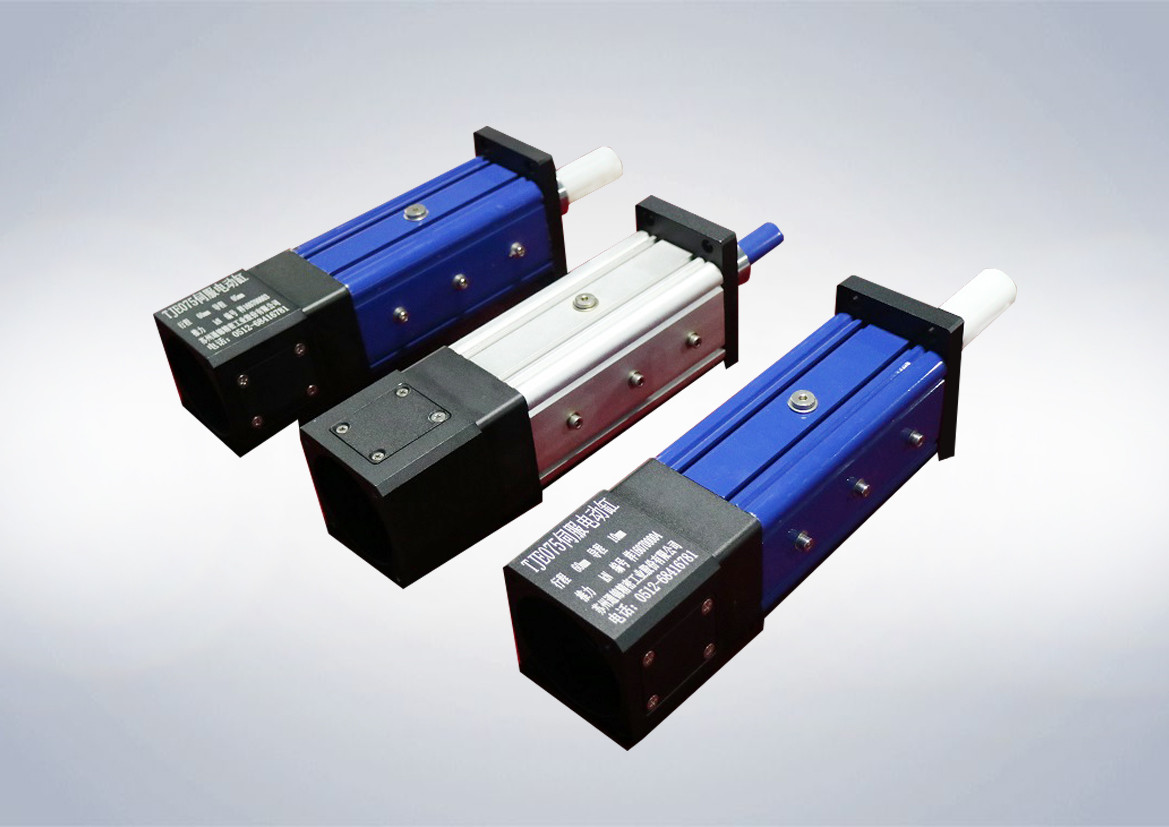

Aluminium 50-600mm 220V Servo Electric Cylinder With Exclusive Software High Speed 1










5. Maintenance





★ Electric cylinder is refueled with lubricating grease GB7324-1994 general lithium base 3 lubricating grease when leaves factory.


★ After electric cylinder has run for 300 hours, refill the lubricating grease. Refueling frequency, per 2000hours one time as usual, it is determined on basis of the operating environment and day-to-day operational time.


★ Refueling method: open the filler hole on the shell of electric cylinder, turn the screw to find the filler hole on the screw nut and refuel lubricating grease.



★ Requirement for lubricating grease:GB7324-1994 general lithium base 3 lubricating grease.
