50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V

Good quality Linear Electric Cylinder for sales
Good quality Linear Electric Cylinder for sales
I'm Online Chat Now

50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V

China 50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V supplier
50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V supplier 50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V supplier 50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V supplier 50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V supplier

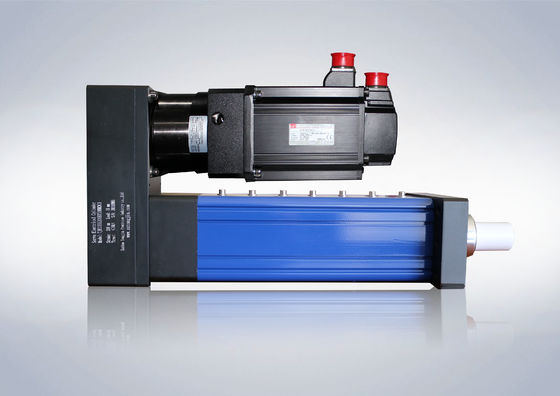

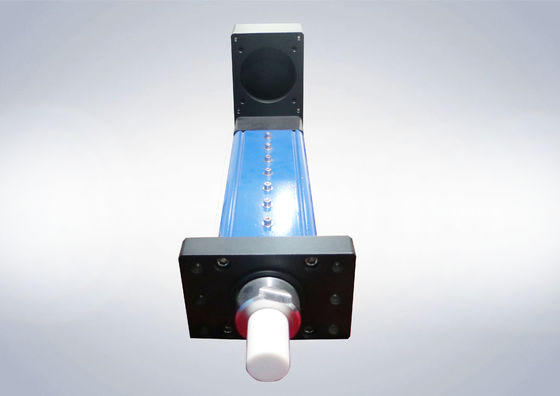

Large Image :  50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,CE
Model Number: TJE135

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time: 3-4 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Material: Aluminium Color: Standard:navy Blue&silvery,others Can Be Customized
Speed: Up To 500mm/s Repeatability: ±0.01mm
Stroke: 50~1200mm Output Force: Up To 50KN
Motor Connection Type: Linear/parallel Internal Anti-rotation: With/without
Screw Lead: 10,20,50mm Load Connection Type: Male,female,U-bolt,ball Head Hinge And Customized

Maintenance-free Linear Actuator,50~1200mm Servo Electric Cylinder With Many Load Connection Types



1. Features:








Material

★ Shell : forging aluminium alloy, smooth ,elegant appearance.
★ Extension Rod : high alloy steel, corrosion resistant.

Precision

★ Usually take both repeatability and motor precision into consideration. Should not take push rod of electric cylinder as guidance for straightness.The customer should design own guide mechanism.

★ Motor being connected parallel will decrease the precision compared with connected directly because it need to through synchronous belt gear.

Velocity
  • Take the lifetime into special consideration under motion in high velocity(more than 200mm/s).The loading ability and precision will both decrease at the same time.
Stroke ★ The stroke of model-selected should be 20-50mm larger than the effective stroke because we need to save space for slowing down and stopping after the push rod meeting the limited switch.Faster speed , larger space.
Thrust
  • Gear drive will bring more thrust than synchronous belt drive under motor in parallel.
Operational Cycle Time
  • Run frequently(more than 50%) or continuously by using ball screw.
Motor Choice

★ AC servo motor: high precision, high velocity ,great thrust and equilibrium step.

★ Stepping motor: high precision, slow velocity and not very great thrust (less than 600kg).

★ Normal DC motor can be implemented to regulate speed but not be positioned.
★ Normal asynchronous motor can't be regulated speed and positioned.











2. Product Model Definition




Example:TJE110 S300 B R 08 B M C 2 P11 O/C N/P



TJE110—Series No.

TJE040:44×44mm
TJE065:64×64mm
TJE075:75×75mm
TJE095:93×93mm
TJE110:111×111mm
TJE135:134×134mm

S300—Effective Stroke

TJE040:50-200mm
TJE065:50-250mm
TJE075:50-600mm
TJE095:50-800mm
TJE110:50-1000mm
TJE135:50-1200mm

B—Screw Type

A:Acme Screw
B:Ball Screw
C:Roller Screw

R—Anti-rotation

R:With
T:Without(TJE040 always without this function )

08—Screw Lead

TJE040:4mm
TJE065:4, 5, 10, 16,20mm
TJE075:4, 5, 10, 20, 40mm
TJE095:4, 5, 6, 8, 10, 25mm
TJE110:5, 6, 8, 10, 20, 32mm
TJE135:10, 20, 50mm

B—Motor Mounting Type
A:Liner
B:Parallel

M—Cylinder Mounting Type

M1:Double side mount
M2:Side turnnion mount
M3:Front flange mount
M4:Rear flange mount
M5:Rear clevis mount
M6:Rear shaft mount
MX:Customized

C —Load Connection Type

C1:Male
C2:Female
C3:U-bolt
C4:Ball head hinge
CX:Customized

2—Number Of Limit Switches

(Default is normally open NPN switch)

O/C—Limit Switches

O:Normally Open
C:Normally Close

N/P—Sensing Type

N:NPN
P:PNP





Mark:
1)In order to ensure the effective stroke, two ends need to be reserved 5mm space.
2)The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.












3. Electrical Servo Cylinder Drive Torque



And Power Selection Table













Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3
Motor Rated Torque [N.M] 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 3.30 4.85 6.62 4.96 7.28 9.92 9.91 14.55 19.85 16.52 24.26 30 30 30 30
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-330 0-330 0-220 0-165 0-110 0-100 0-65 0-100 0-30



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 1.5 2.2 3       1.5 2.2 3 1.5 2.2 3 1.5 2.2 3
Motor Rated Torque [N.M] 4.77 7 9.55       4.77 7 9.55 4.77 7 9.55 4.77 7 9.55
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 3.30 4.85 6.62       9.91 14.55 19.85 16.52 24.26 30 30 30 30
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-330       0-110 0-100 0-65 0-100 0-30



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27 3.97 6.97 10.91 7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-500 0-444 0-330 0-220 0-200 0-130 0-100 0-65



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3 3.5 5.5       3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25       9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27       7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500     0-330 0-220 0-200 0-130 0-100 0-65



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 50
Motor Power [KW] 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.06 1.85 2.91 1.59 2.78 4.37 3.17 5.56 8.73 5.29 9.26 14.56 10.58 18.52 29.11
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-500 0-500 0-500 0-330 0-250 0-165



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 50
Motor Power [KW] 3 3.5 5.5       3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25       9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27       7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500   0-500 0-500 0-330 0-250 0-165













4. Applications





1. Military equipment: radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system, actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.

2. Special equipment: industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.

3. Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.

This type is especially suitable for :
servo pressing, motor assembly production line and you can also purchase our servo pressing software together.



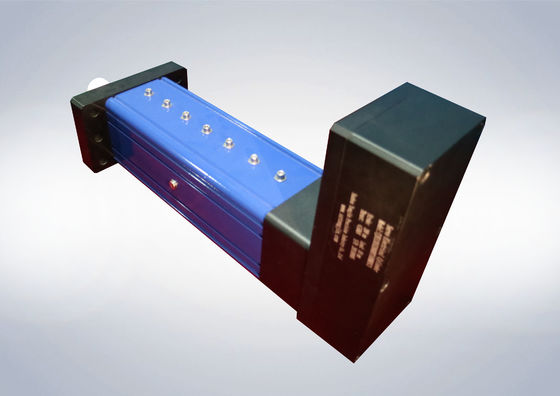

50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V



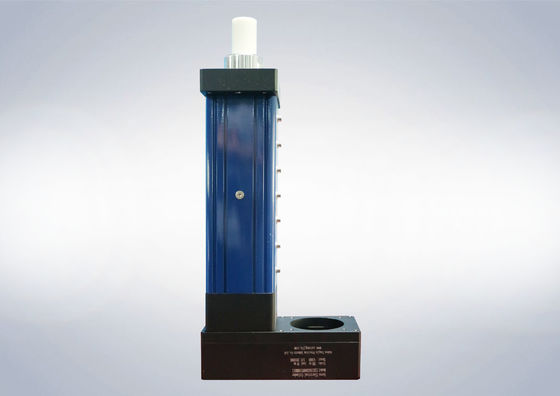

50-1200mm Mini Ball Screw Linear Electric Cylinder With Many Load Connection Types 220V













5. FAQ






Q:How much is your minimum order quantity?
A:1 piece.We have confidence that you are satisfied with our production.

Q:What's the price of the product?
A:The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.

Q:Which conturies and regions do your products export to?
A:Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.

Q:Could you offer us free samples?
A:Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.
