Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision

China Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision supplier
Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision supplier Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision supplier Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision supplier Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision supplier

Large Image :  Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: CE
Model Number: TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 20 pcs per month
Contact Now
Detailed Product Description

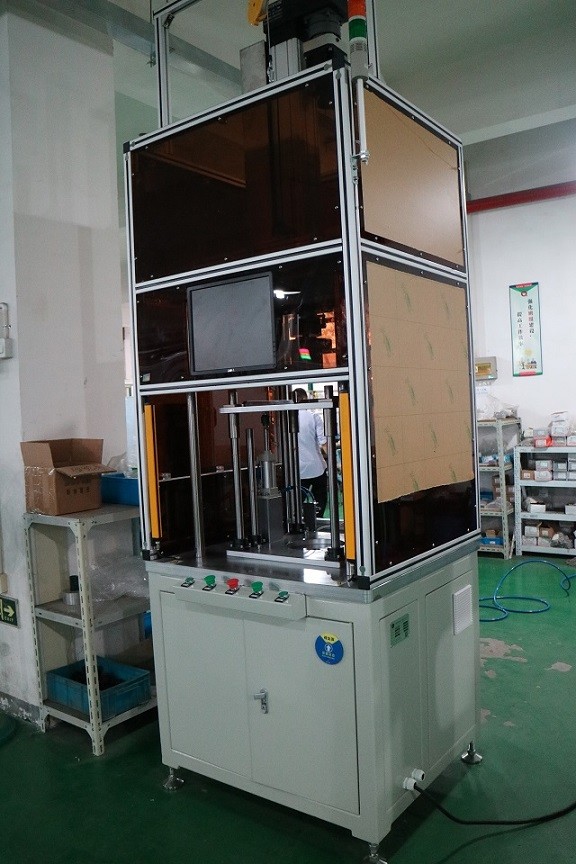

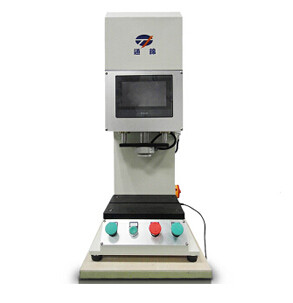

Machine Model: C-type/four-column Type/desktop Type Control Forms: Touch Screen Type/computer Type
Pressure Range: 0.1~250KN Max. Effective Stroke: 500mm
Pressing Mounting Speed: 0~35mm/s Fast Forward/return Speed: 0~100mm/s
Max. Dwell Time: 3000s Repeatablity: ±0.01

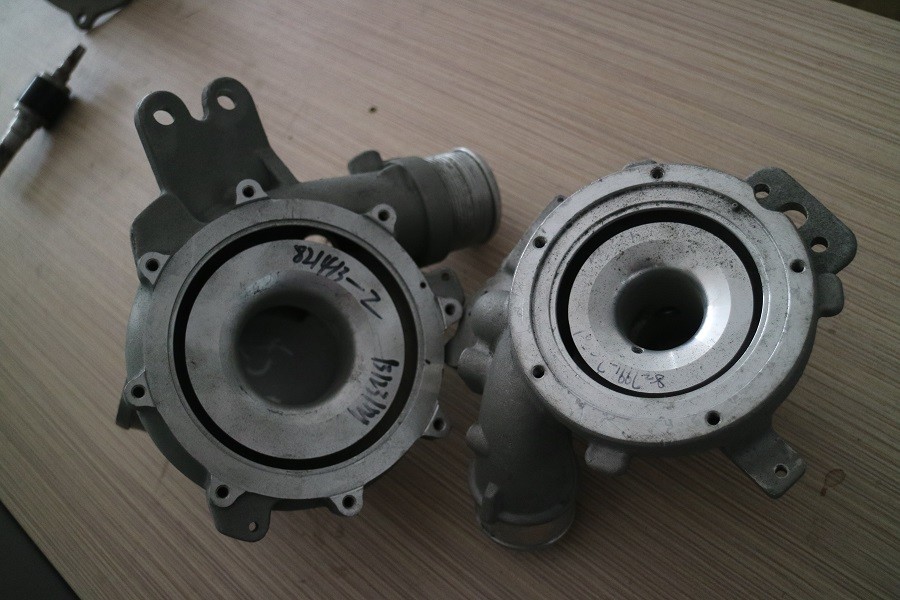

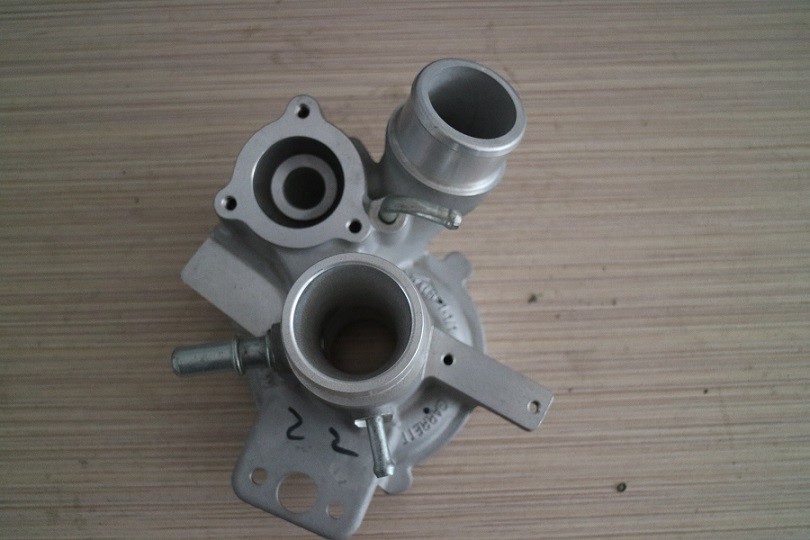

high precision electric press machine for automobile water pump pressing,with exclusive control software



Main Features











1. Diverse pressing mounting modes

--meet high precision production and quality control requirements



★Servo pressing machine can control pressing mounting speed,position and pressure accurately.Set lots of pressing programs including constant pressing speed,precise stop position,precise stop force,precise pressing displacement stop etc. working modes which can meet 2 or more sections pressing mounting working requirements easily.Within the stroke,we can set any stop position precisely and don’t need to use any expensive precision mould to make sure the pressing precision.







2. Online pressing quality control

--meet quality control and data management during the whole process



1) After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.



2) With the function of checking the position upon bearing force to test whether it works and the direction is right or not.



3 )With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judge whether it can satisfy the set quality control conditions or not.



4) With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.









3. Automatic precision compensation

--meet the the precise assembly requirement under the special operating condition



The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.

Environmental,energy-efficient,safe and low operating cost



1) The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.



2) Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.









4. Environmental,energy-efficient,safe and low operating cost



★The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.



★Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.







Dimensions







Automobile Water Pump Servo Electric Press With Exclusive Control Software High Precision











Model Stroke(mm) D(mm) S(mm) L2(mm) W2(mm) H2(mm) L1(mm) W1(mm) H1(mm)
TJ-SP-10 200 150 300 350 300 770 670 750 1695
TJ-SP-20 200 150 300 350 300 770 670 750 1715
TJ-SP-30 200 200 400 450 400 770 770 900 1910
TJ-SP-50 200 200 400 450 400 770 770 950 1958
TJ-SP-70 200 250 400 550 500 770 870 1100 2095
TJ-SP-100 200 300 400 650 600 770 970 1200 2180







★Only for reference.Specific parameters are subject to the agreement.

































Comparison









Compared with hydraulic/pneumatic pressing mounting machines,servo machines have many obvious advantages.





  servo hydraulic pneumatic
pressure range 0.1~400KN 200~5000KN 1~20KN
pressure precision 0.2 % F.S 2%F.S 2%F.S
repeatability 0.01mm 0.02mm 0.02mm
max. speed 250 mm/s 30 mm/s 50 mm/s
working life 10 million times 10 years (need maintenance) 5-10 years(need maintenance)
stroke 10-500 mm 200-600 mm 10-100 mm
energy consumption

energy

saving

high consumption high consumption
maintenance easy&seldom hard&often often
environmental nature non-pollution much pollution much noise











































Parameters Table















Items/Type Unit

TJ-SP

-05





Maximum value KN 5

Allowance

range

KN 0.5-5

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 200

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s



0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 0.75
Voltage Tri-phase V 380/220












Items/Type Unit

TJ-SP

-100









Pressure

range







Maximum value KN 100

Allowance

range

KN 10-100

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 500

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s







0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 7.5
Voltage Tri-phase V 380/220






★Only for reference.The stroke is optional,specific parameters are subject to the agreement.
