Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S²

Place of Origin China
Brand Name TJ
Certification ISO9001:2008,ISO14001:2004
Model Number TJS XX SXXX VXX AXX LX EX X
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details non wooden box
Delivery Time 6~8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 10 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Repeatability ±0.1 Velocity ≤3m/s
Load ≤6t Accelertaion ≤5m/s²
Stroke ≤70m Lubricating System Manual/automatic
Dustproof Modes Sheet Metal Cover/organ Cover Drag Chain Material Engineering Plastics/steel/stainless Steel
High Light

robot track system

,

robot 7 axis

,

Manual Lubricating Robot Rail System

Leave a Message
Product Description





























About robot linear track

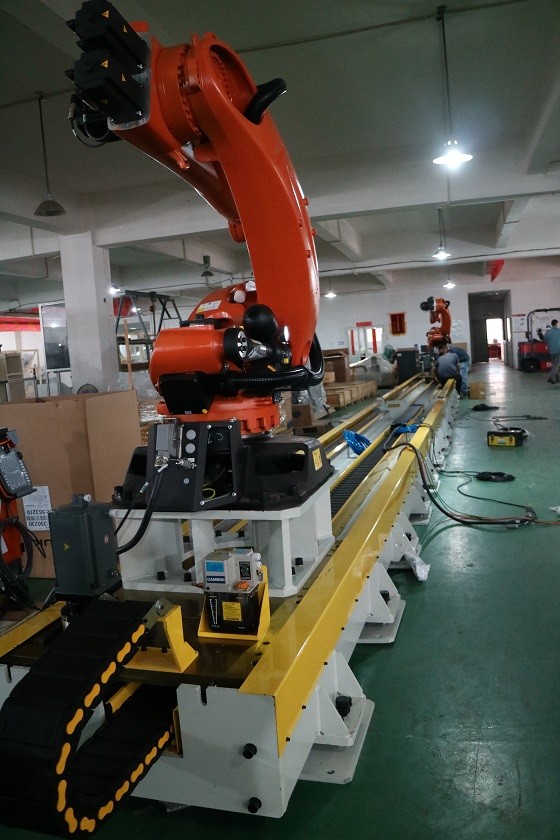

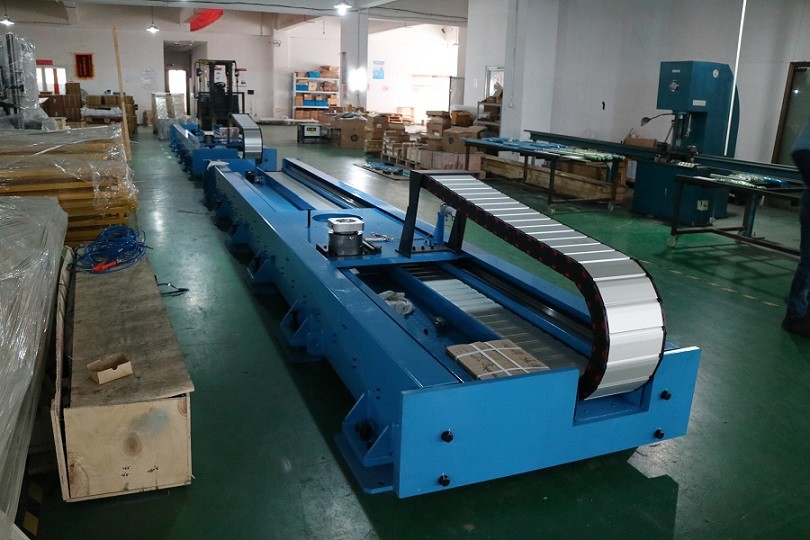

The new robot 7th-axis(robot linear track) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.



















Model definition











TJS   ②05   ③S040   ④V08   ⑤A08   ⑥L1   ⑦E1   ⑧2











①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others





















Why choose us?





1. Product advantages



★Customized travel

★Flexible installation, high precision

★High safety

★Environmental Protection









2. Mature after-sales system



Our professional technicians will install and adjust products in site and make sure the rail run normally.Our company promises one year warranty and lifetime maintenance,we will arrange our technicians to maintenance as soon as possible once the device is out of order to make sure the customers can use our product without any worries.









3. Experienced in the industry



Our company is experienced in 7th robot and system integration .We have focused on this product for more than 3 years and met multiple different customers’ requirements.









4. Extensive cooperation with robot manufacturers



We have a good cooperative relationship with some robot manufacturers such as FANUC,ABB,YASKAWA,Panda,ESTUN,EFORT etc.So if you also need us provide the robot,maybe we take advantages in the price of the robot.





















Key customers





Manual Lubricating Robot Rail System With Organ Shield Accelertaion ≤5m/S² 0









Would you like to be the next one?
