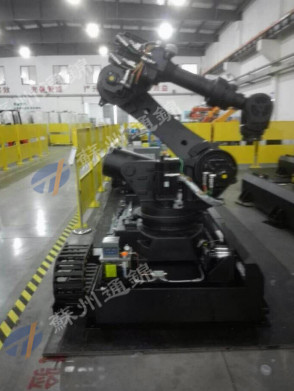

Cutting Industry Robot Rail System , 7th Robot Axis Flexible To Install

Place of Origin China
Brand Name TJ
Certification ISO9001:2008,ISO14001:2004
Model Number TJS XX SXXX VXX AXX LX EX X
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details non wooden box
Delivery Time 6~8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 10 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Repeatability ±0.1 Velocity ≤3m/s
Load ≤6t Accelertaion ≤5m/s²
Stroke ≤70m Lubricating System Manual/automatic
Dustproof Modes Sheet Metal Cover/organ Cover Drag Chain Material Engineering Plastics/steel/stainless Steel
Highlight

robot 7 axis

,

7th robot axis

,

Cutting Industry Robot Rail System

Leave a Message
Product Description







About robot linear track









The new robot 7th-axis(robot linear track) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.













Model definition





TJS    05   S040   V08   A08    L1   E1   2



  ↓        ↓       ↓         ↓       ↓        ↓     ↓     ↓



 ①       ②     ③       ④     ⑤      ⑥    ⑦   ⑧









①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others























Product advantages







★Customized travel. The 7th axis can be extended to 70 m according to the customer requirement.



★Flexible installation, high precision. The 7th axis is bolted to the ground by using adjustable floor-mounting elements. This ensures a fast and accurate installation and allows for uneven ground as well as obstacles such as wiring and tubing.



★High safety. We have to set the limit switch and add the mechanical safety limit to prevent the accidental derailment of the articulate robot and ensure the safe and reliable operation of the robot.



★Environmental Protection.On 7th axis we can assemble with organ shield for guide rail, dust prevention and non-pollution, easy maintenance.















Length configurations





single length is 7m, travel is 6m
some differences for different articulate robot













Options/Accessories




★Control system related to motion



★Dustproof components:

(1)organ shield

(2)Sheet metal guard



★GAMBINI lubrication unit for gears and racks



★Automatic centralized lubrication system for guide rails



★Segment-based travel switch



★High-precision displacement grating scale
