Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover

Good quality Linear Electric Cylinder for sales
Good quality Linear Electric Cylinder for sales
I'm Online Chat Now

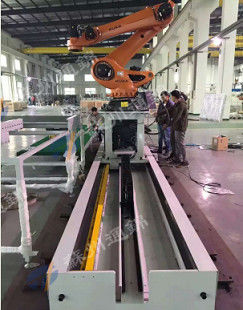

Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover

China Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover supplier
Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover supplier Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover supplier

Large Image :  Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,ISO14001:2004
Model Number: TJS XX SXXX VXX AXX LX EX X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Repeatability: ±0.1 Velocity: ≤3m/s
Load: ≤6t Accelertaion: ≤5m/s²
Stroke: ≤70m Lubricating System: Manual/automatic
Dustproof Modes: Sheet Metal Cover/organ Cover Drag Chain Material: Engineering Plastics/steel/stainless Steel













Structure composition





Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover













Model definition







TJS    05   S040   V08   A08    L1   E1   2



  ↓        ↓       ↓         ↓       ↓        ↓     ↓     ↓



 ①       ②     ③       ④     ⑤      ⑥    ⑦   ⑧











①TJ 7th - Axis Robot

③Stroke



S004:0.4m

S040:4m

A300:70m

Select any value within 79mm.



⑤Acceleration



A05:0.5m/s²

A08:0.8m/s²

A10:1.0m/s²

A15:1.5m/s²



⑦Dustproof modes



E1:sheet metal cover

E2:organ cover

E3:others



②Load



0.8:800kg

15:1.5t

30:3t



④Speed



V08:0.8m/s

A10:1m/s

Select any value within 3m/s.



⑥Lubricating system



L1:manual

L2:automatic

L3:others



⑧Drag chain



1:engineering plastics

2:steel

3:stainless steel

4:others



























Length configurations







single length is 7m, travel is 6m
some differences for different articulate robot























Options/Accessories








★Control system related to motion



★Dustproof components:

(1)organ shield

(2)Sheet metal guard



★GAMBINI lubrication unit for gears and racks



★Automatic centralized lubrication system for guide rails



★Segment-based travel switch



★High-precision displacement grating scale































Key customers



Long Working Life Sorting Robot Linear Track With Long Stroke ≤70m Organ Cover





Would you like to be the next one?
