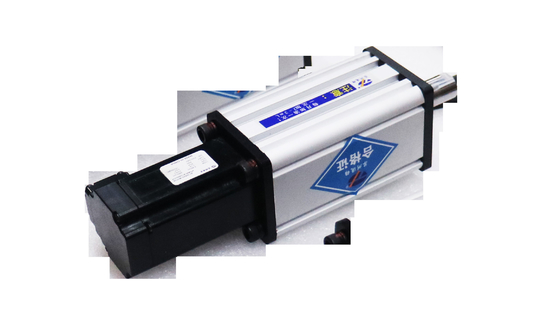

50~1200mm Direct Connection/Belt Connection Servo Electric Cylinder,Aluminum Alloy Material Beautiful And Light
| Place of Origin | China |
|---|---|
| Brand Name | TJ |
| Certification | ISO9001:2008,CE |
| Model Number | TJE135 |
| Minimum Order Quantity | 1 pcs |
| Price | negotiable |
| Packaging Details | external packing:carton or non wooden box;cushion packing:EPE foam |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T,30% payment in advance,70% before delivery |
| Supply Ability | 800 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminium | Color | Standard：navy Blue&silvery,others Can Be Customized |
|---|---|---|---|
| Speed | Up To 500mm/s | Repeatability | ±0.01mm |
| Stroke | 50~1200mm | Output Force | Up To 50KN |
| Motor Connection Type | Linear/parallel | Internal Anti-rotation | With/without |
| Screw Lead | 10,20,50mm | Load Connection Type | Male,female,U-bolt,ball Head Hinge And Customized |
| Highlight | electric cylinder actuators,electric cylinder linear actuator |
||
Product Description
1.Product Model Definition
pictures..............................................
Example: TJE075 S100 B R 05 A M C 2 P11 O/C N/P
|
TJE075—Series No.
TJE040:44×44mm TJE065:64×64mm TJE075:75×75mm TJE095:93×93mm TJE110:111×111mm TJE135:134×134mm |
S100—Effective Stroke
TJE040:50-200mm TJE065:50-250mm TJE075:50-600mm TJE095:50-800mm TJE110:50-1000mm TJE135:50-1200mm |
|
B—Screw Type
A:Acme Screw B:Ball Screw C:Roller Screw |
R—Anti-rotation
R:With T:Without(TJE040 always without this function ) |
|
05—Screw Lead
TJE040:4mm TJE065:4, 5, 10, 16,20mm TJE075:4, 5, 10, 20, 40mm TJE095:4, 5, 6, 8, 10, 25mm TJE110:5, 6, 8, 10, 20, 32mm TJE135:10, 20, 50mm |
A—Motor Mounting Type
B:Parallel |
|
M—Cylinder Mounting Type
M1:Double side mount M2:Side turnnion mount M3:Front flange mount M4:Rear flange mount M5:Rear clevis mount M6:Rear shaft mount MX:Customized |
C —Load Connection Type
C1:Male C2:Female C3:U-bolt C4:Ball head hinge CX:Customized |
|
2—Number Of Limit Switches
(Default is normally open NPN switch) |
O/C—Limit Switches
O:Normally Open C:Normally Close |
|
N/P—Sensing Type
N:NPN P:PNP |
| Grating ruler + Force sensor |
|
Force sensor:① 4-20mA ② 0-10V Grating ruler:① TTL 24V ② RS422(5V Difference) |
|
If lacking of the part,it means without either grating ruler or force sensor. P01:Only with grating ruler TTL(24V) P10:Only with grating ruler 4-20mA |
Mark:
1)In order to ensure the effective stroke, two ends need to be reserved 5mm space.
2)The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.
2. Electric Cylinder Selection Guidance
tables...............................
3. Peripheral Parts List
| Name | Explanation |
| 1- HNC/CRHNC Foot mounting part | When the motor is mounted parall,this part is used for installing bearings and reducer end caps. |
| 2- FNC/CRFNG Flange mounting part | When the motor is mounted parall,this part is used for installing bearings and reducer end caps. |
| 3- ZNCF/CRZNG Trunnion mounting part | When the motor is mounted parall,this part is used for installing bearings and reducer end caps. |
| 4- LNZG/CRLNZG Trunnion bearing | For trunnion mounted on the cylinder block. |
| 5- SNC Double clevis bearing | For the motor mounted parallel. |
| 6- LSNG Spherical hinge clevis bearing | For the motor mounted parallel,with spherical bearing. |
| 7- LSNSG Spherical hinge clevis bearing | For the motor mounted parallel,with spherical bearing, welding synthesis. |
| 8- SNCS Double clevis mounting part | For the motor mounted parallel,with spherical bearing. |
| 9- LBG Double clevis bearing | For the motor mounted parallel,with spherical bearing. |
| aJ- Double clevis mounting part | For the motor mounted parallel. |
| aA- Double clevis mounting part | For the motor mounted parallel,with spherical bearing. |
| aB- Double clevis mounting part | For the motor mounted parallel. |
| aC- Clevis bearing | For the motor mounted parallel. |
| aD- Spherical hinge Clevis bearing | For the motor mounted parallel,with spherical bearing. |
| aE- Trunnion bearing | For being mounted to any position of the cylinder.If the motor is mounted parallel,the mounting position couldn’t near the motor. |
| aF- Foot mounting part | For the motor mounted axially. |
| aG- Joint bearing | With spherical bearing. |
| aH- Connecting flange | For compensating radial deviation. |
| aI- Double clevis | For the cylinder swing in a plane. |
| bJ- Self in connection part | For compensating radial and angular deviations. |
| bA- Right angle spherical hinge clevis bearing | For joint bearing. |
| bB- Double clevis | For the cylinder swing installation. |
| bC- Guiding unit | Prevent cylinder from twisting under high torque |
| bD- Proximity Switches | For testing the position, can be integrated in the sensor mounting slot. |
| bE- Slot cover | For preventing dust from entering. |
| bF- Parallel installation components | For the motor mounted parallel. |
| bG- Axial installation components | For the motor mounted axially. |
4. Applications
★ Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.
★ Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.
★ Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.
This type is especially suitable for :
servo pressing, motor assembly production line and you can also purchase our servo pressing software together.
