Long Working Life Servo Electric Cylinder With Many Load Connection Types And Ball Screw Drive

  • Long Working Life Servo Electric Cylinder With Many Load Connection Types And Ball Screw Drive
  • Long Working Life Servo Electric Cylinder With Many Load Connection Types And Ball Screw Drive
Place of Origin China
Brand Name TJ
Certification ISO9001:2008,CE
Model Number TJER190
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3-4 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 800 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminium Color Standard：navy Blue&silvery,others Can Be Customized
Speed Up To 250mm/s Repeatability ±0.01mm
Stroke 50~2000mm Output Force Up To 150KN
Motor Connection Type Linear/parallel Internal Anti-rotation With/without
Screw Lead 10,20mm Load Connection Type Male,female,U-bolt,ball Head Hinge And Customized
High Light

Load Connection Electric Cylinder Actuators

,

250mm/s linear servo actuator

,

Long Working Life Servo Electric Cylinder
Leave a Message
Product Description

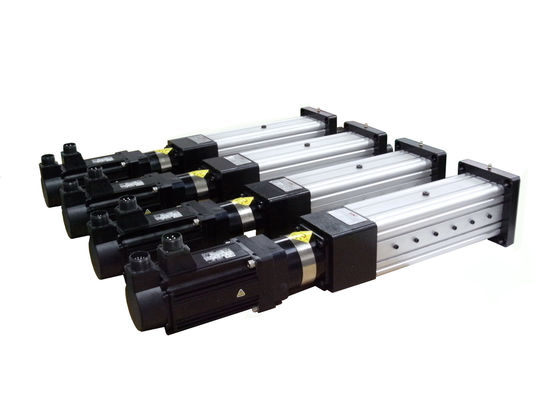

Long Working Life Servo Electric Cylinder With Many Load Connection Types and Ball Screw Drive



1. Product Model Definition


pictures..............................................





Example: TJER160 S300 B R 05 A M C 10 05 0 P11 O/C N/P



TJER160—Series No.


TJER160

TJER190

TJER220

TJER250

S300—Effective Stroke



TJER160:50~1500mm

TJER190:50~2000mm

TJER220:50~2500mm

TJER250:50~3000mm

B—Screw Type


A:Acme Screw

B:Ball Screw

C:Roller Screw

R—Anti-rotation


R:With

T:Without

05—Screw Lead
TJER160:10,20mm

TJER190:10,20mm

TJER220:10,20mm

TJER250:10,20mm

A—Motor Mounting Type
A:Liner

B:Parallel

M—Cylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized



C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

10—Power



01:100W

02:200W

04:400W

08:750W

10:1000W

20:2000W

30:3000W

05—Reduction Ratio


03:Three-to-one

05:Five-to-one

10:Ten-to-one

20:Twenty-to-one

2—Number Of Limit Switches



(Default is normally open NPN switch)

O/C—Limit Switches



O:Normally Open

C:Normally Close



N/P—Sensing Type



N:NPN

P:PNP





Mark:

1) In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2) The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.





2.Electrical Servo Cylinder Drive Torque And Power Selection Table





Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5
Motor Rated Torque [N.M] 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81
Motor Rated Speed [r/min] 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Cylinder Rated Force [KN] 9.25 14.56 19.84 13.88 21.84 29.76 27.75 43.68 59.52 46.26 72.8 99.2 92.51 145.6 150
Cylinder Max. Force [KN] 150
Cylinder Speed [mm/s] 0-250 0-220 0-110 0-65 0-30



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 3.5 5.5 7.5       3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5
Motor Rated Torque [N.M] 16.7 26.25 35.81       16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81
Motor Rated Speed [r/min] 2000 2000 2000       2000 2000 2000 2000 2000 2000 2000 2000 2000
Cylinder Rated Force [KN] 9.25 14.56 19.84       27.75 43.68 59.52 46.26 72.8 99.2 92.51 145.6 150
Cylinder Max. Force [KN] 150
Cylinder Speed [mm/s] 0-250 0-220 0-110 0-65 0-30



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5
Motor Rated Torque [N.M] 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81
Motor Rated Speed [r/min] 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Cylinder Rated Force [KN] 4.63 7.27 9.92 6.94 10.91 14.88 13.88 21.82 29.75 23.13 36.36 49.59 46.26 72.72 99.18
Cylinder Max. Force [KN] 100
Cylinder Speed [mm/s] 0-250 0-220 0-110 0-65 0-30



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5 3.5 5.5 7.5
Motor Rated Torque [N.M] 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81 16.7 26.25 35.81
Motor Rated Speed [r/min] 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000
Cylinder Rated Force [KN] 4.63 7.27 9.92 6.94 10.91 14.88 13.88 21.82 29.75 23.13 36.36 49.59 46.26 72.72 99.18
Cylinder Max. Force [KN] 150
Cylinder Speed [mm/s] 0-250 0-220 0-110 0-65 0-30







3. Applications





★ Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



★ Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



★ Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

servo pressing, motor assembly production line and you can also purchase our servo pressing software together.



pictures...................................





4. Compared With Hydraulic Cylinder & Pneumatic Cylinders



  Items Electric cylinder Hydraulic cylinder Pneumatic Cylinders









Cost comparison

 Operations Convenient Complex Complex

Environment

influence

 Environmental Oil leak High noise
Safety Safe Oil leak Gas leak
Energy loss Low loss High loss High loss
Lifetime Very Long Can be long with proper maintenance Can be long with proper maintenance
Cost performance Excellent Ordinary Ordinary
Maintenance Almost maintenance free Frequent & high cost Regular & high cost











Function comparison

 Velocity Very high Medium High
Acceleration Very high Medium High
Rigidity Very high Low Low
Load ability High High Medium
Shock resistance ability



Good



Good



Ordinary
Efficiency ＞90% ＜50% ＜50%
Location control Easy Hard Hard
Location precision Very high Medium Medium





5. Maintenance



Electric cylinder is refueled with lubricating grease GB7324-1994 general lithium base 3 lubricating grease when leaves factory. After electric cylinder has run for 300 hours, refill the lubricating grease. Refueling frequency, per 2000hours one time as usual, it is determined on basis of the operating environment and day-to-day operational time. Refueling method: open the filler hole on the shell of electric cylinder, turn the screw to find the filler hole on the screw nut and refuel lubricating grease. Requirement for lubricating grease:GB7324-1994 general lithium base 3 lubricating grease.
