Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision

China Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision supplier
Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision supplier Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision supplier Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision supplier Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision supplier

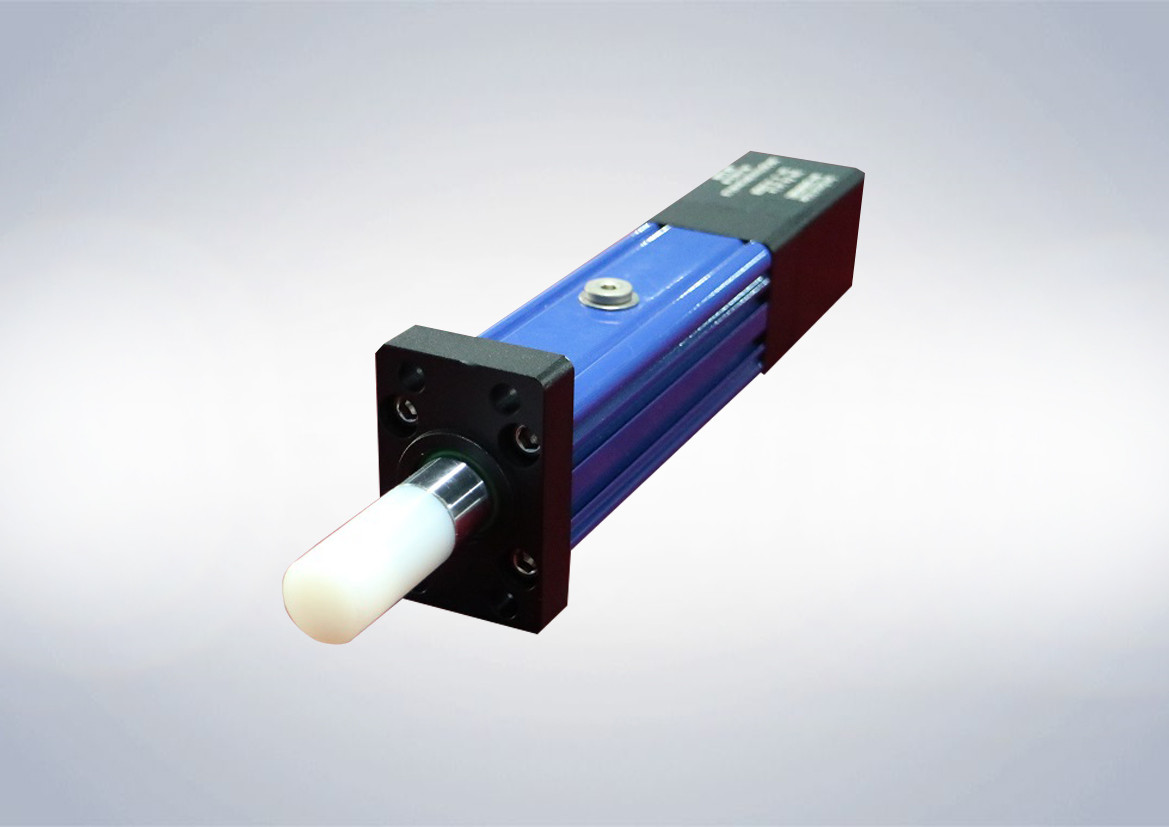

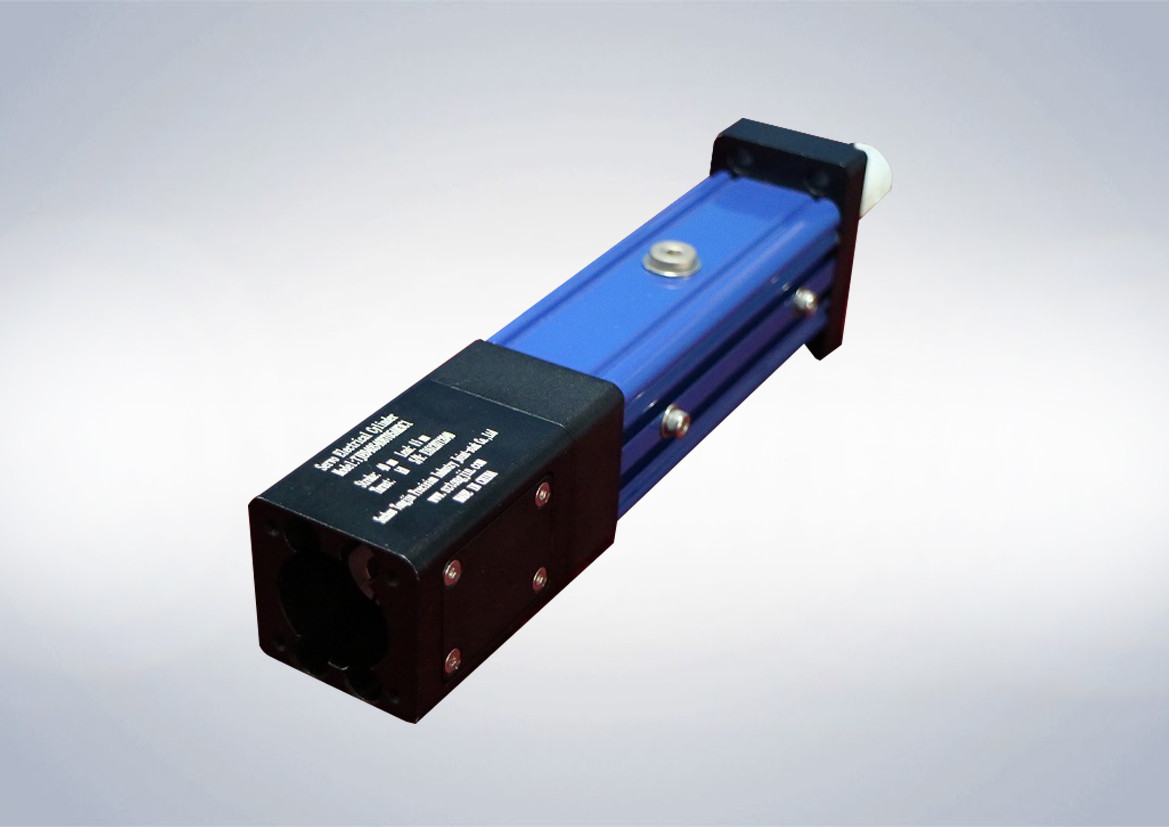

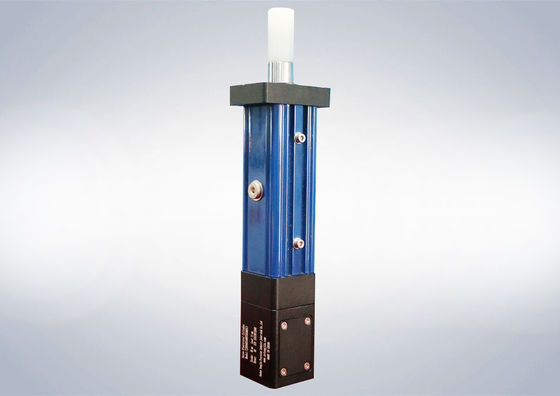

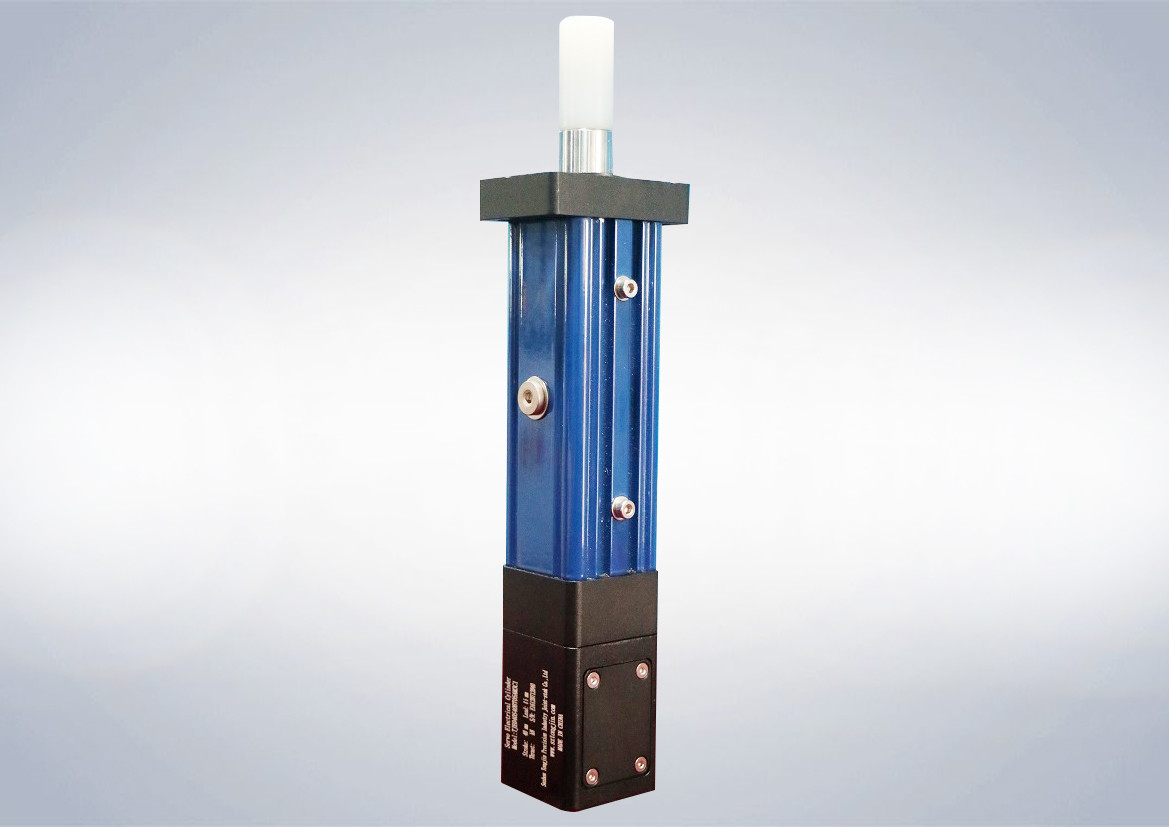

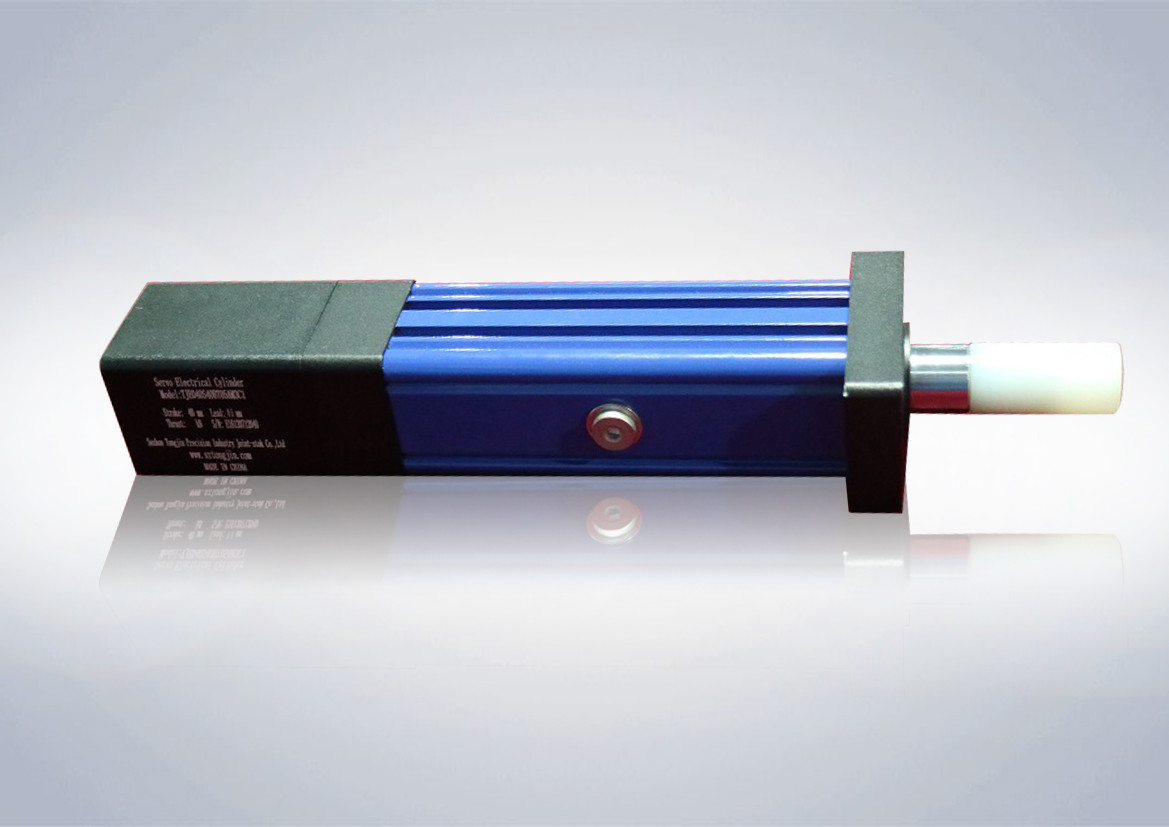

Large Image :  Anti - Rotation 220V Linear Electric Cylinder With Force Sensor High Precision

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,CE
Model Number: TJE040

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time: 3-4 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Material: Aluminium Color: Standard:navy Blue&silvery,others Can Be Customized
Speed: Up To 200mm/s Repeatability: ±0.01mm
Stroke: 50~200mm Output Force: Up To 0.65KN
Motor Connection Type: Linear/parallel Internal Anti-rotation: With/without
Screw Lead: 4mm Load Connection Type: Male,female,U-bolt,ball Head Hinge And Customized

Fast Response Mini Linear Actuator With Grating Ruler/Force Sensor,High Precision Repeatability:±0.01mm

1. Product Model Definition





Example:TJE110 S300 B R 08 B M C 2 P11 O/C N/P



TJE110Series No.



TJE040:44×44mm

TJE065:64×64mm

TJE075:75×75mm

TJE095:93×93mm

TJE110:111×111mm

TJE135:134×134mm

S300Effective Stroke



TJE040:50-200mm

TJE065:50-250mm

TJE075:50-600mm

TJE095:50-800mm

TJE110:50-1000mm

TJE135:50-1200mm

BScrew Type



A:Acme Screw

B:Ball Screw

C:Roller Screw


RAnti-rotation



R:With

T:Without(TJE040 always without this function )



08Screw Lead



TJE040:4mm

TJE065:4, 5, 10, 16,20mm

TJE075:4, 5, 10, 20, 40mm

TJE095:4, 5, 6, 8, 10, 25mm

TJE110:5, 6, 8, 10, 20, 32mm

TJE135:10, 20, 50mm

BMotor Mounting Type


A:Liner

B:Parallel

MCylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized



C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

2—Number Of Limit Switches



(Default is normally open NPN switch)

O/CLimit Switches



O:Normally Open

C:Normally Close



N/PSensing Type



N:NPN

P:PNP





Mark:

1) In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2) The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.


pictures..............................................






2. Electrical servo cylinder drive torque and power selection table





Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5
Screw Lead [mm] 4
Motor Power [KW] 01 0.15 0.1 0.15 0.1 0.15 0.1 0.15
Motor Rated Torque [N.M] 0.32 0.48 0.32 0.48 0.32 0.48 0.32 0.48
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.45 0.65 0.65 0.65 0.65 0.65 0.65 0.65
Cylinder Max. Force [KN] 0.65
Cylinder Speed [mm/s] 0-200 0-130 0-65 0-40



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5
Screw Lead [mm] 4
Motor Power [KW] 01 0.15 0.1 0.15 0.1 0.15 0.1 0.15
Motor Rated Torque [N.M] 0.32 0.48 0.32 0.48 0.32 0.48 0.32 0.48
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.45 0.65 0.65 0.65 0.65 0.65 0.65 0.65
Cylinder Max. Force [KN] 0.65
Cylinder Speed [mm/s] 0-200 0-130 0-65 0-40







3. Applications





1. Military equipment: radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system, actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



2. Special equipment: industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



3. Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

food service industry(compared with hydraulic cylinder&pneumatic cylinder,it is much clenaner).













4. Features:




TJE series electric cylinders adopt advanced modular design, with the feature of :

★ Compact structure and small dimension

★ High performance, low inertness, low noise ,high response

★ High reliability and long operating life

★ Application technology of both ball screws and roller screws

★ Convenient assembly and use, energy saving,simple maintenance




Material

★ Shell : forging aluminium alloy, smooth ,elegant appearance.

★ Extension Rod : high alloy steel, corrosion resistant.

Precision

★ Usually take both repeatability and motor precision into consideration. Should not take push rod of electric cylinder as guidance for straightness.The customer should design own guide mechanism.

★ Motor being connected parallel will decrease the precision compared with connected directly because it need to through synchronous belt gear.

Velocity
  • Take the lifetime into special consideration under motion in high velocity(more than 200mm/s).The loading ability and precision will both decrease at the same time.
Stroke ★ The stroke of model-selected should be 20-50mm larger than the effective stroke because we need to save space for slowing down and stopping after the push rod meeting the limited switch.Faster speed , larger space.
Thrust
  • Gear drive will bring more thrust than synchronous belt drive under motor in parallel.
Operational Cycle Time
  • Run frequently(more than 50%) or continuously by using ball screw.
Motor Choice

★ AC servo motor: high precision, high velocity ,great thrust and equilibrium step.

★ Stepping motor: high precision, slow velocity and not very great thrust (less than 600kg).

★ Normal DC motor can be implemented to regulate speed but not be positioned.

★ Normal asynchronous motor can't be regulated speed and positioned.


Special Production(Optional):
★ Special installation,preservation,dust prevention, dampproof

★ High&low temperature environment

★ Waterproof at sea, anti-explosion work

★ Linear displacement sensor

★ Pressure sensor

★ Resistance swing mechanism

★ Planetary gearbox

★ Motor: AC servo motor, DC brushless motor, stepping motor,DC motor, AC frequency conversion motor, etc.











5. FAQ





Q:How much is your minimum order quantity?

A:1 piece.We have confidence that you are satisfied with our production.



Q:What's the price of the product?

A:The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.



Q:Which conturies and regions do your products export to?

A:Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.



Q:Could you offer us free samples?

A:Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.
