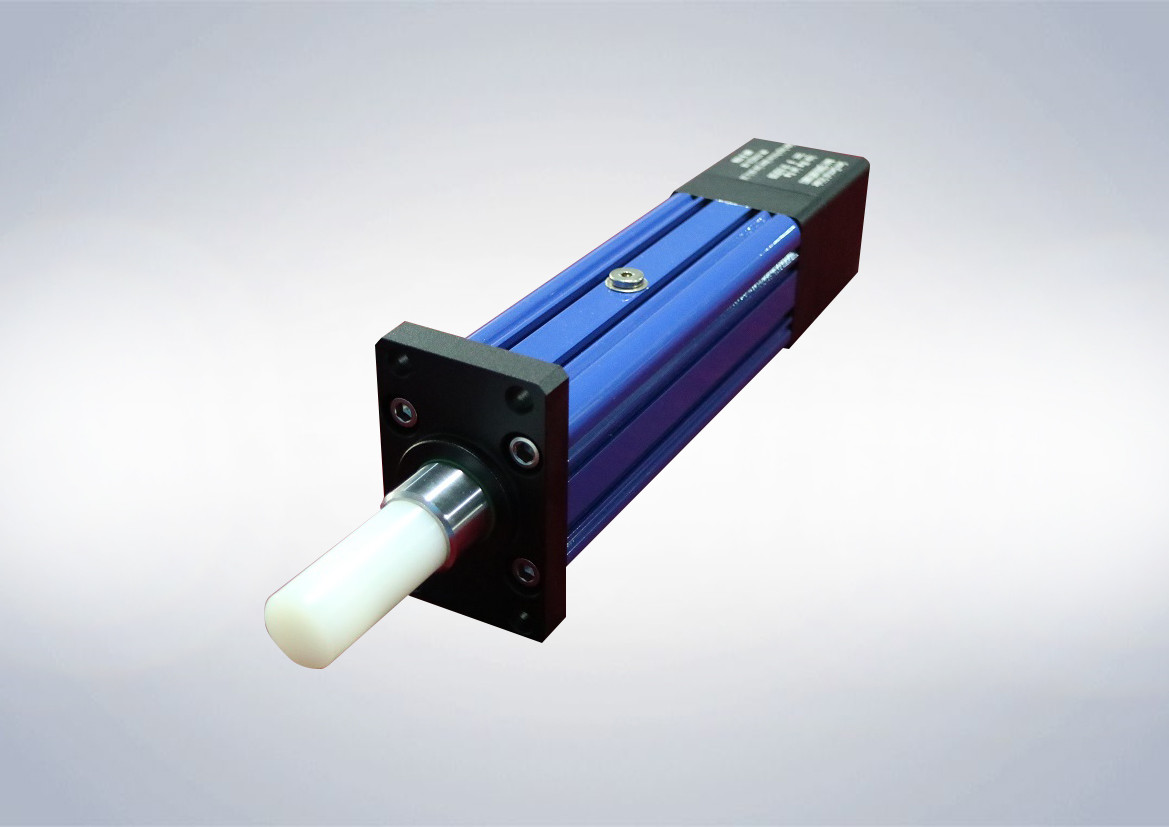

Large Image :  220V Less Noise Electric Cylinder Linear Actuator , Anti Rotation Cylinder Actuating Linear

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9001:2008,CE

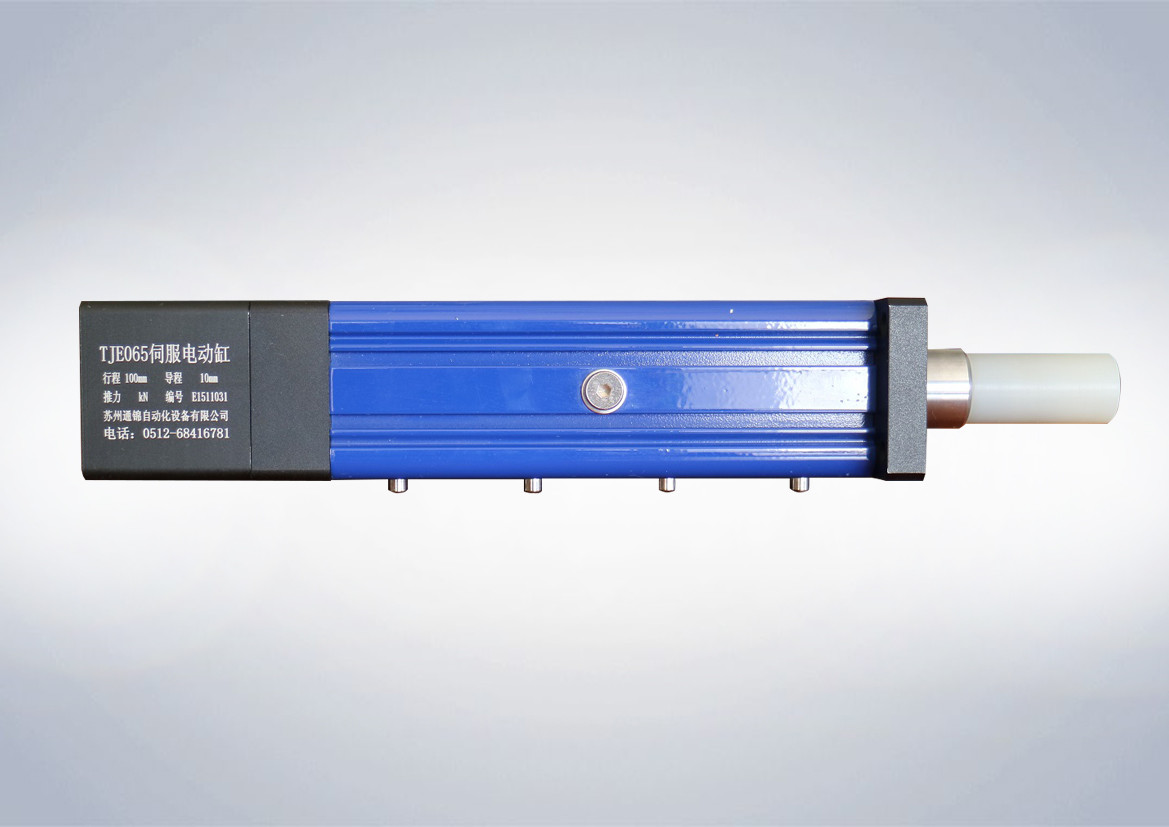

Model Number: TJE065

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time: 3-4 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Material: Aluminium Color: Standard:navy Blue&silvery,others Can Be Customized
Speed: Up To 250mm/s Repeatability: ±0.01mm
Stroke: 50~250mm Output Force: Up To 4.5KN
Motor Connection Type: Linear/parallel Internal Anti-rotation: With/without
Screw Lead: 4,5,10,16,20mm Load Connection Type: Male,female,U-bolt,ball Head Hinge And Customized

High Speed & Less Noise Electric Cylinder,50~250mm Linear Actuator With Anti-rotation

1. Product Model Definition







Example:TJE110 S300 B R 08 B M C 2 P11 O/C N/P



TJE110—Series No.



TJE040:44×44mm

TJE065:64×64mm

TJE075:75×75mm

TJE095:93×93mm

TJE110:111×111mm

TJE135:134×134mm

S300—Effective Stroke



TJE040:50-200mm

TJE065:50-250mm

TJE075:50-600mm

TJE095:50-800mm

TJE110:50-1000mm

TJE135:50-1200mm

B—Screw Type



A:Acme Screw

B:Ball Screw

C:Roller Screw

R—Anti-rotation



R:With

T:Without(TJE040 always without this function )

08—Screw Lead



TJE040:4mm

TJE065:4, 5, 10, 16,20mm

TJE075:4, 5, 10, 20, 40mm

TJE095:4, 5, 6, 8, 10, 25mm

TJE110:5, 6, 8, 10, 20, 32mm

TJE135:10, 20, 50mm

B—Motor Mounting Type


A:Liner

B:Parallel

M—Cylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized

C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

2—Number Of Limit Switches



(Default is normally open NPN switch)

O/C—Limit Switches



O:Normally Open

C:Normally Close

N/P—Sensing Type



N:NPN

P:PNP





Mark:

1) In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2) The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.



















2. Electric Cylinder Selection Guidance








(1) The relationship between the motor output torque and the output force of the electric cylinder:


F=T×η×2π×R/L
★ F: electric cylinder output force, Unit: Kn

★ T: motor output torque, Unit: Nm

★ R: Reduction ratio

★ L: Screw lead,Unit: mm

★ η: efficiency (generally the total efficiency is 85%, but the actual efficiency will chage,it is based on the actual use conditions)





(2) The calculation of the average load

Average load means:A cube average value be calculated according to the force,speed,time in different working areas during a working cycle.


The average load of the electric cylinder is calculated as follows:


Adobe Systems






(3) Electrical servo cylinder drive torque and power selection table



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 4
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.76 3.53 2.65 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-200 0-130 0-65 0-40 0-20



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 4
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.76 3.53     4.5 4.5 4.5 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-200   0-65 0-40 0-20



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 5
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.41 2.82 2.12 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250 0-165 0-80 0-50 0-25



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 5
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.41 2.82     4.5 4.5 4.5 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250   0-80 0-50 0-25



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.71 1.41 1.06 2.12 2.12 4.5 3.53 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250 0-250 0-160 0-100 0-50



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.71 1.41     2.12 4.5 3.53 4.5 3.53 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250   0-160 0-100 0-50



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 16
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.44 0.88 0.66 1.32 1.32 2.65 2.21 4.5 4.5 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250 0-250 0-250 0-160 0-80



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 16
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.44 0.88     0.66 1.32 1.32 2.65 2.21 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250   0-250 0-160 0-80



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.35 0.71 0.53 1.06 1.06 2.12 1.77 3.53 3.53 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250 0-250 0-250 0-200 0-100



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 0.4 0.8     0.4 0.8 0.4 0.8 0.4 0.8
Motor Rated Torque [N.M] 1.27 2.55     1.27 2.55 1.27 2.55 1.27 2.55
Motor Rated Speed [r/min] 3000 3000     3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 0.35 0.71     1.06 2.12 1.77 3.53 3.53 4.5
Cylinder Max. Force [KN] 4.5
Cylinder Speed [mm/s] 0-250   0-250 0-200 0-100














3. Application areas:







(1) Military equipment: radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system, actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



(2) Special equipment: industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



(3) Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

(1) warp knitting machine, fast speed and quick response

(2) servo pressing, motor assembly production line and you can also purchase our servo pressing software together.

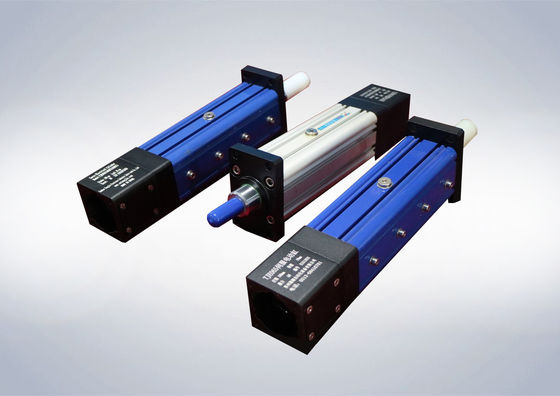

220V Less Noise Electric Cylinder Linear Actuator , Anti Rotation Cylinder Actuating Linear









4. Maintenance









★ Electric cylinder is refueled with lubricating grease GB7324-1994 general lithium base 3 lubricating grease when leaves factory.


★ After electric cylinder has run for 300 hours, refill the lubricating grease. Refueling frequency, per 2000hours one time as usual, it is determined on basis of the operating environment and day-to-day operational time.


★ Refueling method: open the filler hole on the shell of electric cylinder, turn the screw to find the filler hole on the screw nut and refuel lubricating grease.



★ Requirement for lubricating grease:GB7324-1994 general lithium base 3 lubricating grease.
