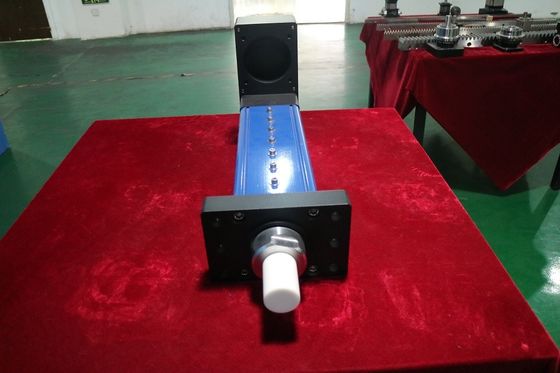

Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force

  • Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force
  • Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force
  • Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force
  • Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force
  • Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force
Place of Origin China
Brand Name TJ
Certification ISO9001:2008,CE
Model Number TJE135
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3-4 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 800 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminium Color Standard：navy Blue&silvery,others Can Be Customized
Speed Up To 500mm/s Repeatability ±0.01mm
Stroke 50~1200mm Output Force Up To 50KN
Motor Connection Type Linear/parallel Internal Anti-rotation With/without
Screw Lead 10,20,50mm Load Connection Type Male,female,U-bolt,ball Head Hinge And Customized
High Light

electric hydraulic cylinder system

,

Grating Ruler Electric Linear Servo Actuators

,

50KN Linear Servo Actuator
Leave a Message
Product Description

High Precision Repeatability:±0.01mm Servo Linear Actuator,Electric Cylinder With Grating Ruler,ISO 14001:2004

1. Electrical Servo Cylinder Drive Torque



And Power Selection Table









Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3 1.5 2.2 3
Motor Rated Torque [N.M] 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55 4.77 7 9.55
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 3.30 4.85 6.62 4.96 7.28 9.92 9.91 14.55 19.85 16.52 24.26 30 30 30 30
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-330 0-330 0-220 0-165 0-110 0-100 0-65 0-100 0-30



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 10
Motor Power [KW] 1.5 2.2 3       1.5 2.2 3 1.5 2.2 3 1.5 2.2 3
Motor Rated Torque [N.M] 4.77 7 9.55       4.77 7 9.55 4.77 7 9.55 4.77 7 9.55
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 3.30 4.85 6.62       9.91 14.55 19.85 16.52 24.26 30 30 30 30
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-330       0-110 0-100 0-65 0-100 0-30



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27 3.97 6.97 10.91 7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-500 0-444 0-330 0-220 0-200 0-130 0-100 0-65



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 20
Motor Power [KW] 3 3.5 5.5       3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25       9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27       7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500     0-330 0-220 0-200 0-130 0-100 0-65



Motor connection Parallel (belt drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 50
Motor Power [KW] 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 1.06 1.85 2.91 1.59 2.78 4.37 3.17 5.56 8.73 5.29 9.26 14.56 10.58 18.52 29.11
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500 0-500 0-500 0-500 0-330 0-250 0-165



Motor connection Linear (coupling direct drive)
Reduction ratio 1 1.5 3 5 10
Screw Lead [mm] 50
Motor Power [KW] 3 3.5 5.5       3 3.5 5.5 3 3.5 5.5 3 3.5 5.5
Motor Rated Torque [N.M] 9.55 16.7 26.25       9.55 16.7 26.25 9.55 16.7 26.25 9.55 16.7 26.25
Motor Rated Speed [r/min] 3000 3000 3000       3000 3000 3000 3000 3000 3000 3000 3000 3000
Cylinder Rated Force [KN] 2.65 4.65 7.27       7.94 13.94 21.82 13.23 23.23 36.36 26.46 46.45 50
Cylinder Max. Force [KN] 50
Cylinder Speed [mm/s] 0-500   0-500 0-500 0-330 0-250 0-165















2. Applications





1) Military equipment: radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system, actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.

2) Special equipment: industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.

3) Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.

This type is especially suitable for :
servo pressing, motor assembly production line and you can also purchase our servo pressing software together.



Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force 0



Long Working Life Ball Screw Servo Actuator With Grating Ruler High Force 1













3. Construction Types





(1) Parallel& Linear

Linear:connect motor and ball screw directly by coupling

Parallel:Using synchronous belt and gear drive to connect motor and screw



(2) Comparison

Accuracy :Linear > Parallel

Parallel is more convenient for customer to mount





4. FAQ







Questions Answers
How much is your minimum order quantity? 1 piece.We have confidence that you are satisfied with our production.
What's the price of the product? The price is based on the size,specification and accessories. You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.

Which conturies and regions do your products export to?



 Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.

Could you offer us free samples?





Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.




I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?

I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?
A: First of all, thank you very much for your trust and using our cylinder, I think the main reason is the screw inside, after about 8000 working hours, you’d better replace it with a new screw to ensure the accuracy.
The reference formula:
L10=(Ca/Fm)3×L
★ L10: The life of the electric cylinder,unit: Km

★ Fm: Average load of electric cylinder,unit: Kn

★ Ca: Screw nut basic dynamic load, unit: Kn

(can be detected by screw samples)

★ L: Screw lead,unit: mm
