Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly

Good quality Linear Electric Cylinder for sales
Good quality Linear Electric Cylinder for sales
I'm Online Chat Now

Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly

China Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly supplier
Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly supplier Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly supplier Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly supplier Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly supplier

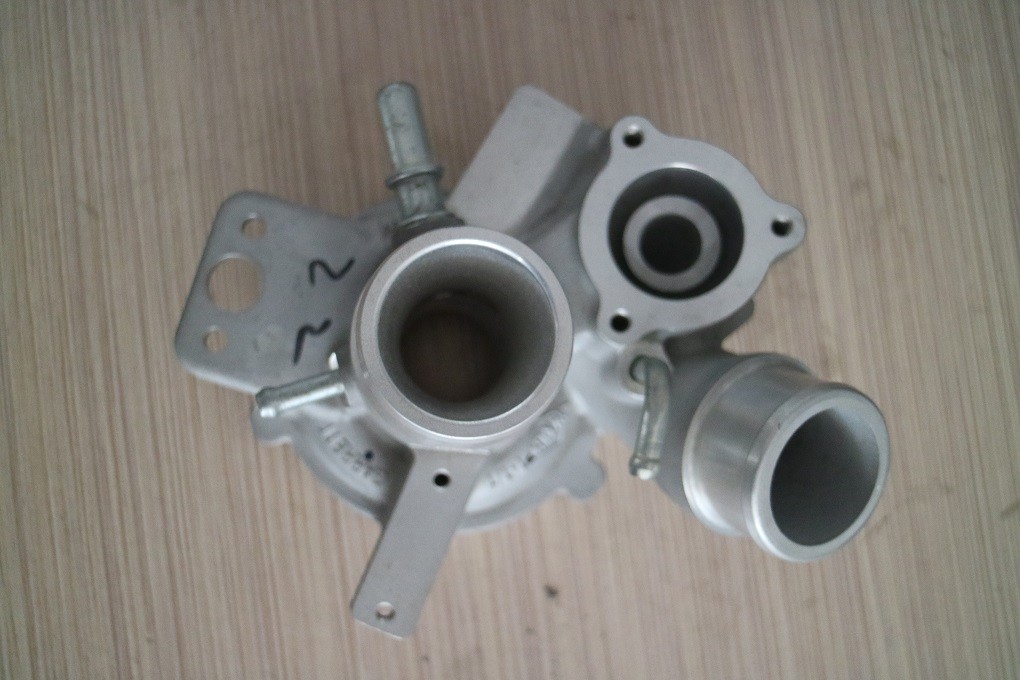

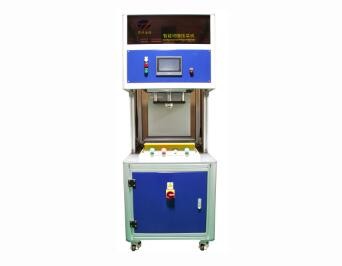

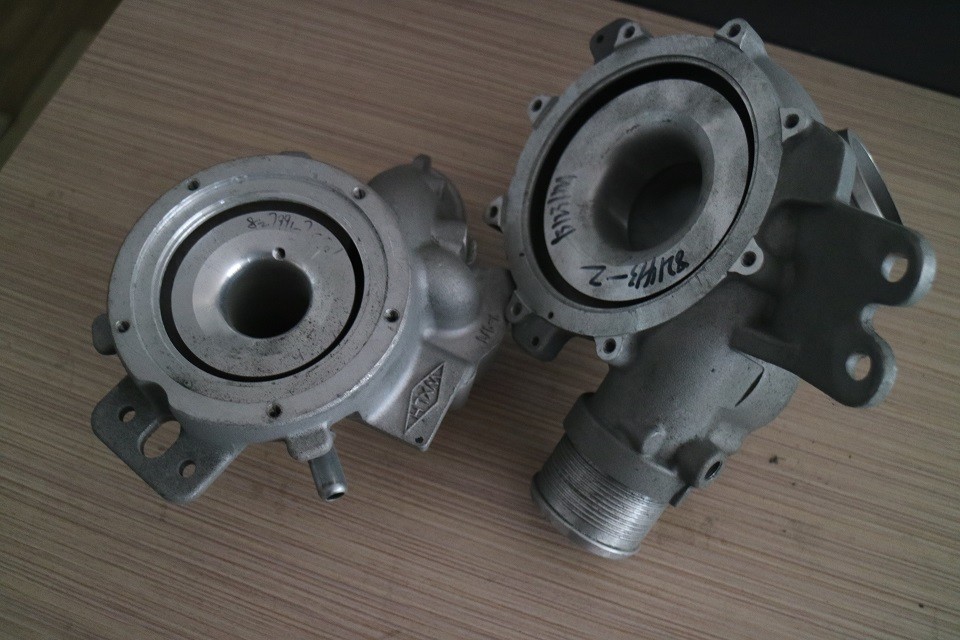

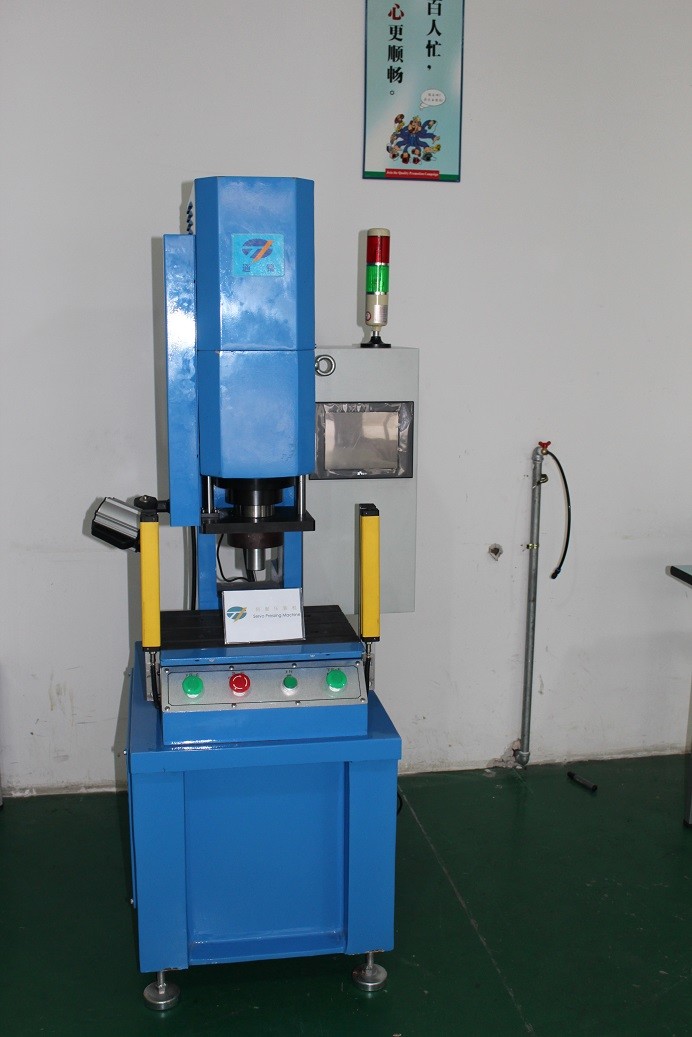

Large Image :  Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: CE
Model Number: TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: non wooden box
Delivery Time: 6~8 weeks
Payment Terms: T/T,30% payment in advance,70% before delivery
Supply Ability: 20 pcs per month
Contact Now
Detailed Product Description
Machine Model: C-type/four-column Type/desktop Type Control Forms: Touch Screen Type/computer Type
Pressure Range: 0.1~250KN Max. Effective Stroke: 500mm
Pressing Mounting Speed: 0~35mm/s Fast Forward/return Speed: 0~100mm/s
Max. Dwell Time: 3000s Repeatablity: ±0.01

auto precision compensation servo pressing machine for automobile water pump pressing,max. pressure 250KN







Brief Introduction















1. Technology Principle:



★The machine is driven by servo motor,achieving the pressure assembly and pressure displacement measurement function by output force of high precision ball screw.

★Precise force sensor and encoder inside can measure the velocity ,pressure and position accurately.The exclusive control software can control pressing mounting force and velocity,stop position,dwell time and so on. to make sure the CNC management during the whole process.









2. Basic Operation:



★Teaching mode:relevant parameters can be set

★Operation mode:press the button,pressing machine would run with the setting parameters(as shown in the curve below)

★External control mode: the machine can receive the instructions via external I/O ports to work

★Editing function:

(1)allows multiple setups to control pressing mounting speed and stop position during the whole process

(2)realize the application of setting judgement window and incremental control etc.









3. Control Software



★Setup:allows to edit working program and set judgement condition

★data sampling program:can download the data during the whole process and save it in PC

















Main Features







1. Diverse pressing mounting modes

--meet high precision production and quality control requirements

★Servo pressing machine can control pressing mounting speed,position and pressure accurately.Set lots of pressing programs including constant pressing speed,precise stop position,precise stop force,precise pressing displacement stop etc. working modes which can meet 2 or more sections pressing mounting working requirements easily.Within the stroke,we can set any stop position precisely and don’t need to use any expensive precision mould to make sure the pressing precision.







2. Online pressing quality control

--meet quality control and data management during the whole process

★After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.
★With the function of checking the position upon bearing force to test whether it works and the direction is right or not.
★With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judge whether it can satisfy the set quality control conditions or not.
★With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.







3. Automatic precision compensation

--meet the the precise assembly requirement under the special operating condition

★The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.







4. Environmental,energy-efficient,safe and low operating cost
★The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.
★Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.

















Frame Diagram













Automobile Water Pump Servo Press Machine 250KN Pressure Eco - Friendly











































Function Application













1. Control pressing mounting assembly size precisely
★Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.







2. Control pressing mounting stop position precisely
★The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.
★Set precise stop position and detect stop pressure.







3. Control pressing mounting time and pressure
★Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.It is widely used in the bonding operation and the ultrasonic welding.







4. Control pressing mounting stop force precisely
★The encapsulation of aluminium casing needs precise force and displacement control.Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.



























Parameters Table













Items/Type Unit

TJ-SP

-05





Maximum value KN 5

Allowance

range

KN 0.5-5

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 200

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s



0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 0.75
Voltage Tri-phase V 380/220












Items/Type Unit

TJ-SP

-100









Pressure

range







Maximum value KN 100

Allowance

range

KN 10-100

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 500

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s







0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 7.5
Voltage Tri-phase V 380/220






★Only for reference.The stroke is optional,specific parameters are subject to the agreement.















Contact Details
Suzhou Tongjin Precision Industry Co., Ltd

Contact Person: Sales Manager

Send your inquiry directly to us (0 / 3000)
