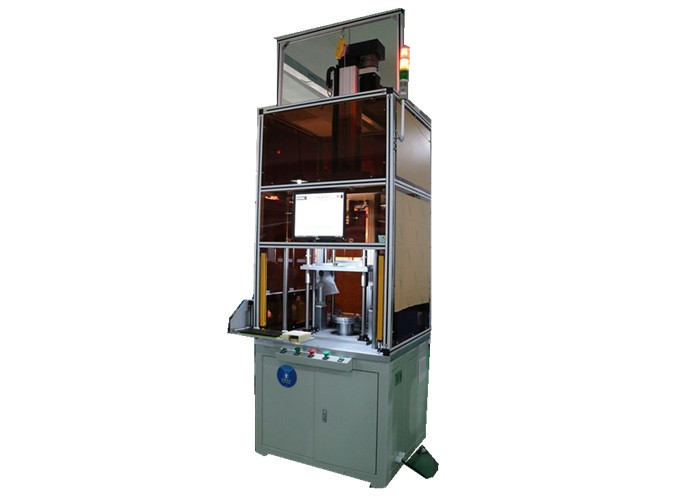

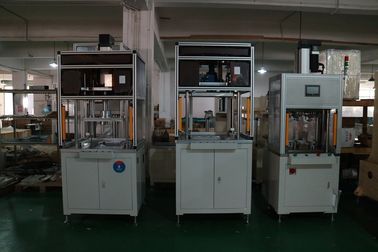

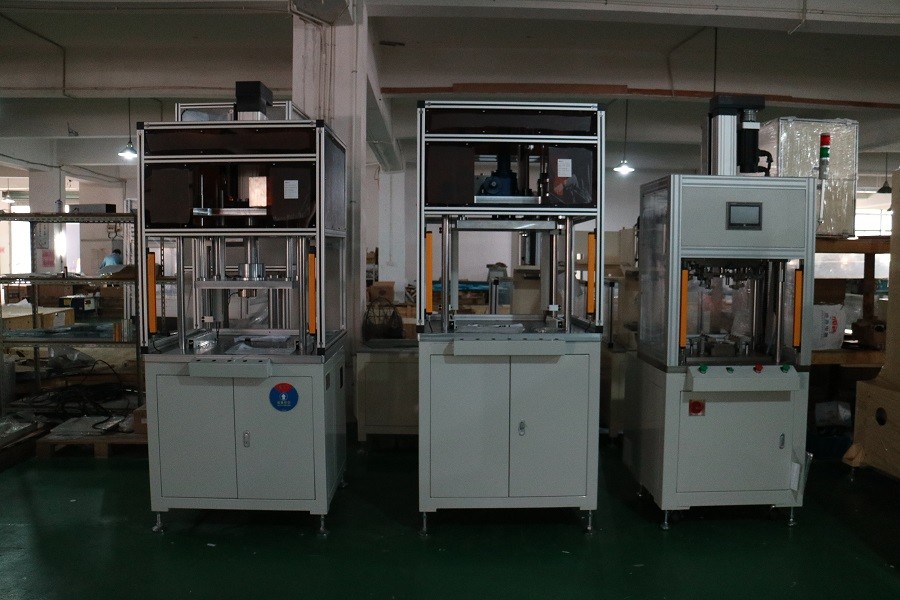

Multiple Pressing Modes Servo Press Machine For Pin / Sleeve Pressing

Place of Origin China
Brand Name TJ
Certification CE
Model Number TJ-SP-01,05,10,20,30,50,70,100,150,200,250,300
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details non wooden box
Delivery Time 6~8 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 20 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Model C-type/four-column Type/desktop Type Control Forms Touch Screen Type/computer Type
Pressure Range 0.1~250KN Max. Effective Stroke 500mm
Pressing Mounting Speed 0~35mm/s Fast Forward/return Speed 0~100mm/s
Max. Dwell Time 3000s Repeatablity ±0.01
High Light

servo press 150

,

power press machine

,

Multiple Pressing Modes Servo Press Machine

Leave a Message

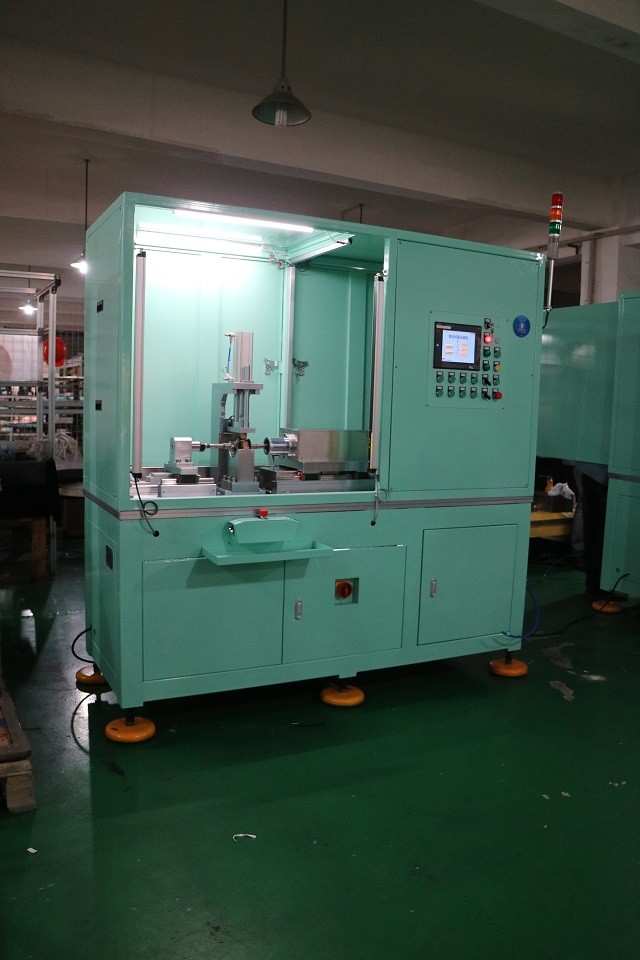

Product Description



online quality test servo pressing machine for pin/sleeve pressing with multiple pressing modes





Main Features

















1. Diverse pressing mounting modes

--meet high precision production and quality control requirements



1)



Servo pressing machine can control pressing mounting speed,position and pressure accurately.



2)



Set lots of pressing programs including constant pressing speed,precise stop position,precise stop force,precise pressing displacement stop etc. working modes which can meet 2 or more sections pressing mounting working requirements easily.



3)



Within the stroke,we can set any stop position precisely and don’t need to use any expensive precision mould to make sure the pressing precision.











2. Online pressing quality control

--meet quality control and data management during the whole process



1)



After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.



2)



With the function of checking the position upon bearing force to test whether it works and the direction is right or not.



3)



With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judg1e whether it can satisfy the set quality control conditions or not.



4)



With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.













3. Automatic precision compensation

--meet the the precise assembly requirement under the special operating condition







The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.













4. Environmental,energy-efficient,safe and low operating cost



1)



The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.



2)



Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.



























Dimensions









Multiple Pressing Modes Servo Press Machine For Pin / Sleeve Pressing 0







Model Stroke(mm) D(mm) S(mm) L2(mm) W2(mm) H2(mm) L1(mm) W1(mm) H1(mm)
TJ-SP-10 200 150 300 350 300 770 670 750 1695
TJ-SP-20 200 150 300 350 300 770 670 750 1715
TJ-SP-30 200 200 400 450 400 770 770 900 1910
TJ-SP-50 200 200 400 450 400 770 770 950 1958
TJ-SP-70 200 250 400 550 500 770 870 1100 2095
TJ-SP-100 200 300 400 650 600 770 970 1200 2180









★Only for reference.Specific parameters are subject to the agreement.


























Function Application











1. Control pressing mounting assembly size precisely



1)



Servo pressing mounting machine can test the pressure precisely according to the set pressed depth and compensate workpiece size tolerance to make sure the precision.



2)



It can also set pressure and displacement quality judgement region at the same time and detect online to ensure the product pressing mounting 100% qualified.





2. Control pressing mounting stop position precisely



1)



The guide wheels is assembled between 2 positioning pallets.The pallets need to be mounted precisely during the assembly to ensure the size.



2)



Set precise stop position and detect stop pressure.





3. Control pressing mounting time and pressure



1)



Servo pressing machine can conduct precise regular time and pressure operation to ensure the safe and reliable bond.



2)



It is widely used in the bonding operation and the ultrasonic welding.





4. Control pressing mounting stop force precisely



1)



The encapsulation of aluminium casing needs precise force and displacement control.



2)



Set the pressure accurately and control the stop position to avoid the motor being damaged by pressure.









































Parameters Table











Items/Type Unit

TJ-SP

-01

TJ-SP

-05

TJ-SP

-10

TJ-SP

-20

TJ-SP

-30

TJ-SP

-50





Maximum value KN 1 5 10 20 30 50

Allowance

range

KN 0.1-1 0.5-5 1-10 2-20 3-30 5-50

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 200 200 200 200 250 350

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35

Fast forward/

return



mm/s



0-100

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 0.4 0.75 1.5 2.2 3.5 5.5
Voltage Tri-phase V 380/220












Items/Type Unit

TJ-SP

-70

TJ-SP

-100

TJ-SP

-150

TJ-SP

-200

TJ-SP

-250

TJ-SP

-300









Pressure

range







Maximum value KN 70 100 150 200 250 300

Allowance

range

KN 7-70 10-100 15-150 20-200 25-250 30-300

Minimum adjustable

unit



N



1

Minimum

detection

value



0.2% of the maximum pressure





Lead

Maximun

value

mm 350 500 500 500 500 500

Minimum adjustable

unit



mm



0.01







Speed

Press

mounting

mm/s 0-35 0-35 0-30 0-25 0-20 0-15

Fast forward/

return



mm/s



0-100



0-100



0-100



0-50



0-50



0-30

Minimum adjustable

unit



mm/s



0.01



Dwell

time

Maximum

vaule

S 3000

Minimum adjustable

unit



S



0.1

Repeatability mm ±0.01
Power kw 7.5 7.5 7.5 7.5 11 11
Voltage Tri-phase V 380/220






★Only for reference.The stroke is optional,specific parameters are subject to the agreement.





































FAQ









Q:How much is your minimum order quantity?

A:1 piece.



Q:What's the price of the product?

A:The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.



Q:Which countries and regions do your products export to?

A:France,Germany,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for motor,automobile components,bearing pressing mounting etc.By the way,many customers replace pneumatic and hydraulic pressing machines with our servo pressing machines.



Q:Can we use our own software and only buy the hardware from you?

A:Yes,of course.We will communicate with our skilled technicians to ensure the software and pressing machine do the cooperative work successfully.
