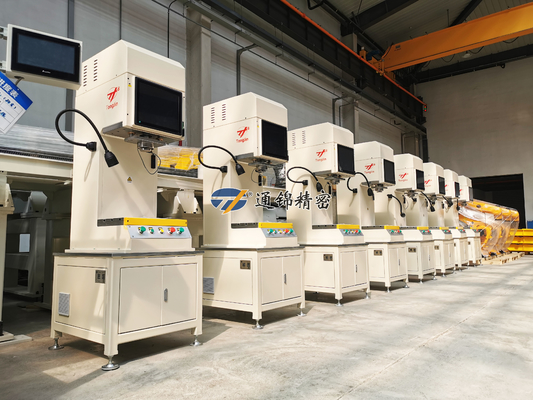

auto precision compensation servo pressing machine for automobile water pump pressing,max. pressure 250KN





Main Features











1. Diverse pressing mounting modes

--meet high precision production and quality control requirements



★Servo pressing machine can control pressing mounting speed,position and pressure accurately.Set lots of pressing programs including constant pressing speed,precise stop position,precise stop force,precise pressing displacement stop etc. working modes which can meet 2 or more sections pressing mounting working requirements easily.Within the stroke,we can set any stop position precisely and don’t need to use any expensive precision mould to make sure the pressing precision.







2. Online pressing quality control

--meet quality control and data management during the whole process



1) After the operation,all the setting,result data and press displacement curve can be shown on the interface of the pressing machine.It can control interference fit quality efficiently,realize the working data traceability management,detect and remove bad products to avoid more losses.It can also help to optimize the technical parameters and designs at the same time.



2) With the function of checking the position upon bearing force to test whether it works and the direction is right or not.



3 )With the function of detecting the pressure and sampling other pressure values(max. value ,incremental value etc.)in any position of the pressing mounting displacement range to judge whether it can satisfy the set quality control conditions or not.



4) With the function of detecting pressure and position in the stop position to judge whether it can satisfy the set quality control condition in the stop position.









3. Automatic precision compensation

--meet the the precise assembly requirement under the special operating condition



The servo pressing machine has unique solutions:software automatic compensation,system dynamic compensation and external trigger stop function.

Environmental,energy-efficient,safe and low operating cost



1) The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.



2) Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.









4. Environmental,energy-efficient,safe and low operating cost



★The AC servo motor actuating device provides clean working environment which satisfies the special requirements of different clean workshops.



★Compared with pneumatic and hydraulic pressure,servo pressing mounting machine save about 80% energy,meet international environmental standard ISO14000.







Dimensions

















Model	Stroke(mm)	D(mm)	S(mm)	L2(mm)	W2(mm)	H2(mm)	L1(mm)	W1(mm)	H1(mm)
TJ-SP-10	200	150	300	350	300	770	670	750	1695
TJ-SP-20	200	150	300	350	300	770	670	750	1715
TJ-SP-30	200	200	400	450	400	770	770	900	1910
TJ-SP-50	200	200	400	450	400	770	770	950	1958
TJ-SP-70	200	250	400	550	500	770	870	1100	2095
TJ-SP-100	200	300	400	650	600	770	970	1200	2180







★Only for reference.Specific parameters are subject to the agreement.

































Comparison









Compared with hydraulic/pneumatic pressing mounting machines,servo machines have many obvious advantages.





	servo	hydraulic	pneumatic
pressure range	0.1~400KN	200~5000KN	1~20KN
pressure precision	0.2 % F.S	2%F.S	2%F.S
repeatability	0.01mm	0.02mm	0.02mm
max. speed	250 mm/s	30 mm/s	50 mm/s
working life	10 million times	10 years (need maintenance)	5-10 years(need maintenance)
stroke	10-500 mm	200-600 mm	10-100 mm
energy consumption	energy saving	high consumption	high consumption
maintenance	easy&seldom	hard&often	often
environmental nature	non-pollution	much pollution	much noise











































Parameters Table















Items/Type		Unit	TJ-SP -05
	Maximum value	KN	5
	Allowance range	KN	0.5-5
	Minimum adjustable unit	N	1
	Minimum detection value	0.2% of the maximum pressure
Lead	Maximun value	mm	200
	Minimum adjustable unit	mm	0.01
Speed	Press mounting	mm/s	0-35
	Fast forward/ return	mm/s	0-100
	Minimum adjustable unit	mm/s	0.01
Dwell time	Maximum vaule	S	3000
	Minimum adjustable unit	S	0.1
Repeatability		mm	±0.01
Power		kw	0.75
Voltage	Tri-phase	V	380/220











Items/Type		Unit	TJ-SP -100
Pressure range	Maximum value	KN	100
	Allowance range	KN	10-100
	Minimum adjustable unit	N	1
	Minimum detection value	0.2% of the maximum pressure
Lead	Maximun value	mm	500
	Minimum adjustable unit	mm	0.01
Speed	Press mounting	mm/s	0-35
	Fast forward/ return	mm/s	0-100
	Minimum adjustable unit	mm/s	0.01
Dwell time	Maximum vaule	S	3000
	Minimum adjustable unit	S	0.1
Repeatability		mm	±0.01
Power		kw	7.5
Voltage	Tri-phase	V	380/220





★Only for reference.The stroke is optional,specific parameters are subject to the agreement.
