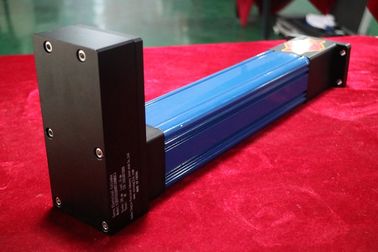

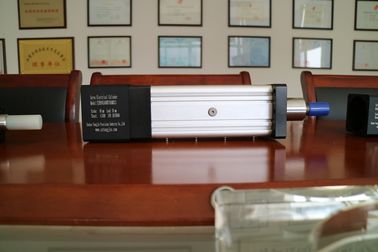

Compact Structure Linear Actuator With Servo Drive,Ball Screw High Speed Standard Electric Cylinder

  • Compact Structure Linear Actuator With Servo Drive,Ball Screw High Speed Standard Electric Cylinder
  • Compact Structure Linear Actuator With Servo Drive,Ball Screw High Speed Standard Electric Cylinder
  • Compact Structure Linear Actuator With Servo Drive,Ball Screw High Speed Standard Electric Cylinder
Place of Origin China Suzhou
Brand Name TJ
Certification ISO9001:2008,CE
Model Number TJE065,TJE075,TJE095
Minimum Order Quantity 1 pcs
Price negotiable,400 USD ~ 50,000 USD
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3-4 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 1000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stroke 50~1500mm Output Force Up To 100KN
Speed Up To 300mm/s Operating Ambient Temperature -20~80℃ In General
Operating Life 100,000 Km In General Material Aluminium Shell(normal) & Steel Shell(special)
Power Electric Repeatability ± 0.01mm
High Light

Screw Type Compact Linear Actuator

,

Linear Servo Actuator Compact Structure

,

100KN Linear Servo Actuator
Leave a Message
Product Description







How to choose the model





Example:TJE075 S300 B R 08 B M C 2 P11 O/C N/P



TJE075—Series No.



TJE040:44×44mm

TJE065:64×64mm

TJE075:75×75mm

TJE095:93×93mm

TJE110:111×111mm

TJE135:134×134mm

S300—Effective Stroke



TJE040:50-200mm

TJE065:50-250mm

TJE075:50-600mm

TJE095:50-800mm

TJE110:50-1000mm

TJE135:50-1200mm

B—Screw Type



A:Acme Screw

B:Ball Screw

C:Roller Screw


R—Anti-rotation



R:With

T:Without(TJE040 always without this function )



08—Screw Lead



TJE040:4mm

TJE065:4, 5, 10, 16,20mm

TJE075:4, 5, 10, 20, 40mm

TJE095:4, 5, 6, 8, 10, 25mm

TJE110:5, 6, 8, 10, 20, 32mm

TJE135:10, 20, 50mm

B—Motor Mounting Type


A:Liner

B:Parallel

M—Cylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized



C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

2—Number Of Limit Switches



(Default is normally open NPN switch)

O/C—Limit Switches



O:Normally Open

C:Normally Close



N/P—Sensing Type



N:NPN

P:PNP









Mark:

1)In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2)The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.









Applications





★ Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



★ Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



★ Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

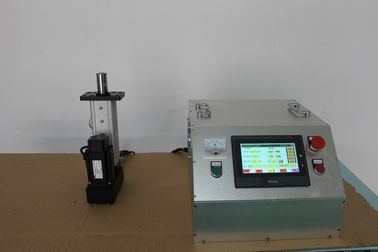

servo pressing, motor assembly production line,and you can also purchase our servo pressing software together.







FAQ

Q:How much is your minimum order quantity?

A:1 piece.We have confidence that you are satisfied with our production.



Q:What's the price of the product?

A:The price is based on the size,specification and accessories.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.



Q:Which conturies and regions do your products export to?

A:Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders.



Q:Could you offer us free samples?

A:Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund.



Q: I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?
A: First of all, thank you very much for your trust and using our cylinder, I think the main reason is the screw inside, after about 8000 working hours, you’d better replace it with a new screw to ensure the accuracy.
The reference formula:
L10=(Ca/Fm)3×L
★ L10: The life of the electric cylinder,unit: Km

★ Fm: Average load of electric cylinder,unit: Kn

★ Ca: Screw nut basic dynamic load, unit: Kn

(can be detected by screw samples)

★ L: Screw lead,unit: mm

Tags:

electric rotary actuator

electric linear servo actuators

electric hydraulic cylinder system
