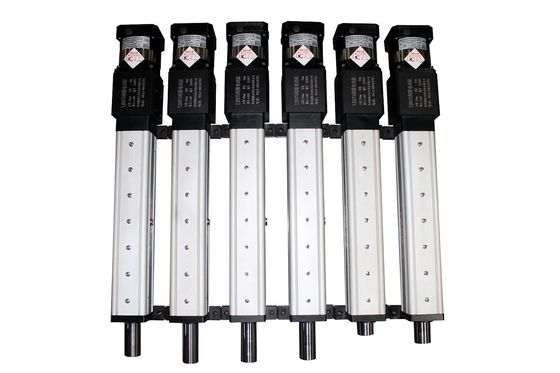

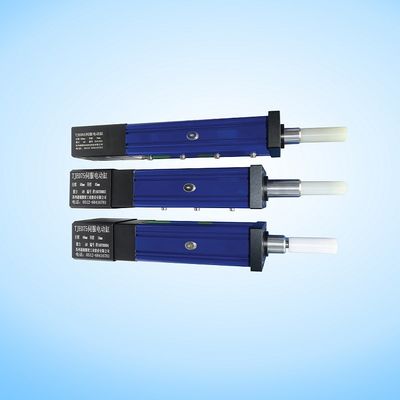

220V Al Profile Standard Model Electric Cylinder With Control System , Factory Outlet In Stock
|Place of Origin||China|
|Minimum Order Quantity||1 pcs|
|Packaging Details||external packing:carton or non wooden box;cushion packing:EPE foam|
|Delivery Time||3-4 weeks|
|Payment Terms||T/T,30% payment in advance,70% before delivery|
|Supply Ability||800 pcs per month|
|Stroke||50~800 Mm||Load||≤ 50,000 N|
|Speed||≤1000 Mm/s||Repeatability||± 0.01mm|
|Basic Weight||3.5 Kg||Motor Connection Type||Linear/parallel/customized|
|Motor Output||0.1KW - 5.5KW||Screw Lead||4mm,5mm,8mm,10mm,20mm,40mm|
220V Servo Electric Cylinder,
Al Profile Servo Electric Cylinder,
Less Noise Servo Electric Cylinder
220V Standrad Al profiles Servo Electric Cylinder
It is also called Servo Electric Cylinder,a kind of actuator that achieves linear reciprocating motion through screw.It transforms the rotation motion of the servo motor into linear motion.
Servo linear actuator can transform the optimal advantages of servo motors(precise rotational speed control, precise rotation number control and precise torque control) into accurate speed control, accurate position control and precise thrust control.
As a new energy-saving transmission product, electric cylinder undoubtedly has more advantages in energy using and pollution control.
STEP 1 :Accuracy & environmental condition
Check the basic conditions used in the application
STEP 2: Required space
Check the available space in the application and select the installation options: linear type,parallel type or bare cylinder.
STEP 3: MAX axial force required
Check the axial force to select the servo motor and gearbox(if necessary).
STEP 4: MAX speed
Check the required speed to select the screw lead.
STEP 5: Required stroke
Select the required stroke from a list of standard stroke.If the required stroke is not listed: define the length of the available stroke at a minimum of 10 mm.Note the value of the maximum possible travel of the selected model.
STEP 6: Lateral force
Determine the lateral force of the application.The new series of cylinders are allowed to bear some lateral force.Please communicate with us if you need to bear the lateral force in your application.
STEP 7 :Motor mounting flange
Select the appropriate motor mounting flange, linear or parallel.
STEP 8: The push-rod load form
Selects the electric cylinder push-rod end for load connection.
We provide complete system including driver, motor and gearbox to match the electric cylinder!
1. Compact structure and small dimension.
2. High rigidity, low inertness and fast response.
3. High reliability and long operating life.
4. Energy saving&less noise.
5. Convenient assembly and use,simple maintenance.
