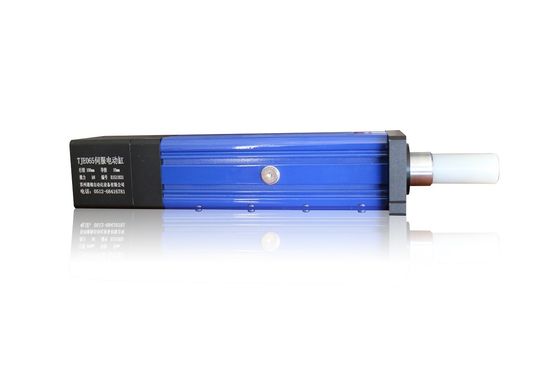

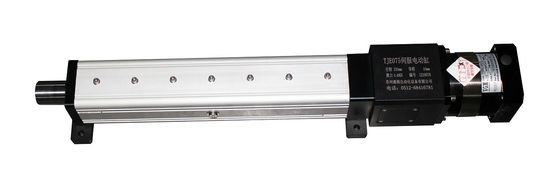

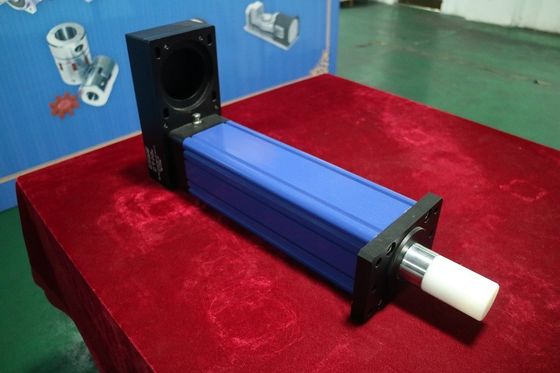

Best Seller 220V Al Profile Standard Linear Actuator In Stock , Match With Servo Motor
| Place of Origin | China |
|---|---|
| Brand Name | TJ |
| Certification | ISO9001:2008,CE |
| Model Number | TJE040,065,075,095,110,135 |
| Minimum Order Quantity | 1 pcs |
| Price | 150~2,500 USD |
| Packaging Details | external packing:carton or non wooden box;cushion packing:EPE foam |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T,30% payment in advance,70% before delivery |
| Supply Ability | 800 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stroke | 50~800 Mm | Load | ≤ 50,000 N |
|---|---|---|---|
| Speed | ≤1000 Mm/s | Repeatability | ± 0.01mm |
| Basic Weight | 3.5 Kg | Motor Connection Type | Linear/parallel/customized |
| Motor Output | 0.1KW - 5.5KW | Screw Lead | 4mm,5mm,8mm,10mm,20mm,40mm |
| Highlight | Servo Motor Linear Electric Cylinder,Al Profile Standard Linear Actuator,Linear Electric Cylinder 220V |
||
Product Description
220V Standrad Al profiles Servo Linear Actuator
1. About Our Products
It is also called Servo Electric Cylinder,a kind of actuator that achieves linear reciprocating motion through screw.It transforms the rotation motion of the servo motor into linear motion.
Servo linear actuator can transform the optimal advantages of servo motors(precise rotational speed control, precise rotation number control and precise torque control) into accurate speed control, accurate position control and precise thrust control.
As a new energy-saving transmission product, electric cylinder undoubtedly has more advantages in energy using and pollution control.
2. Structure diagrams
3. Product Model Definition
Example: TJER160 S300 B R 05 A M C 10 05 0 P11 O/C N/P
| TJER160—Series No. TJER160 TJER190 TJER220 TJER250 |
M—Cylinder Mounting Type M1:Double side mount M2:Side turnnion mount M3:Front flange mount M4:Rear flange mount M5:Rear clevis mount M6:Rear shaft mount MX:Customized |
| S300—Effective Stroke TJER160:50~1500mm TJER190:50~2000mm TJER220:50~2500mm TJER250:50~3000mm |
C —Load Connection Type C1:Male C2:Female C3:U-bolt C4:Ball head hinge CX:Customized |
| B—Screw Type A:Acme Screw B:Ball Screw C:Roller Screw |
10—Power 01:100W 02:200W 04:400W 08:750W 10:1000W 20:2000W 30:3000W |
| R—Anti-rotation R:With T:Without |
05—Reduction Ratio 03:Three-to-one 05:Five-to-one 10:Ten-to-one 20:Twenty-to-one |
| 05—Screw Lead TJER160:10,20mm TJER190:10,20mm TJER220:10,20mm TJER250:10,20mm |
2—Number Of Limit Switches (Default is normally open NPN switch) |
| A—Motor Mounting Type A:Liner B:Parallel |
O/C—Limit Switches O:Normally Open C:Normally Close |
| N/P—Sensing Type N:NPN P:PNP |
Mark:
1) In order to ensure the effective stroke, two ends need to be reserved 5mm space.
2) The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.
4. Application Field
Military Equipment:Radar, missile erecting support,swaying platform of armored car, cabin door open on warship/plane etc, height adjustment of seat, weapon servo system, lifting stand , height adjustment of artillery on the tank etc.
Special Equipment: Automatic equipment, logistics transmission, elevating platform, leaning adjustment, valve control, coordinates manipulator, mechanical device, CT gamma, food and pharmaceuticals industry, numerial control, textile device etc.
