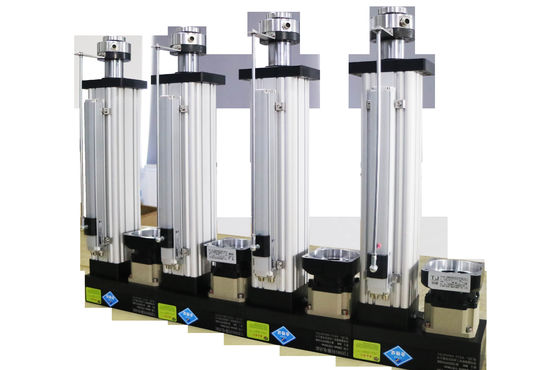

50 - 3000N Linear Electric Cylinder With 200 - 3000mm Stroke Length

Place of Origin made in china suzhou
Brand Name suzhou Tongjin
Model Number TJEN040,050

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Stroke Length 200-3000mm Accuracy ±0.1mm
Material Aluminum Alloy/Stainless Steel Ambient Temperature 0-50℃
Load Capacity 50-3000N Product Name Linear Electric Cylinder
Repeatability ±0.02mm Color Silver/Black
High Light

Stainless Steel Electric Actuator Cylinder


3000N Linear Electric Cylinder


3000mm Stroke Length Linear Electric Cylinder

Leave a Message
Product Description

Product Description:

Linear Electric Cylinder is an innovative product, which combines energy saving and clean, long life, simple operation and maintenance, with strong environmental adaptability. It is an efficient power supply system with convenient to use, and it can power up with either AC or DC.
The stroke length of Linear Electric Cylinder is adjustable from 200 to 3000mm, which makes it suitable for any kinds of working environment. As it is equipped with precision ball screw or planetary roller screw and other precision transmission components, it has a high transmission efficiency that can reach more than 90%.
In addition, Linear Electric Cylinder has a low noise level of ≤70dB, and it comes with a 1-year warranty. This product is aesthetically pleasing, with silver and black colors available to match any decor.
Overall, Linear Electric Cylinder is an ideal choice for users looking for a reliable, efficient and convenient power supply system with strong environmental adaptability.



  • Product Name: Linear Electric Cylinder
  • Power Supply: AC/DC
  • Repeatability: ±0.02mm
  • Material: Aluminum Alloy/Stainless Steel
  • Stroke Length: 200-3000mm
  • Easy to install
  • Simple structure
  • High transmission efficiency
  • Using precision ball screw or planetary roller screw and other precision transmission components of the electric cylinder, transmission efficiency can reach more than 90%.

Technical Parameters:

Property Description
Ambient Temperature 0-50℃
Stroke Length 200-3000mm
Warranty 1 Year
Load Capacity 50-3000N
Voltage 24V/110V/220V/380V
Material Aluminum Alloy/Stainless Steel
Control Mode PLC/Manual/Remote Control
Protection Level IP54
Noise ≤70dB
Color Silver/Black
Main Parts Made of foreign famous brand products
Performance Stable performance, low failure rate and high reliability
Overall Length Short overall length
Synchronous Belt High strength, small gap and long life
Servo Motor Flexible cooperation
Design Method Advanced modular design method
Features Easy installation, Energy saving and clean, long life, simple operation and maintenance, with strong environmental adaptability


The TJEN040/050 Linear Electric Cylinder from Suzhou Tongjin is designed to improve productivity and reliability of a variety of industrial applications. Featuring a low noise of ≤70dB, high accuracy of ±0.1mm, and high speed of 0.1-1000mm/s, this electric cylinder provides great performance and is made of high quality parts from foreign famous brands, ensuring stability, low failure rates and high reliability. Its short overall length makes it suitable for installation in smaller spaces, while the synchronous belt used in the cylinder has high strength, small gap and long life, ensuring high control accuracy.
The servo motor and electric cylinder have a flexible cooperation, making them easy to install and simple to set. With advanced modular design, the TJEN series electric cylinder is energy saving and clean, with a long life, simple operation and maintenance, and strong environmental adaptability.



Linear Electric Cylinder

Brand Name: Suzhou Tongjin
Model Number: TJEN040,050
Place of Origin: Made in China Suzhou
Speed: 0.1-1000mm/s
Repeatability: ±0.02mm
Noise: ≤70dB
Load Capacity: 50-3000N
Warranty: 1 Year

  • Simple Structure, Simple to Set, Small Space, Easy Maintenance
  • Special Installation, Protection, Dust, Moisture High and Low Temperature Environment
  • Marine Waterproof, Explosion-Proof Operation
  • Equipped with Linear Displacement Sensor
  • Matching Pressure Sensor
  • Anti-Turning Mechanism
  • Equipped with Planetary Reducer
  • Motor: Servo Motor, DC Brushless Motor, Stepper Motor, DC Motor, AC Variable Frequency Motor, High and Low Temperature Motor, Explosion-Proof Motor, Custom Motor, etc.

This series of electric cylinder integrates AC servo motor, servo drive, high-precision ball screw, modular design and other technologies, the whole electric cylinder has the characteristics of compact structure, small inertia, fast response, low noise and long life. The servo motor is directly connected with the drive screw of the electric cylinder, so that the encoder of the servo motor can directly feedback the displacement of the moving piston of the electric cylinder, reduce the inertia and clearance of the intermediate link, and improve the control and control accuracy. The servo motor is connected with the electric cylinder as a whole, and can be operated in both directions.


Support and Services:

Technical Support and Service for Linear Electric Cylinder

We provide technical support and service for Linear Electric Cylinder to ensure your product works properly. Our technical support team is knowledgeable in the use of our product and can answer any questions you may have. We also offer service and repair for Linear Electric Cylinder if necessary.
Our technical support staff can be reached by telephone, email, or online chat. They are available to answer any questions you may have about installation, operation, and maintenance of our product. They can also help you troubleshoot any problems you may have with the product.
Our service and repair team is available to diagnose and repair any issues with Linear Electric Cylinder. We can assess the problem and provide a solution quickly and efficiently. We can also provide maintenance and upgrades to ensure our product is working properly.
If you need assistance with Linear Electric Cylinder, please contact us and our technical support team will be glad to help.


Packing and Shipping:

Linear Electric Cylinder Packaging and Shipping:
Linear electric cylinders are typically packaged and shipped in cardboard boxes with bubble wrap and foam cushioning for additional protection. The boxes should be clearly labeled with the product name and shipping address. The product should also be secured in the box with appropriate packaging materials such as packing peanuts or air pillows. The box should then be sealed with clear packing tape.
For larger shipments, a pallet may be used to ship multiple boxes. The pallet should be secured with appropriate wrapping and then strapped or shrink-wrapped. The boxes should be clearly labeled with the product name, shipping address, and the total number of boxes.
