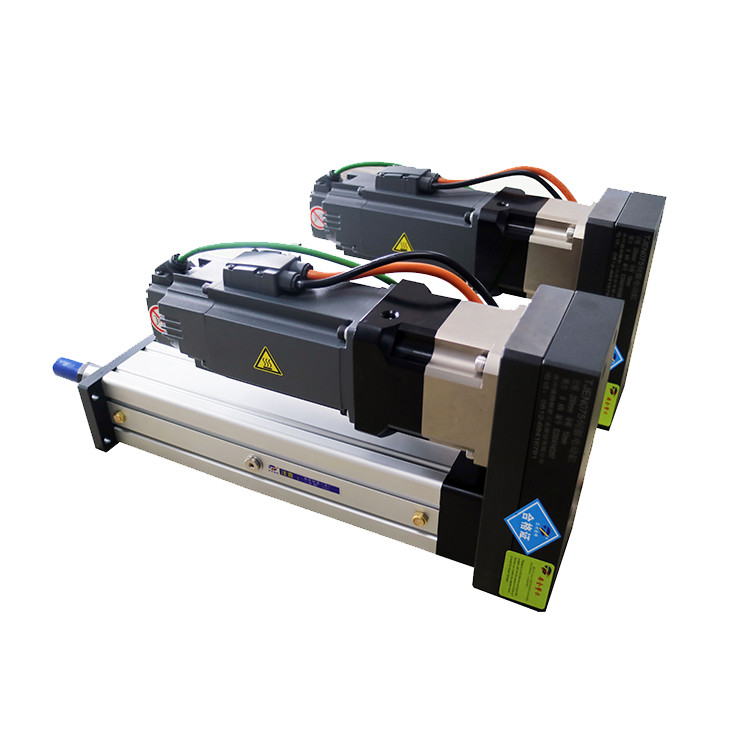

TJE040 Linear / Foldback Electric Cylinder TJE 040

Place of Origin China
Brand Name TJ
Certification ISO9001:2008,CE
Model Number TJE040
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details external packing:carton or non wooden box;cushion packing:EPE foam
Delivery Time 3-4 weeks
Payment Terms T/T,30% payment in advance,70% before delivery
Supply Ability 800 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminium Color Standard:navy Blue&silvery,others Can Be Customized
Speed Up To 300mm/s Repeatability ±0.01mm
Stroke 50~3000mm Output Force Up To 100KN
Motor Connection Type Linear/parallel Internal Anti-rotation With/without
Screw Lead 10,20mm Load Connection Type Male,female,U-bolt,ball Head Hinge And Customized
High Light

TJE040 Electric Cylinder

,

Foldback Linear Electric Cylinder

,

TJE040 Linear Electric Cylinder

Leave a Message
Product Description



1. Operational Principle





Product Name Servo Electric Cylinder Model No. TJE040
Manufacturer TONGJIN PRECISION Product Color As Shown
Product Type Manual/Automatic Whether to customize Customizable

TJE040 Linear / Foldback Electric Cylinder TJE 040 0

2. Product Model Definition







Example: TJER220 S800 B R 05 A M C 20 05 0 P11 O/C N/P



TJER220Series No.


TJER160

TJER190

TJER220

TJER250

S800—Effective Stroke



TJER160:50~1500mm

TJER190:50~2000mm

TJER220:50~2500mm

TJER250:50~3000mm

B—Screw Type


A:Acme Screw

B:Ball Screw

C:Roller Screw

R—Anti-rotation


R:With

T:Without

05Screw Lead
TJER160:10,20mm

TJER190:10,20mm

TJER220:10,20mm

TJER250:10,20mm

A—Motor Mounting Type
A:Liner

B:Parallel

MCylinder Mounting Type



M1:Double side mount

M2:Side turnnion mount

M3:Front flange mount

M4:Rear flange mount

M5:Rear clevis mount

M6:Rear shaft mount

MX:Customized



C —Load Connection Type



C1:Male

C2:Female

C3:U-bolt

C4:Ball head hinge

CX:Customized

20Power



01:100W

02:200W

04:400W

08:750W

10:1000W

20:2000W

30:3000W

05—Reduction Ratio


03:Three-to-one

05:Five-to-one

10:Ten-to-one

20:Twenty-to-one

2—Number Of Limit Switches



(Default is normally open NPN switch)

O/CLimit Switches



O:Normally Open

C:Normally Close



N/PSensing Type



N:NPN

P:PNP







Mark:

1. In order to ensure the effective stroke, two ends need to be reserved 5mm space.

2. The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.

TJE040 Linear / Foldback Electric Cylinder TJE 040 1





3. Electrical Servo Cylinder Drive Torque

Screw specification

1204



Standard motor rated power KW

0.1 0.2



Motor rated torque N·m

0.32 0.64



Rated motor speed r/min

3000 3000



Standard motor rated thrust kN

0.45 0.65



Standard motor rated speed mm/s

200 200



Repeated positioning accuracy mm

±0.01/±0.02



Maximum effective travel mm

500



Maximum load thrust kN

0.65



Maximum expansion speed mm/s

200





Magnetic switch

AL-39DFL-02

2M

Two wire type no contact type normal

AL-39DFBL-02

2M

Two wire type no contact type normally

4. Applications

Application areas Military equipment, experimental and recreational equipment, food and medical machinery and equipment, and other production equipment.





(1) Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.



(2) Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.



(3) Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.



This type is especially suitable for :

servo pressing, motor assembly production line and you can also purchase our servo pressing software together.



5. Why choose us?




1. Compact structure and small dimension.

2. High rigidity, low inertness and fast response.

3. High reliability and long operating life.

4. Energy saving&less noise.

5. Convenient assembly and use,simple maintenance.

6. One years of quality assurance, life - long maintenance service.
