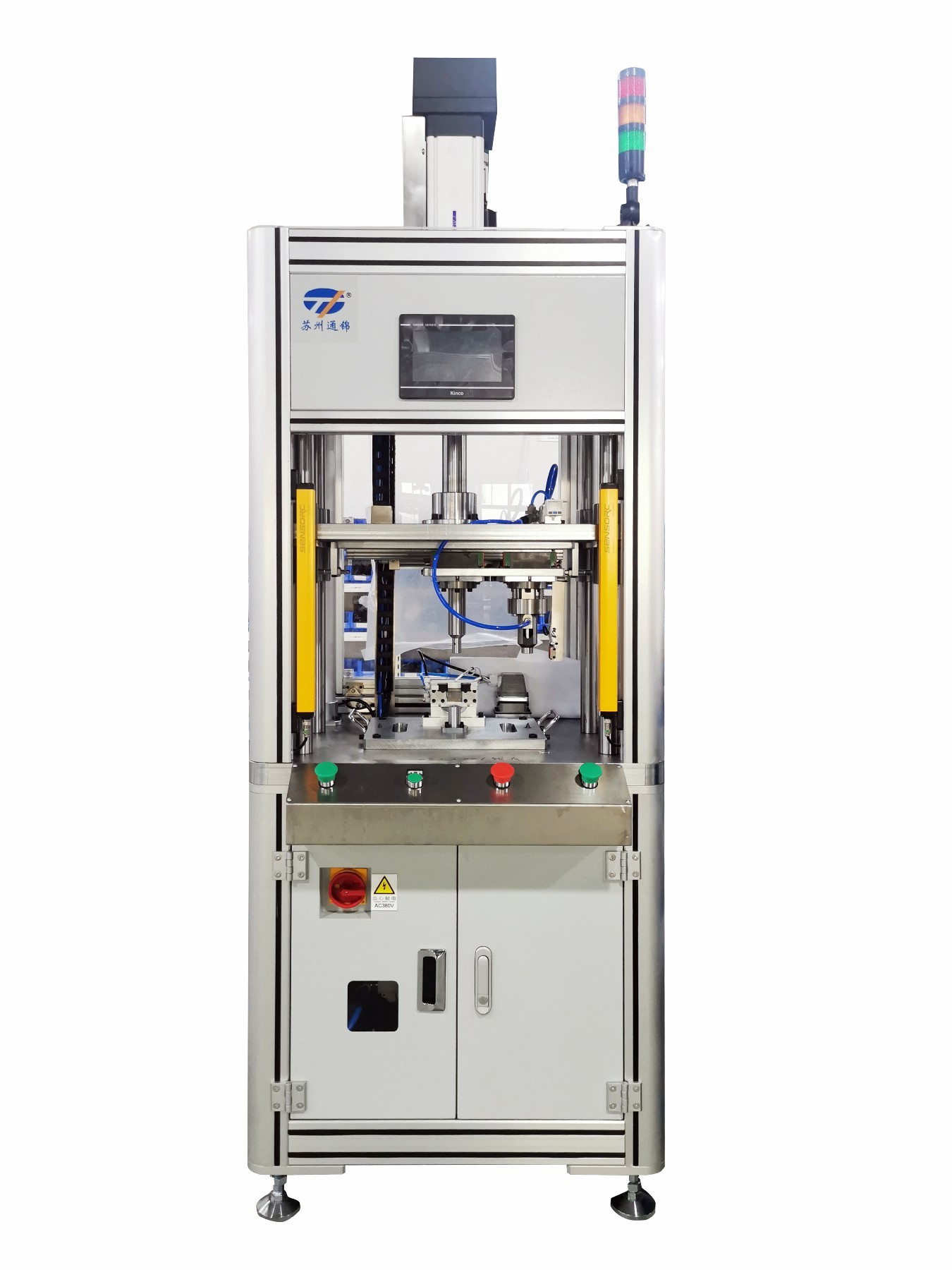

Precision 3-30KN Capacity Servo Electric Press 0.02mm Repeatability

Place of Origin made in china suzhou
Brand Name SERVO PRESS MACHINE
Certification ISO 1400
Model Number TJ-SP -30F
Minimum Order Quantity 1
Packaging Details wooden box
Delivery Time 4 weeks
Payment Terms TT 100% in advance
Supply Ability 500 rer month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Repeatablity ±0.01 Table Size 400x400mm,customed
Capacity 3-30KN Pressure Holding Yes
Shut Height 100-250mm Repeatability 0.02mm
Control System Servo Motor Power Source Electric
High Light

3-30KN servo electric press

,

0.02mm Repeatability servo electric press

,

Precision servo electric press

Leave a Message
Product Description

Product Description:

The control system of the Servo Electric Press is powered by a servo motor, which enables precise control of the press-fit stop force. This feature ensures that the press-fit process is accurate and reliable, which is crucial for various industrial applications. Additionally, the servo motor provides energy-saving benefits, making it an environmentally friendly solution that reduces operating costs.

The Servo Electric Press operates at a temperature range of 5-80°C, making it suitable for use in various environments. It is designed with safety in mind, with safety features that protect operators from harm during operation.

With a force range of 0.5-1000KN, the Servo Electric Press is an ideal solution for various precision assembly operations. It provides precise control over the press-fit stop force, enabling accurate and reliable assembly of components.

Overall, the Servo Electric Press is an environmentally friendly, energy-saving, and cost-effective solution for various precision assembly applications. It provides precise control over press-fit stop force, ensuring accurate and reliable assembly of components while maintaining safety standards.



Features:

  • Product Name: Servo Electric Press
  • Operating Temperature: 5-80°C
  • Pressing Mounting Speed: 0~35mm/s
  • Operation Mode: Manual, Semi-Automatic, Fully Automatic
  • Repeatablity: ±0.01
  • Material Compatibility: Steel, Aluminum, Copper, Brass
  • External position sensors can reach repeatability of 2μm
  • Automatic compensation accuracy
  • On-line press-fit quality inspection


Technical Parameters:

Technical Parameters Values
Material Compatibility Steel, Aluminum, Copper, Brass
Table Size 400x400mm, customed
Shut Height 100-250mm
Power Source Electric
Operation Mode Manual, Semi-Automatic, Fully Automatic
Repeatability ±0.01
Pressure Holding Yes
Pressing Mounting Speed 0~35mm/s
Pressure Adjustment Stepless
Repeatability of Displacement The repeatability of displacement can reach 0.005mm

Additional attributes: Automatic compensation accuracy, Environmental protection, energy saving, safety, and low operating costs



Applications:

The SERVO PRESS MACHINE TJ-SP-30F is perfect for a variety of applications. It is designed with stepless pressure adjustment, ensuring precise control of the press-fit time and pressure. This makes it ideal for scenarios that require accurate and consistent results, such as in the automotive, electronics, and medical industries. The machine model is a four-column type, providing stability and durability during operation.

The SERVO PRESS MACHINE TJ-SP-30F is compatible with a range of materials, including steel, aluminum, copper, and brass. It can operate in temperatures from 5-80°C, making it suitable for various environmental conditions.

One of the key features of the SERVO PRESS MACHINE TJ-SP-30F is its ability to provide precise control of the press-fit stop force. This ensures that the press-fit process is stopped at the exact point needed, preventing damage to the materials being worked on. Additionally, this product offers on-line press-fit quality inspection, allowing for real-time monitoring and adjustments during the press-fit process.

In summary, the SERVO PRESS MACHINE TJ-SP-30F is a versatile and reliable product that can be used in a variety of industries and scenarios. Its precise control of the press-fit time and pressure, ability to provide on-line press-fit quality inspection, and precise control of the press-fit stop force make it a top choice for those who require accurate and consistent results in their press-fit processes.
