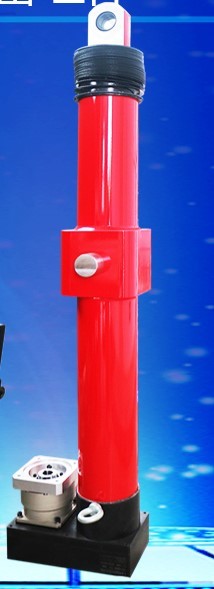

Industry Customized Electric Cylinder / Servo Actuator
| Place of Origin | made in china suzhou |
|---|---|
| Brand Name | suzhou Tongjin |
| Certification | ISO 1400 |
| Model Number | TJEN110 |
| Minimum Order Quantity | 1 |
| Packaging Details | wooden box |
| Delivery Time | 4 weeks |
| Payment Terms | TT 100% in advance |
| Supply Ability | 500 rer month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Servo Electric Cylinder | Position Detection | Encoder |
|---|---|---|---|
| Highlight | Industry servo electric cylinder,Customized servo electric cylinder,Industry Servo actuator |
||
Product Description
Electric cylinders withstand the following natural conditions:
1. Wind: maximum working the following natural conditions:
2. Dust weather, dust, containing chemical components, there is rain erosion.
3. Relative humidity: maximum 100%
4. Outdoor temperature: -55℃ to 80 ℃, exposed to direct sunlight.
5. Atmospheric corrosivity category (ISO12944-2), C5-M very high (marine)
In normal use, the component should be able to withstand up to 3G vibration in the up and down direction;
Summary: The electric cylinder can be used normally in harsh environments, with high and low temperature characteristics and three protection characteristics.
Features:
| Serial number | Performance classification | Item | Performance objective |
| 1 | Athletic performance | Rated thrust | 200KN |
| 2 | Maximum load thrust | 250KN | |
| 3 | Maximum expansion speed | 50mm/s | |
| 4 | Effective stroke | 1100mm | |
| 5 | Overload multiple of electric push cylinder | 1.5 | |
| 6 | Withstand working environment | Operating temperature | -55℃ to 80 ℃ |
| 7 | Relative humidity | >100℃ | |
| 8 | Dust environment | There are dust, chemical components, rain, sun | |
| 9 | Corrosion condition | Atmospheric corrosivity Category (ISO 12944-2) | |
| 10 | Class of protection | No lower than IP65 | |
| 11 | Safety performance | Design life | 25 years |
| 12 | Limit switch | 3 | |
| 13 | Lubrication mode | No grease leakage in horizontal and vertical state |
Summary:
The electric cylinder overload ability is strong, the sealing performance is superior, the double encoder can be configured with double encoder, avoid the accident caused by electrical failure, can detect the load tension parameters in real time, long service life, transmission.
The method adopts gear transmission, heavy-duty screw, low-temperature motor for wind power, low-temperature reducer and heavy-duty bearing to ensure safety and reliability.
