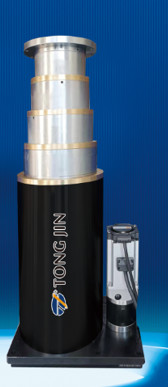

Multi Section Series Servo Electric Cylinder Steel
| Place of Origin | China |
|---|---|
| Brand Name | TJ |
| Certification | ISO9001:2015,CE |
| Model Number | TJED120,160,200 |
| Minimum Order Quantity | 1 pcs |
| Price | negotiate |
| Packaging Details | external packing:carton or non wooden box;cushion packing:EPE foam |
| Delivery Time | 3~4 weeks |
| Payment Terms | T/T,30% payment in advance,70% before delivery |
| Supply Ability | 800 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Multi Section Series Servo Electric Cylinder Steel | Material | Steel |
|---|---|---|---|
| Keyword | Servo Electric Cylinder | ||
| Highlight | Multi Section servo electric cylinder,Steel servo electric cylinder,Steel Multi Section Electric actuator |
||
Product Description
Advantages and characteristics:
1. Multi-section synchronous steady operation
2. Maximum control over effective travel
3. The installation size is small
4. High strength, smooth operation
Product application field:
1. Military equipment: radar, missile erector, special vehicle lifting device, etc.
2. Experimental equipment: simulation platform, six degrees of freedom simulation platform, test bench, wave making machine, etc.
3. It is used for the rear unloading, side unloading and three-way unloading devices of dump trucks and special vehicles used in enginneering and mining.
4. Special equipment: automatic production line, logistics transmission, lifting platform, valve control, coordinate manipulator, CT gamma knife and metallurgical, petroleum, chemical, machinery, transportation, textile, food and other industrie.
Two-section electric cylinder technical parameters
| Electric cylinder type | Repeated positioning accuracy | Motor power KW | Reduction ratio | Effective stroke | Lead of the screw | Rated speed | Rated output | ||
| TJED120 | Rectilinear | ±0.3 |
0.75 |
1:5 | 400-2000 | 5 | 100 | 6.5 | |
| 10 | 200 | 3.3 | |||||||
| Reentrant | ±0.5 | 0.75 | 1:6 | 400-2000 | 5 | 80 | 8 | ||
| 10 | 160 | 4 | |||||||
| TJED160 | Rectilinear | ±0.3 | 1 | 1:20 | 400-2400 | 16 | 27 | 10 | |
| 20 | 33 | 8 | |||||||
| Reentrant | ±0.5 | 1 | 1:20 | 400-2400 | 16 | 27 | 10 | ||
| 20 | 33 | 8 | |||||||
| TJED200 | Rectilinear | ±0.3 | 5 | 1:20 | 400-2800 | 10 | 40 | 33 | |
| 20 | 50 | 26 | |||||||
| Reentrant | ±0.5 | 5 | 1:25 | 400-2800 | 10 | 20 | 67 | ||
| 20 | 40 | 33 | |||||||
Service:
Home delivery
Non-standard customization
Quality assurance
