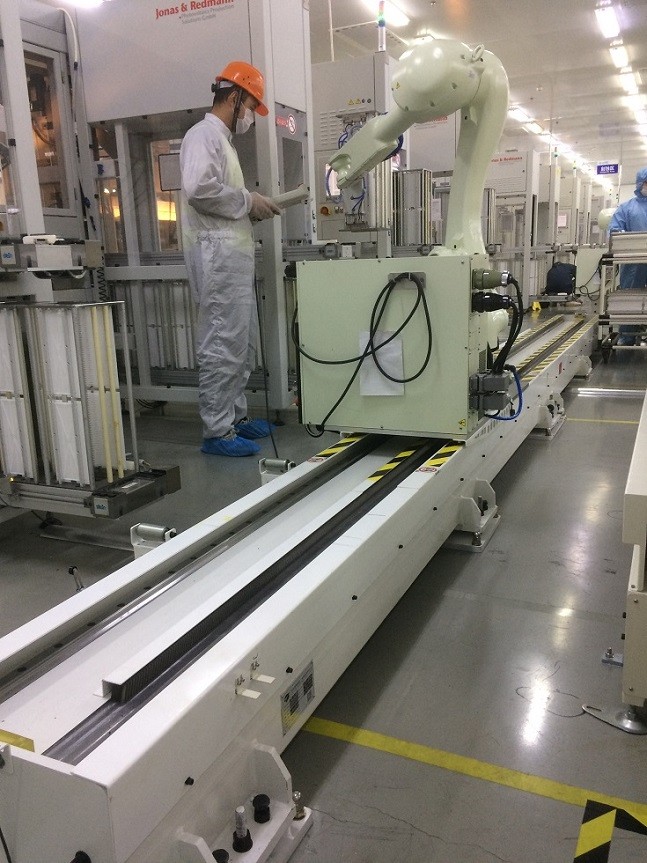

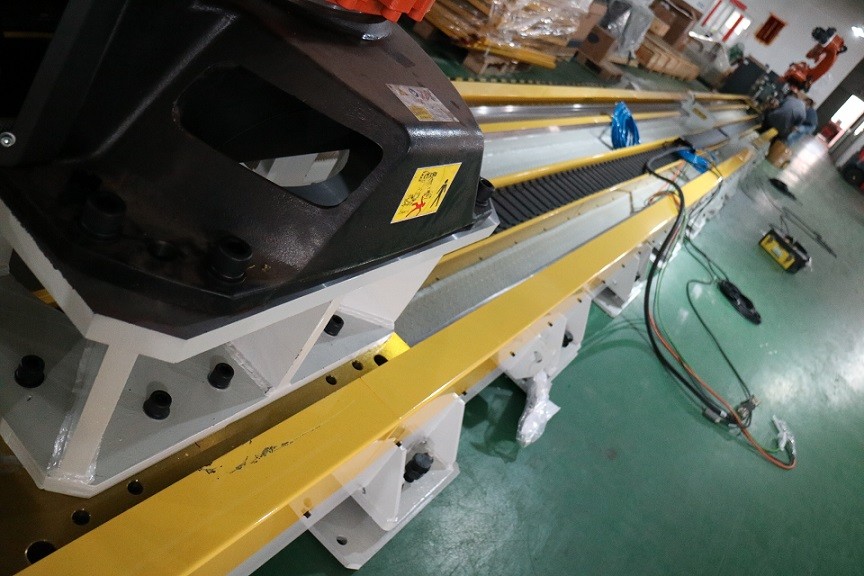

Automatic Robot Linear Track For Loading And Unloading Sheet Metal Cover
| Place of Origin | China |
|---|---|
| Brand Name | TJ |
| Certification | ISO9001:2008,ISO14001:2004 |
| Model Number | TJS XX SXXX VXX AXX LX EX X |
| Minimum Order Quantity | 1 pcs |
| Price | negotiable |
| Packaging Details | non wooden box |
| Delivery Time | 6~8 weeks |
| Payment Terms | T/T,30% payment in advance,70% before delivery |
| Supply Ability | 10 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Repeatability | ±0.1mm | Velocity | ≤3m/s |
|---|---|---|---|
| Load | ≤6t | Accelertaion | ≤5m/s² |
| Stroke | ≤70m | Lubricating System | Manual/automatic |
| Dustproof Modes | Sheet Metal Cover/organ Cover | Drag Chain Material | Engineering Plastics/steel/stainless Steel |
| High Light | robot track system,7th robot axis,6t load Robot Linear Track |
||
Product Description
Fundamental principle
The new robot 7th-axis(robot linear track) consists of a or a set of high-strength structural welding sections, after two times stress relieving and the fine finishing of the foundation bed through the precise CNC gantry milling machine and then combine with the hardening and grinding helical gears and racks, finally through the tight fitting of the servo motor and APEX gear box makes the conveying of the robot more precise, steady, smooth and speedy.
Model definition
①TJS ②05 ③S040 ④V08 ⑤A08 ⑥L1 ⑦E1 ⑧2
| ①TJ 7th - Axis Robot |
③Stroke
S004:0.4m S040:4m A300:70m Select any value within 79mm.
|
⑤Acceleration
A05:0.5m/s² A08:0.8m/s² A10:1.0m/s² A15:1.5m/s²
|
⑦Dustproof modes
E1:sheet metal cover E2:organ cover E3:others
|
|
②Load
0.8:800kg 15:1.5t 30:3t
|
④Speed
V08:0.8m/s A10:1m/s Select any value within 3m/s.
|
⑥Lubricating system
L1:manual L2:automatic L3:others
|
⑧Drag chain
1:engineering plastics 2:steel 3:stainless steel 4:others
|
Key customers
FAQ
Q:What's the price of the product?
A:The price is based on the specification and accessories(servo motor,gearbox,guideway and so on.If you need,we can also send you a copy of customer requirement list.You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer.
Q:Which countries and regions do your products export to?
A:Germany,Italy,Brazil,Mexico,Japan,Iran,France,India etc.Mainly used for vehicle assembly,flame plating,loading and unloading,stacking etc.
Q:Can you also provide us the robot if we want a complete set of processing solution?
A:Yes,sure.we have much experience in system integration.You just tell us your application and the effect you want.By the way,we have a good cooperative relationship with some robot manufacturers such as FANUC,ABB,YASKAWA,Panda,ESTUN,EFORT etc.So we also take advantages in the price of the robots.
No matter you only need robot rail or the whole system,we can both meet your requirements.
